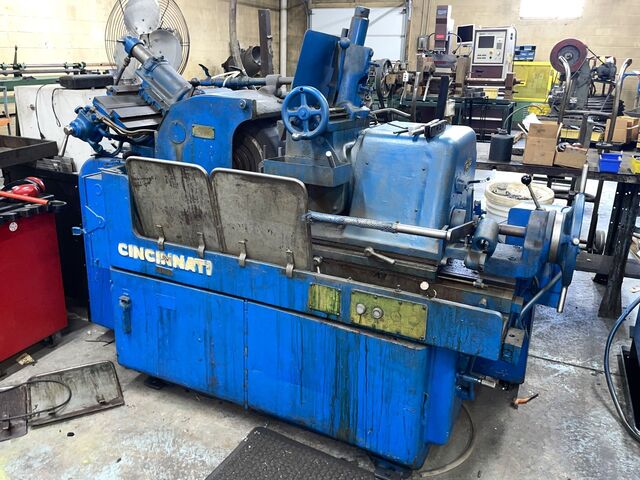

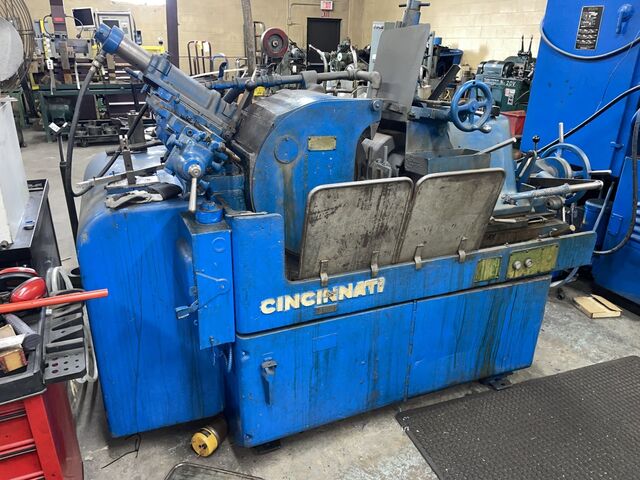

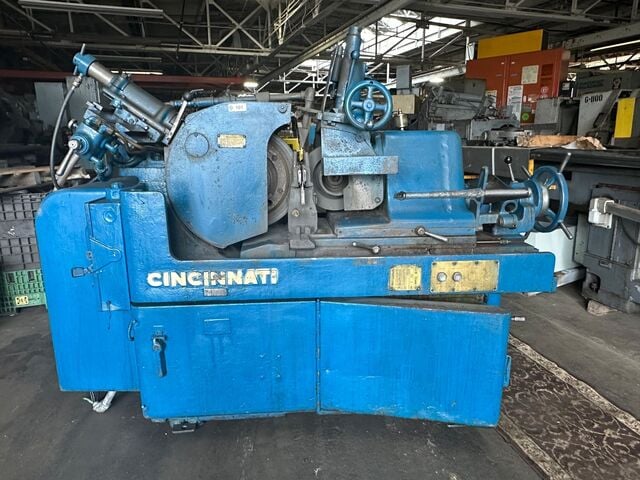

Cincinnati No. 2 Mdl. O-M, centerless grinder, 3.5" work rest, 20" x 12" wheel, 1953

Cincinnati #2OM Centerless Grinder, 20" OD Grinding Wheel, 6" Thrufeed, Cincinnati Lube System
#2 "OM" CINCINNATI CENTERLESS GRINDER

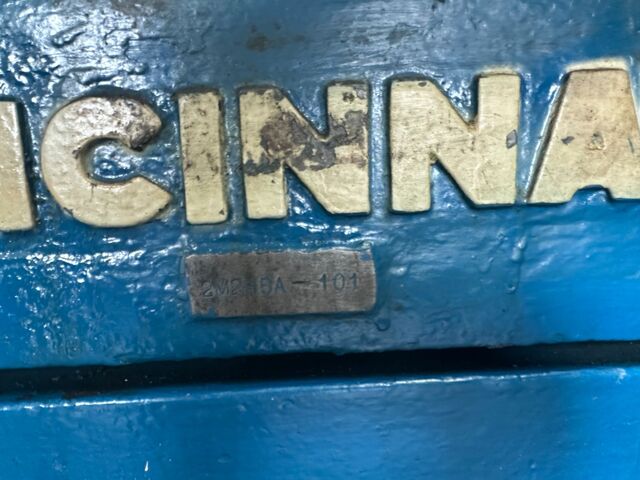

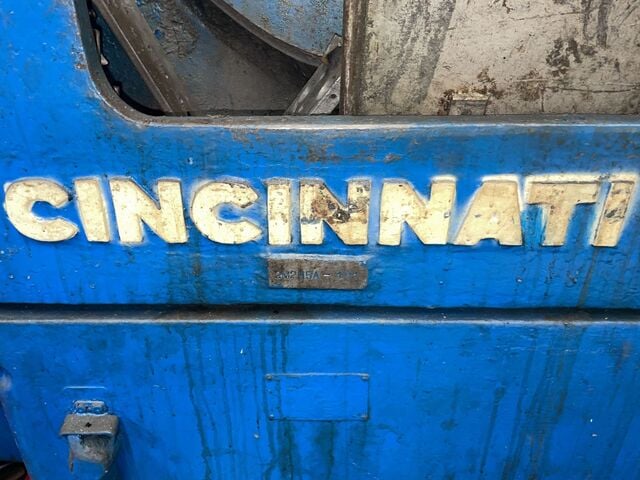

S/N 2M2H5A-101 YEAR: 1953
STANDARD CATALOG SPECIFICATIONS
CAPACITY (Depending on which work rest is ordered,
not included in price)
Standard work rest...................... 1/16" to 3 1/2" dia.
Low thru feed work rest................. 2" to 4 3/4" dia.
Bar work................................ 1/8" to 2" dia. 18" long
GRINDING WHEEL (Not supplied)
Width.............. 4, 6, or 8" Hole............ 12"
Maximum diameter................................... 20"
Minimum diameter................................... 14"
REGULATING WHEEL (Not supplied)
Width.............. 4, 6, or 8" Hole............ 5"
Maximum diameter................................... 12"
Minimum diameter................................... 9"
MOTOR DRIVES
Grinding wheel..................................... 15 HP
Regulating wheel................................... 1 1/2 HP
Hydraulic pump..................................... 1 1/2 HP
Cutting fluid...................................... 1/4 HP
OVERALL DIMENSIONS
Floor space: ...................................... 53" x 86"
Weight............................................. 7,000 lbs.
EQUIPMENT & FEATURES
Filmatic bearings.

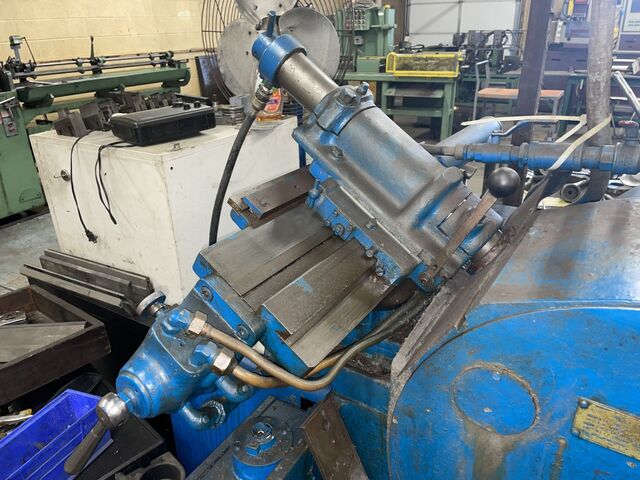

Hydraulic contour truing on grinding wheel.
Hand truing / profile on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.
Specifications are deemed accurate, however, subject to verification or prior sale.
