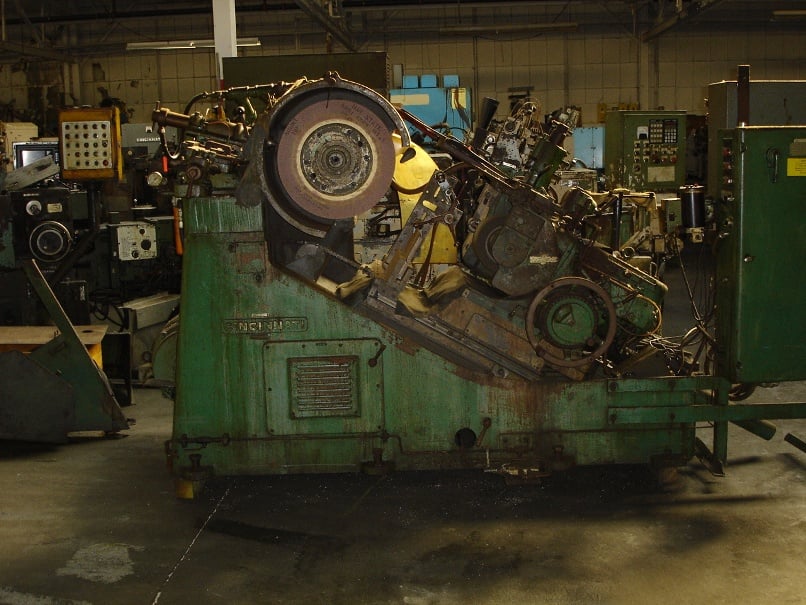

Cincinnati No. 4 Mdl. EA, centerless grinder, 9" diameter Short work capacity, 4" diameter bar, 24" & 14" diameter wheels capacity, 40 HP, 1956

Cincinnati #4EA Centerless Grinder, Short Work 1/2" to 9" Capacity, Bar Work 1/8" to 4" Capacity, 24"x 12"x 12" Wheel
#4 EACINCINNATICENTERLESS GRINDER
S/N 3M4H5D-11
STANDARD CATALOG SPECIFICATIONS
CAPACITY (Depending on which work rest is ordered -
not included in price.)
Short work............................... 1/2 to 9 diameter
Bar work................................. 1/8 to 4 diameter
Ten regulating wheel speeds.............. 7 to 57 RPM
Regulating wheel truing speeds........... 400 RPM
WHEELS (Not supplied)
Grinding.......................24 x 12 hole, up to 12 face
Regulating.....................14 x 5 hole, up to 12 face
MOTOR DRIVES
Grinding wheel........................... 40 HP
Regulating wheel......................... 2 HP
Hydraulic pump........................... 3/4 HP
EQUIPMENT FEATURES
Filmatic bearings.
Hydraulic contour truing on grinding wheel.
Hydraulic truing on regulating wheel.
Variable speed regulating wheel drive.
Wheel mounts for straight side grinding wheel.
Coolant pump and piping.
Specifications are deemed accurate, however, subject to verification or prior sale.
