Click to zoom in
For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!
Description

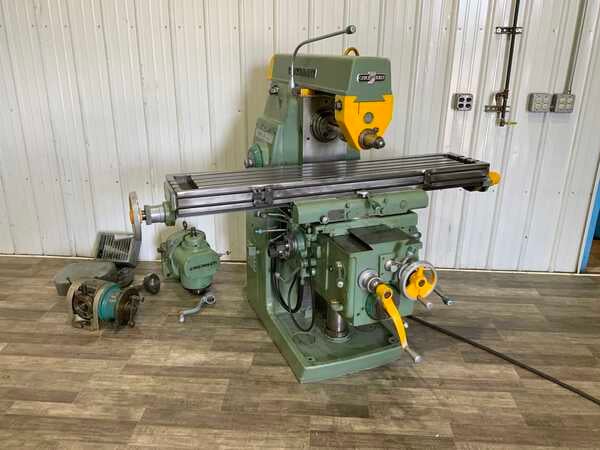

SERIAL ............................ SJ2U55-6
MODEL ............................. CINEL 60 205-12
TABLE AREA (T-SLOTTED) ............ 54-1/2" X 12"
LONGITUDINAL TABLE TRAVEL ......... 28"
CROSS TABLE TRAVEL ................ 12"
VERTICAL TABLE TRAVEL ............. 16"
HORIZONTAL SPINDLE SPEEDS ......... (16) 25 TO 1500 RPM
FEEDS ............................. (16) 1/4 TO 30 IPM
TAPER IN SPINDLE .................. #50 NS
TABLE BACKLASH ELIMINATOR ......... YES
COOLANT ........................... YES
OVER ARM SUPPORT .................. YES
RAPID TRAVERSE .................... YES
RIGHT ANGLE VERTICAL HEAD ......... YES
LOW LEAD ATTACHEMENT .............. WITH CINCINNATI DIVIDING HEAD
MAIN SPINDLE MOTOR ................ 5 HORSEPOWER
Get Your Price from Yoder Machinery Sales!
