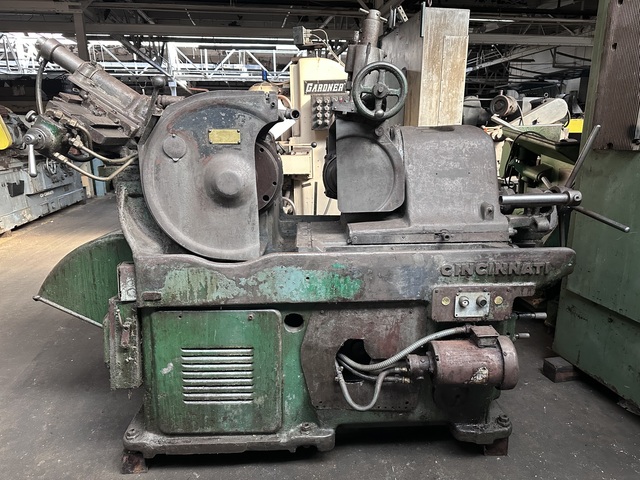

Cincinnati No. 2 Mdl. EA, centerless grinder, 3.5"/4.75" diameter work rest capacity, 20" diameter grinding wheel, 12" diameter x 18' L bar, 15 HP, 1200 RPM

Cincinnati #2EA Centerless Grinder, 20" Grinding Wheel, No Workrest, Missing Flange
#2EA CINCINNATI CENTERLESS GRINDERS
STANDARD CATALOG SPECIFICATIONS
CAPACITY: (Depending on which work rest is ordered -
not included in price)
Standard work rest....................... 1/16 to3 1/2 diameter
Low thru-feed work rest.................. 2 to 43/4 diameter
Bar work......(18' Long)................. 1/8 to2 diameter
GRINDING WHEEL (Not supplied)
4, 6, or 8 Width - 12 Hole
20 Maximum diameter
14 Minimum diameter
Speed - 1200 RPM
REGULATING WHEEL (Not supplied)
4, 6, or 8 Width - 5 Hole
12 Maximum diameter
9 Minimum diameter
Range of speeds - 12 to 300 RPM
MOTOR DRIVES
Grinding wheel........................... 15 HP
Regulating wheel......................... 1 1/2 HP
Hydraulic pump........................... 1 1/2 HP
Cutting fluid............................ 1/4 HP
Floor space.............................. 53 x86
Weight................................... 6,400 lbs.
EQUIPMENT FEATURES
Filmatic bearings
Hydraulic contour truing on grinding wheel
Screw type truing on regulating wheel
Grinding wheel mount for straight side wheel
Regulating wheel mount for straight side wheel
Coolant pump and tank
Cam-out regulating wheel truing attachment available!
Specifications are deemed accurate, however, subject to verification or prior sale.
