For Sale by Hariton Machinery Co Inc
Surplus Record Dealer Since 1971
Alan Hariton
203-36...> Show Seller's Phone Number 203-367-6777 Let the seller know you found their listing on Surplus Record!
Description
| Table Size | 254mm x 1,270mm (10" x 50") |
| Longitudinal Travel | 760mm (30") |
| Cross Travel | 390mm (15 3/8") |
| Vertical Travel | (knee) 380mm (15") |
| Table T-Slots | Quantity 3/ Size 16mm (0.63") |
| Maximum Workpiece Weight | 430 Kg (946 Lbs.) |
| Vertical Spindle Motor | 3 HP |
| Spindle Speeds | 50-4,500 RPM |
| Spindle Taper | R8 |
| Spindle Nose to Table | 40-420mm ( 1 5/8"-16 1/2") |
| Spindle Centerline to Column Surface | 102-652mm (4"-25 5/8") |
| Quill Travel | 127mm (5") |
| Automatic Vertical Feeds ( Per Evolution of Spindle) | 0.04, 0.08,0.14mm ( 0.0015",0.003", 0.006") |
| Head Swivel | R&L 90 Deg./ F&B 45 Deg. |
| Overarm Travel | 550mm (21 5/8") |
| Overarm Swivel | 360 Deg. |
| Weights (Approx.) | 1520 Kg (3,350 Lbs.) |
| Floor Space (O.A. Dim.) | 2000W x 2572D x 2150H mm ( 79" x 101 1/4" x 84 5/8") |
| Electrics | Set to Run in 230 Volts, 3 Phase |
Get Your Price from Hariton Machinery Co Inc!
Buyers Who Viewed This Listing Also Viewed …
Trak #K3-KMX, knee mill, 10" x50" tbl., 3 HP, 32" X, 16" Y5" Z, R8, 60-4200 RPM, KMX K3
Category: CNC Vertical Bed Mills
Seller: Greenway & Associates Ltd
Location: Orange City, IA
Mfr: Trak
Model: K3-KMX
Work lamp.
Sharp #TMV, CNC vertical mill, 10" x50" tbl., 3 HP, 35" X, 16.3" Y, Acu-Rite MillPwr 3-Axis Control, power draw bar, R8, 2009
Category: CNC Vertical Bed Mills
Seller: PM Machines
Location: Santa Ana, CA
Mfr: Sharp
Model: TMV
Year: 2009
Precision ground ball screws with preloaded ballnut assembly • Digital servo drive system for each axis, • 3 axes digital readout, • Safety hand wheel, • Automatic lube system, Programming:, Program in/out, position/drill, mill lines, mill arc, blend (corner radius) Holes (bolt circle, rectangular ...more
Kent USA #BM-3, 3-Axis Bedmill, 10" x50"table, 30" x16"x22"trav, 3 HP, R8, 2022 Our stock number: 7208
Category: CNC Vertical Bed Mills
Seller: AM Metalmaq Inc
Location: Hialeah, FL
Mfr: Kent
Model: #BM-3,
Year: 2022
S:, Rigid spindle/head housing with powerful 3 HP vector drive spindle motor, 80-4500 rpm programmable spindle provides geater range of machining capability, Metal telescopicway cover on front saddle ways enhances durability, X-axis and Y-axis metal hand wheels for manual operation and set ups, Automatic lubrication ...more

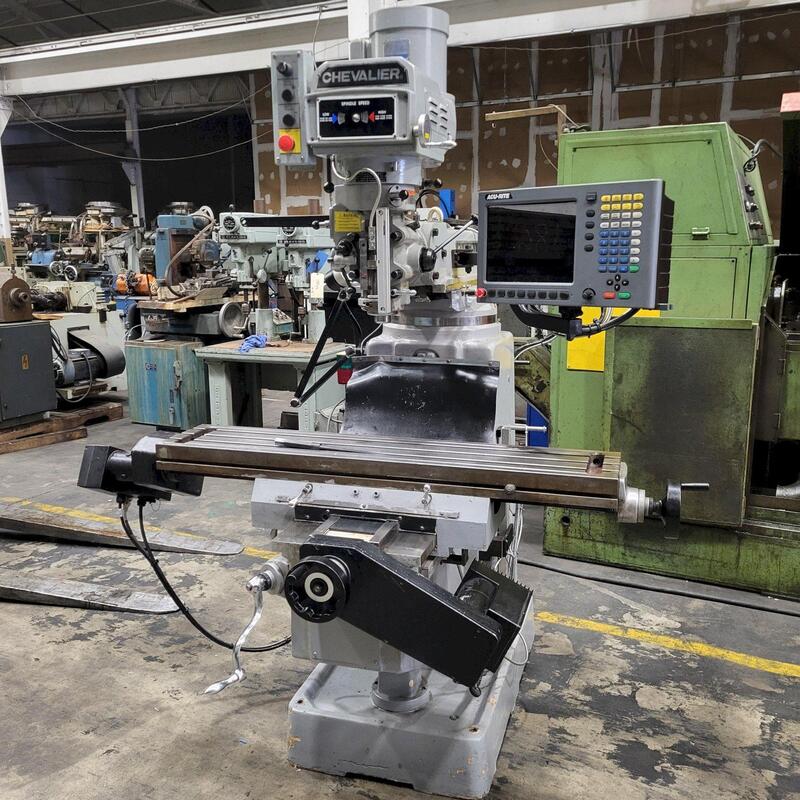

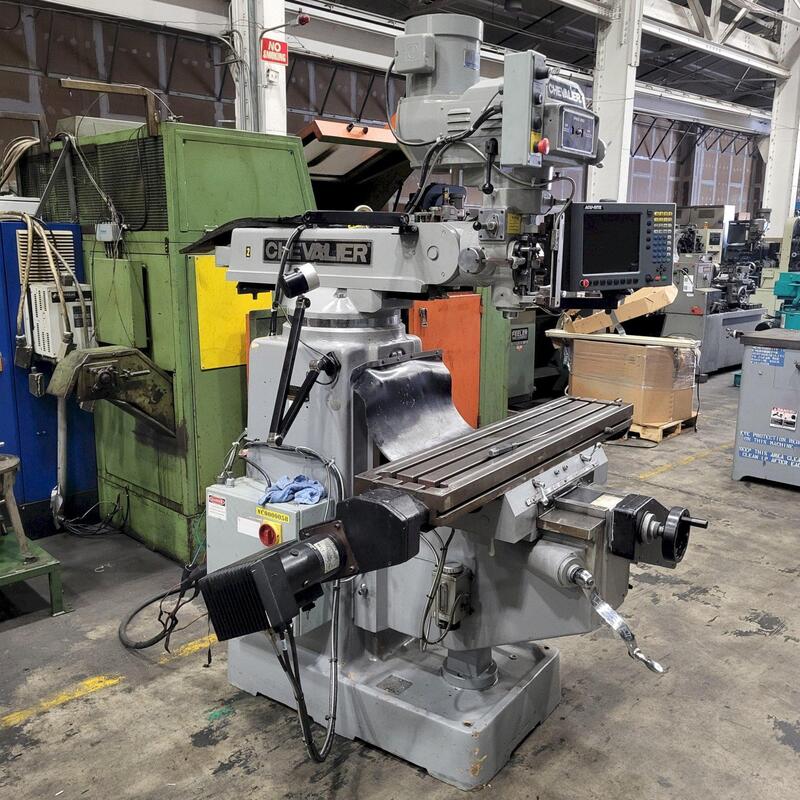

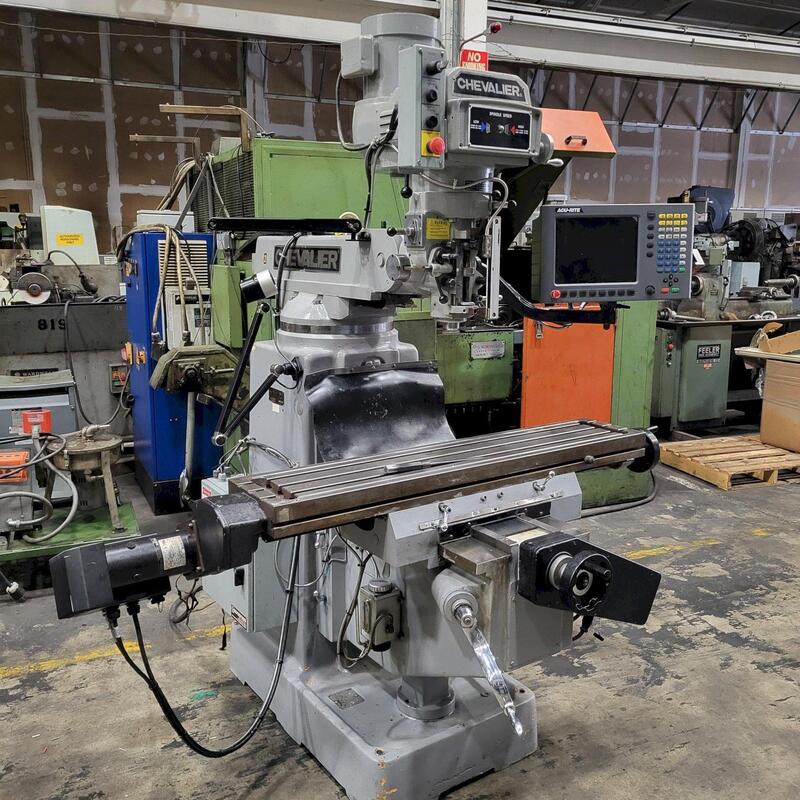

Chevalier #FM-3VK, vertical milling machine, 10" x50" table, 3 HP
