Manufacturer: Chevalier
Model: FSG-1224AD
Year: 1987
Width/Cross: 12.0
Length/Longit.: 24.0
Stock # 18395SR
1 / 3
Click to zoom in
1 / 3
For Sale by Pearl Equipment Co
Surplus Record Dealer Since 1963
Location: PULASKI, TN
Contact Si Culp
Phone Number: 615...> Show Phone Number 615-383-8703
Let the seller know you found their listing on Surplus Record!
Description

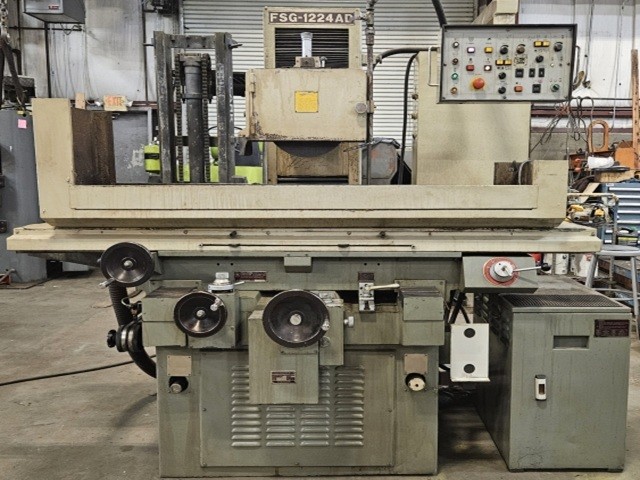

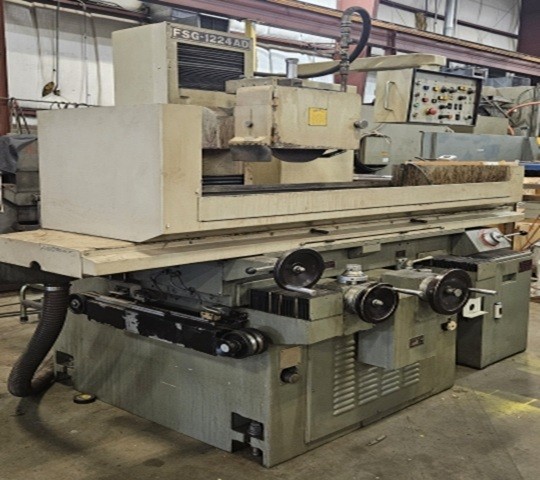

Chevalier 12" x 24" Automatic Surface Grinder
S/N: 36460M, Mfg.: 1987, Stock No: 18395
Model: FSG-1224AD
Grinding Capacity: 12" x 24"
Spindle Centerline to Table Max: 24"
Longitudinal Table Travel: 25-5/8"
Cross Table Travel: 12"
Table Speed Variable: 5 To 25 FPM
Spindle Speed: 3,450 RPM
Grinding Wheel Size: 14" x 2" x 5"
Electro-Magnetic Chuck Size: 11-3/4" x 23-5/8"
Incremental Down Feed: 0.00005" - 0.002"
Automatic Cross Feed: 0.005 IPR
Power Elevation: 8 FPM
Electrics: 240/480 V, 3 PH (Currently Wired 480V)
Spindle Motor: 5 HP
Hydraulic Motor: 2 HP
Equipped With:
3 Axis Auto Feed
Coolant Tank & Pump
Over The Wheel Dresser
Electro-Magnetic Chuck
Overall Size, Approximate: 100" L-R x 60" F-B x 80" H
Weight, Approximate: 5,500 Lbs.
S/N: 36460M, Mfg.: 1987, Stock No: 18395
Model: FSG-1224AD
Grinding Capacity: 12" x 24"
Spindle Centerline to Table Max: 24"
Longitudinal Table Travel: 25-5/8"
Cross Table Travel: 12"
Table Speed Variable: 5 To 25 FPM
Spindle Speed: 3,450 RPM
Grinding Wheel Size: 14" x 2" x 5"
Electro-Magnetic Chuck Size: 11-3/4" x 23-5/8"
Incremental Down Feed: 0.00005" - 0.002"
Automatic Cross Feed: 0.005 IPR
Power Elevation: 8 FPM
Electrics: 240/480 V, 3 PH (Currently Wired 480V)
Spindle Motor: 5 HP
Hydraulic Motor: 2 HP
Equipped With:
3 Axis Auto Feed
Coolant Tank & Pump
Over The Wheel Dresser
Electro-Magnetic Chuck
Overall Size, Approximate: 100" L-R x 60" F-B x 80" H
Weight, Approximate: 5,500 Lbs.
Get Your Price from Pearl Equipment Co!
