Chang Hsing Electric (licensed by Fuji Electric) Molded Case Circuit Breaker SA53 600V

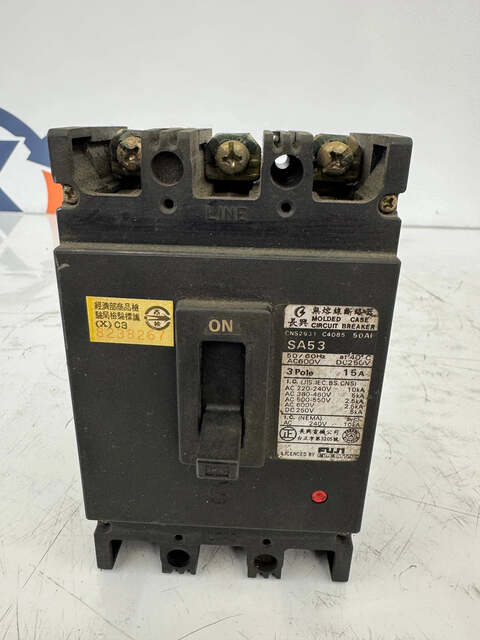

This listing is for a used molded case circuit breaker, model SA53, manufactured by Chang Hsing Electric under license from Fuji Electric. The nameplate identifies the unit as conforming to CNS2931 C4085 standard with a 50AF frame rating. The breaker is a 3 pole, 15 amp unit rated for AC 600V and DC 250V service at 40 degrees C. Frequency rating is 50/60Hz. Interrupting capacity ratings per the nameplate are as follows: 10kA at AC 220V to 240V (JIS, IEC, BS, CNS standards), 5kA at AC 380V to 460V, 2.5kA at AC 500V to 550V, 2.5kA at AC 600V, and 5kA at DC 250V. NEMA interrupting capacity is rated at 10kA at AC 240V. A Taiwan Ministry of Economic Affairs inspection label with number 8238267 is affixed to the front face. The breaker body is molded case construction with standard toggle operator showing LINE and LOAD terminal designations. The toggle handle is visible in the ON position. A push to reset function is present. External housing shows signs of industrial use and soiling.

Stock # 0226-534
