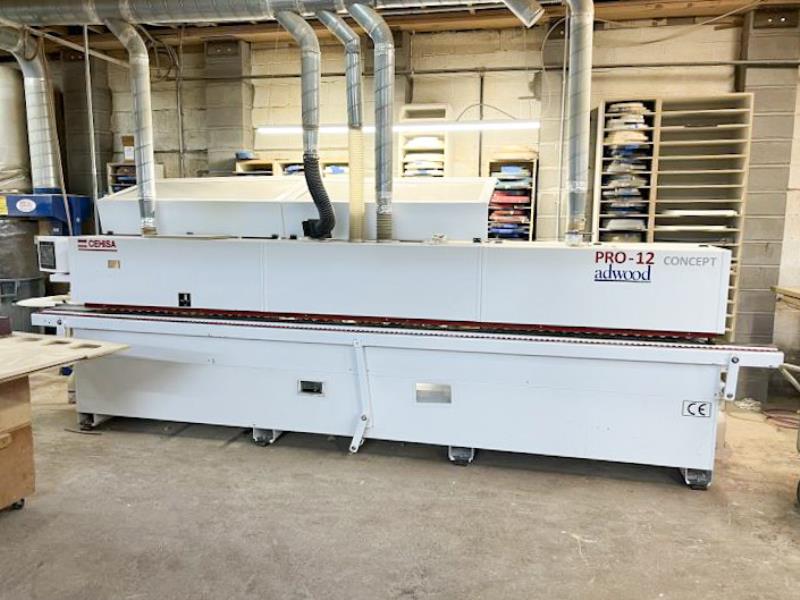

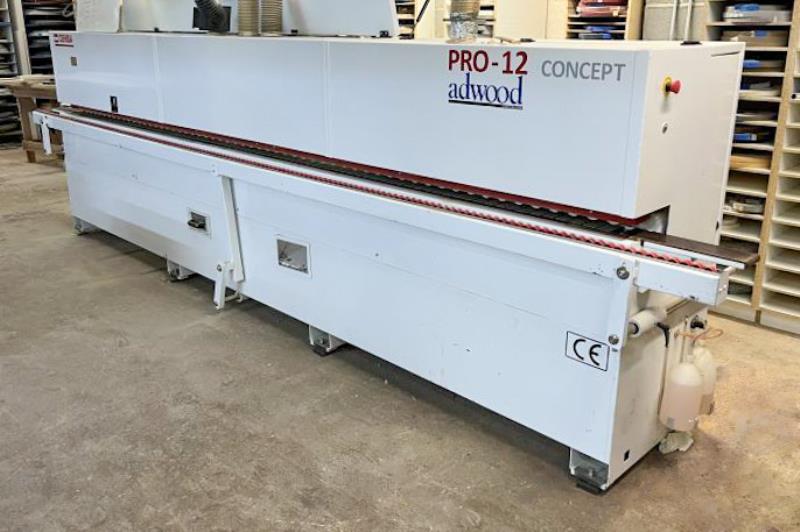

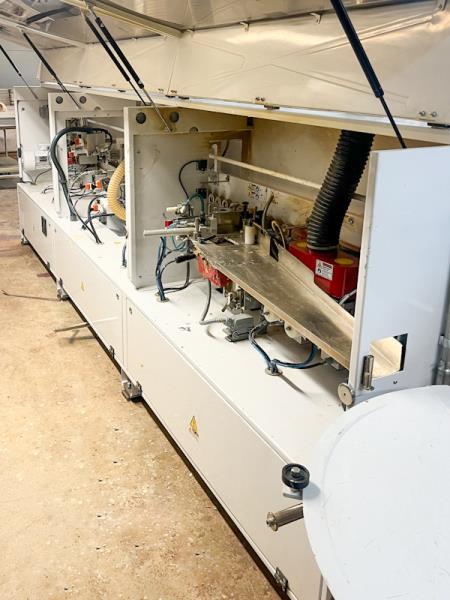

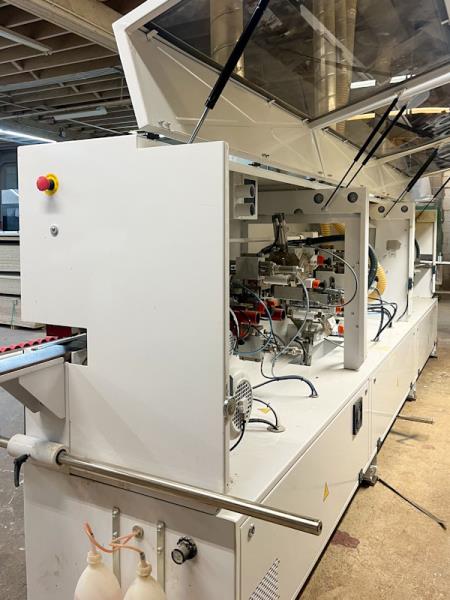

Cehisa #Pro-12-Concept, edgebander w/ pre-mill & corner rounding, PLC Microprocessor Control, 2017

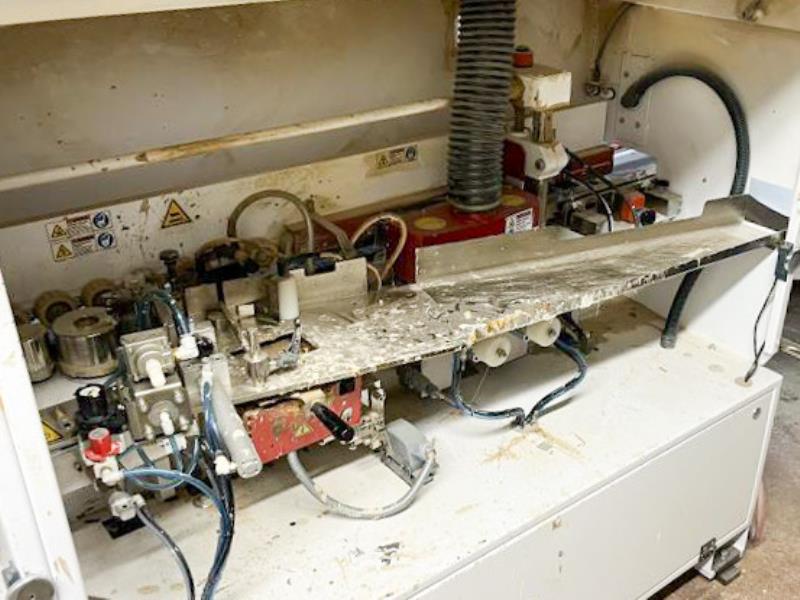

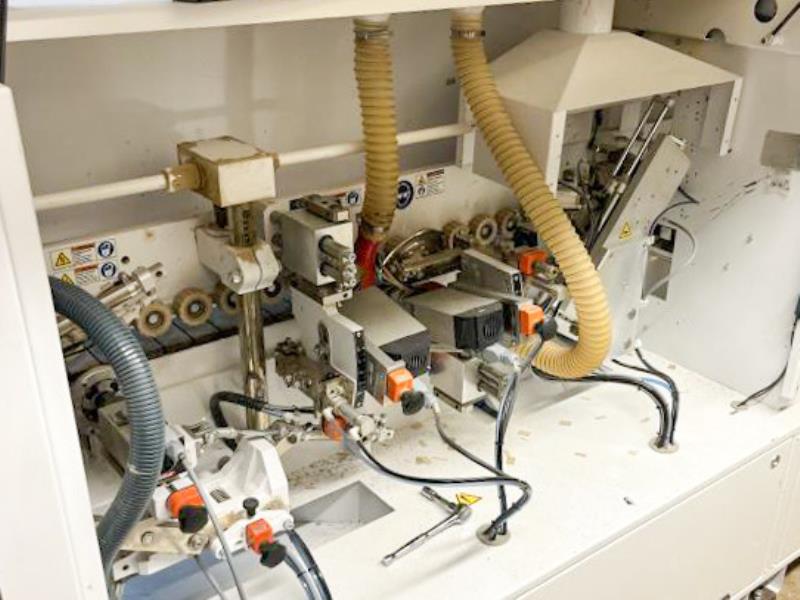

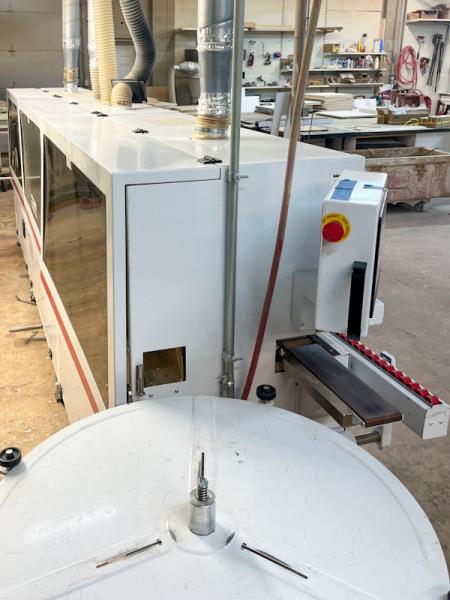

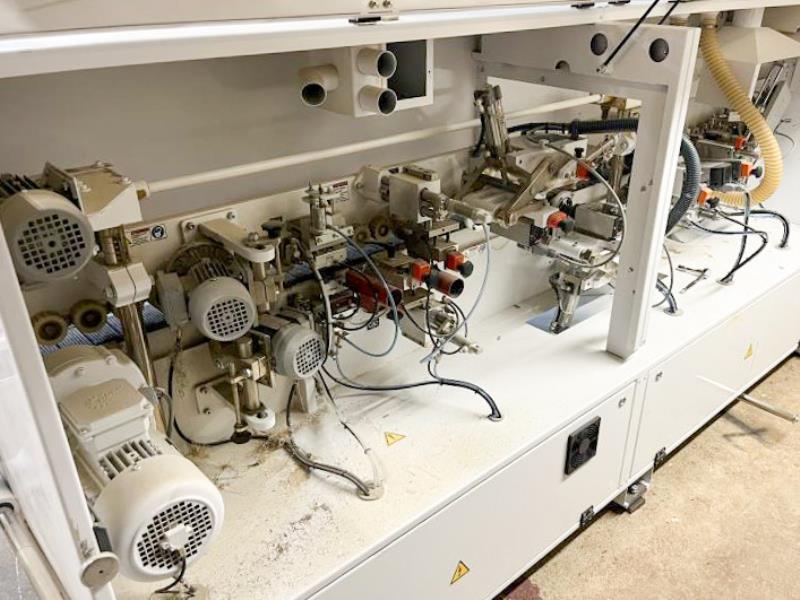

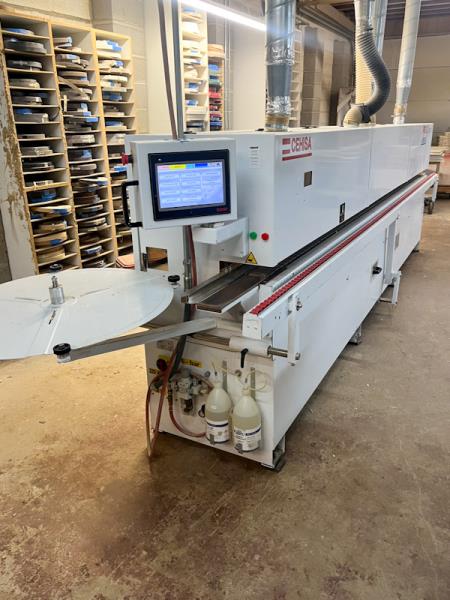

CEHISA PRO-12 CONCEPT ...Edgebander with Pre-Milling & Corner Rounding. Features: -- Pre-Milling Station with: 2 x1.5 Kw (2.0 HP)12,000 RPM motors, standard equipped with diamond cutters. Both spindles pneumatically controlled. -- Automatic Edge Magazine: for coiled material up to 3 mm thickness, strip feed magazine for up to 5 mm (3/16") solid wood banding. -- Quick Melt Glue System, MR-5: 10 - 15 min. heat-up time, auto temperature drop. Glue Tank is coated with nonstick material, quick-change mechanism for easy maintenance and/or color change. -- Pressure Section: (1) Large dia. driven and (2) idle rollers. Digital read-out and pneumatic positioning selectable from controller touch screen.Workstations: -- End Trimming Station, V-4: Double motor front & rear, 2 x 0.35 Kw (0.5HP) - 12,000 RPM. -- Edge Trimming Station, JC-5: Top & bottom flush/bevel/radius trimming, 2 x 0.35 Kw (0.5 HP) - 12,000 RPM, tiltable 0 - 20, pneumatic exclusion from operator panel. -- Corner Rounding Unit, CR-1: To process overhanging edges and trimming around the leading & trailing edge, 1 x 0.27 Kw (0.36HP). -- Profile Scraping Unit, RB-8: For thick PVC/ABS radius scraping, pneumatic in/out positioning from control panel with chip collection box. -- Flat Glue Scraper, RR-7: To remove potential glue squeeze-out. -- Buffing Unit, PC-9: Top/Bottom, 2 x0.12 Kw (1/8HP) - 1,650 RPM motors, tilting horizontally and vertically.Controller:PLC Microprocessor control with color touch screen, memory up to 20 programs.Complete With: Feed Speed, 10 & 16 MPM (35 & 55 FPM); Power hold-down beam; Work-piece support outrigger; safety & sound enclosure.Included Options:Riepe, non-stick spray system; Nesting Tracer Shoes for top/bottom trimmers
