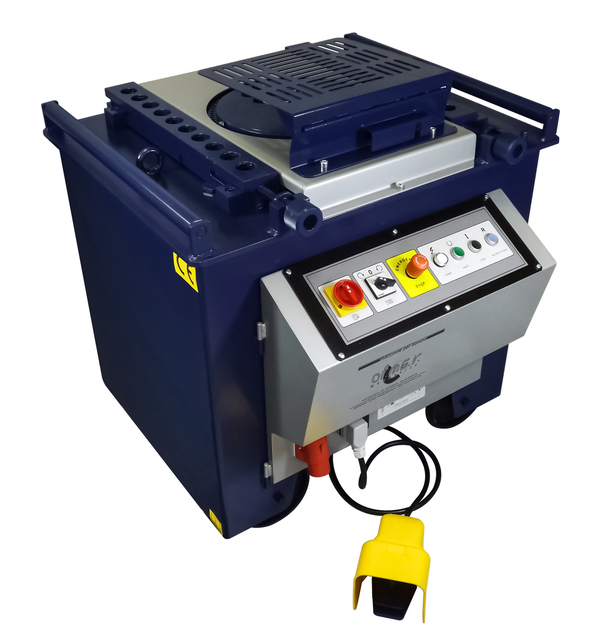

Carell #P44-EVO, Rebar Bender, 7 RPM, 5.5 HP, 220 V, new

Description

Carell Corp. P44 EVO Rebar Bender

Inventory # 9803

Model: P44 EVO

Description:

Carell’s P Series Rebar Benders use a rotating head with a forming arbor and lateral pins around which the bar is bent. Quality bends are produced swiftly and efficiently to the desired degree with electric limit stops. Rotation powered via TEFC electric motor and a continuous oil bath speed-reduction unit. Safety guards and stop switches are standard

Specifications:

Capacity:

Grade 60 120,000psi Tensile:

1 Bar: #10

2 Bars: #6

3 Bars: #5

RPM: 7

Motor: 5.5 HP / 220v / 3ph

Standard Features:

Automatic Operation: Bending head powered and bend sequence initiated by heavy-duty foot pedal or push buttons

Solid Steel Work Head: Heavy steel top rotary plate with welded steel construction base frame with access panels to interior of machine. All tooling is heat-treated for durability

Bend Control: Forward and reverse on all units via pin stops and electric limit switches, on board push buttons or via standard auxiliary foot pedal control. Heavy-duty controls

Bends up to 360°: In one pass operation, includes rotation inversion switch

Quick Change Tooling: Using simple spindle design, carried out in a few seconds

Kit of Bending Formers: Ø 1.97″, 2.36″, 2.75″, 3.15″, 3.74″, 4.72″

Single Speed Operation (Dual speed multi-pole motors are optional)

Portable Unit with Wheels: Every unit is equipped with four large wheels for mobility

Electrical System: Main fuse group, low voltage controls, motor overload protection and reversing low voltage relays, main switch with power on lamp

Low Voltage Controls: Controls in 24VAC low voltage

Safety Protection: Equipped with emergency stop palm switch and limit cutout

Standard: Instruction manual, one set of counter pins, main arbor pin, arbor sleeves, remote foot pedal, heavy duty controls, squaring arm/checking block, tool tray & wheels

Note: All units have left & right adjustable pin carriages (saddles) for double bend or left/right feed capability. Call to verify maximum bar size bendable at a specific bending radius/diameter as larger bars may require large radius bends to conform to standard practices

Mechanical Specifications:

Dimensions: 36″ x 34″ x 35″ H

Weight: approx. 1,320 lbs.

FOB Factory
