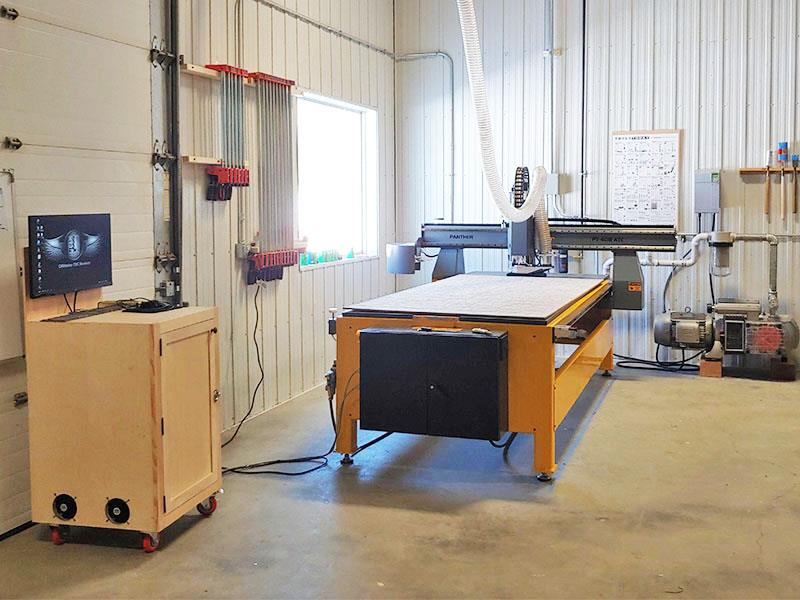

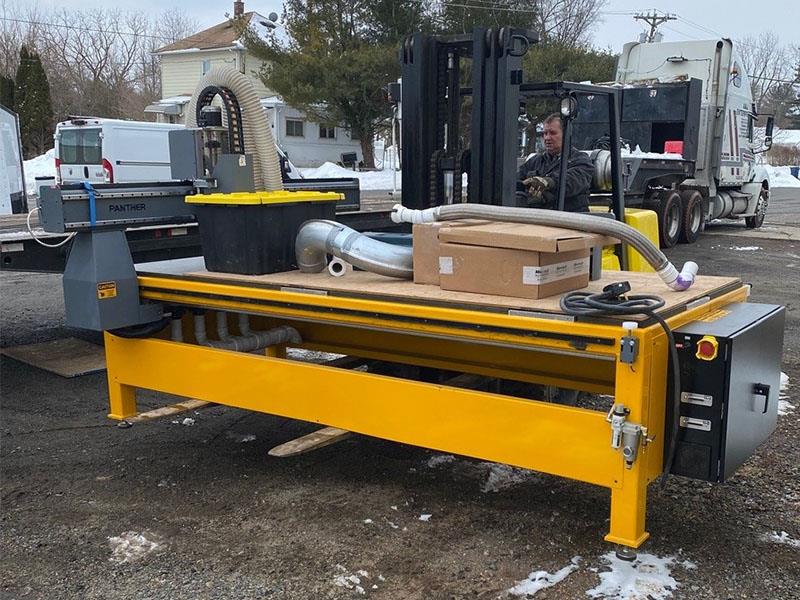

Camaster #Panther-408, CNC router, single spindle, vacuum pump

CAMASTER - PANTHER 408: Router w/Vacuum Pump -- SpecificationsMaterial processing dimensions: 48" Wide x 96" long x 8" thick; 11" "Z" axis stroke. -- Fixed 4-zone universal vacuum table for simple clamping of workpiece to machine; moving gantry bridge rides on high precision HIWIN linear rails for consistent movement & accurate cutting. -- Welded structural steel machine base: Provides solid foundation for superior cut quality; tool gantry & bridge travel by rack & pinion; vertical axis travels on ball screws for smooth consistent movement. -- Working UnitsIndustrial grade direct drive: 4 HP (3 kW) HSD router spindle; variable tool speed: Up to 18,000 RPM allows for the right cutting speed in any application. -- X- & Y-Axis; 1,500 IPM traverse speed for quick movement between cutting cycles to reduce total CNC machining time. -- Includes Windows-based CNC control preloaded on a PC (included); very intuitive interface; quick to learn and easy to use. -- Full-featured machine Operating System with: On-screen tool path graphics & CAM software; controller accepts direct import of: DXF, HPGL, BMP, or JPEG files & will create machine code simply & easily with a few "clicks" from the mouse. -- Compatible with virtually all CAD/CAM programming software on the market, which means you can choose the software that suits your business best. -- IncludesRemote Control Pendant; dust hood with: 4" Dia. inlet; BECKER "VTLF 2.250/10" HP Vacuum Pump & piping; JET Cyclone Dust Collector & ductwork; Toolholder & Collet. -- Actual Model - CAMASTER PANTHER 408 ROUTER.
