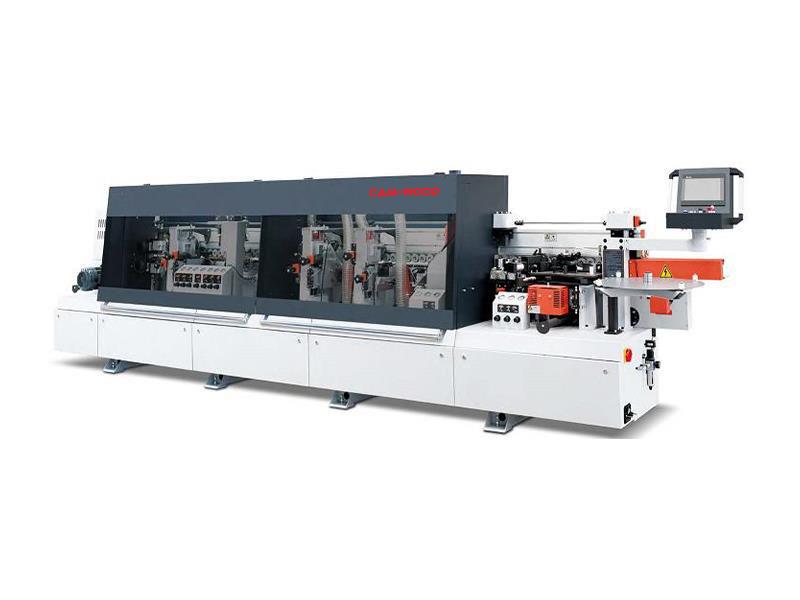

Cam-Wood #EB-K7PMX, Edgebander w/Pre-milling, 3 mm edge capacity, 2.36" thick, 6.3" width x 3.5" L panel, (2) 3 HP - 12000 RPM, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

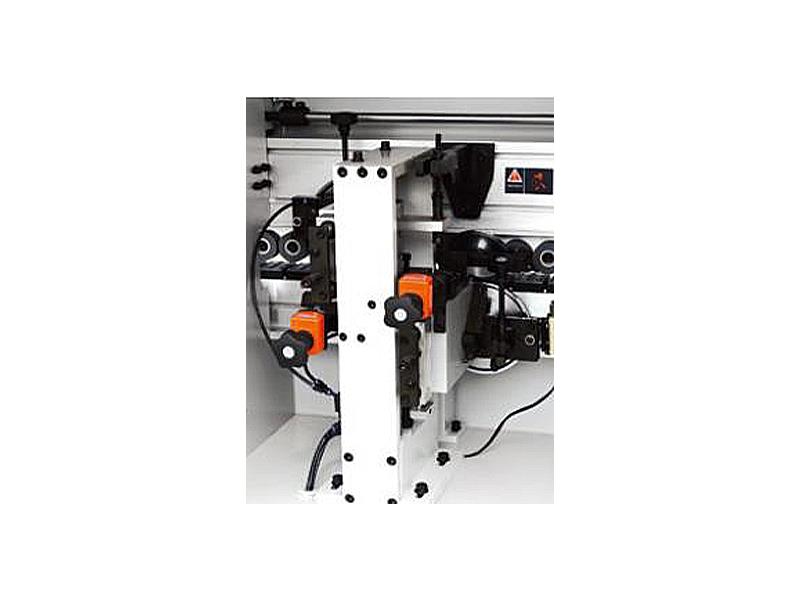

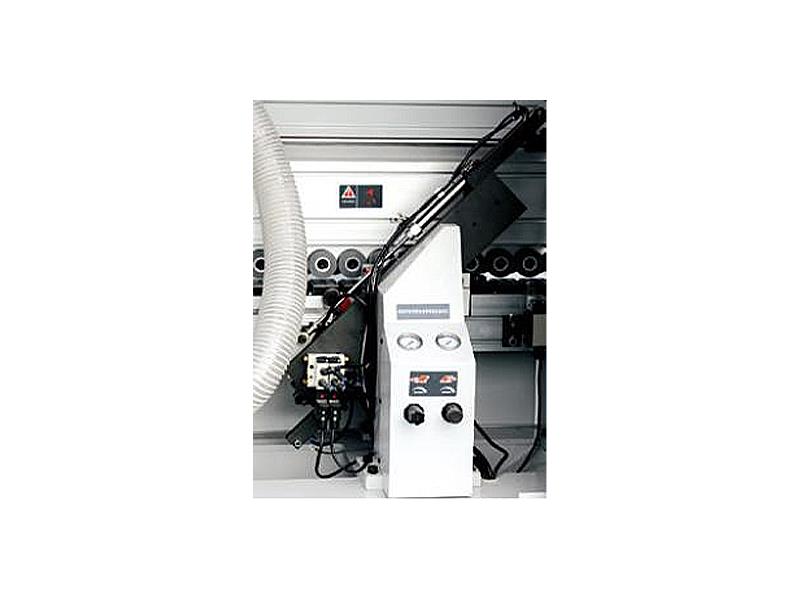

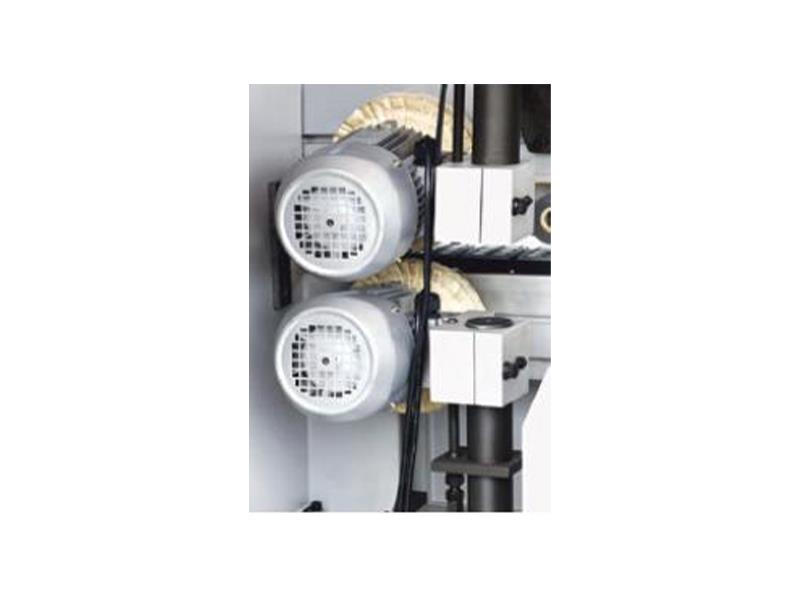

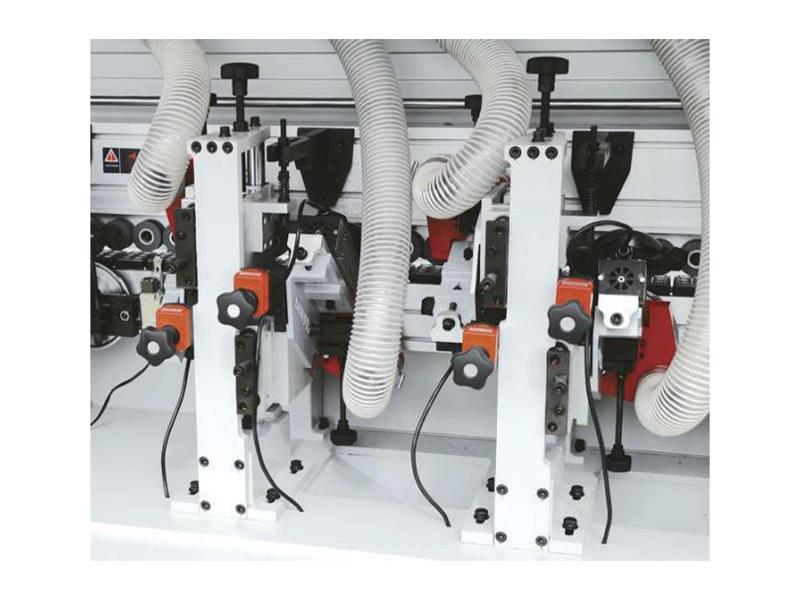

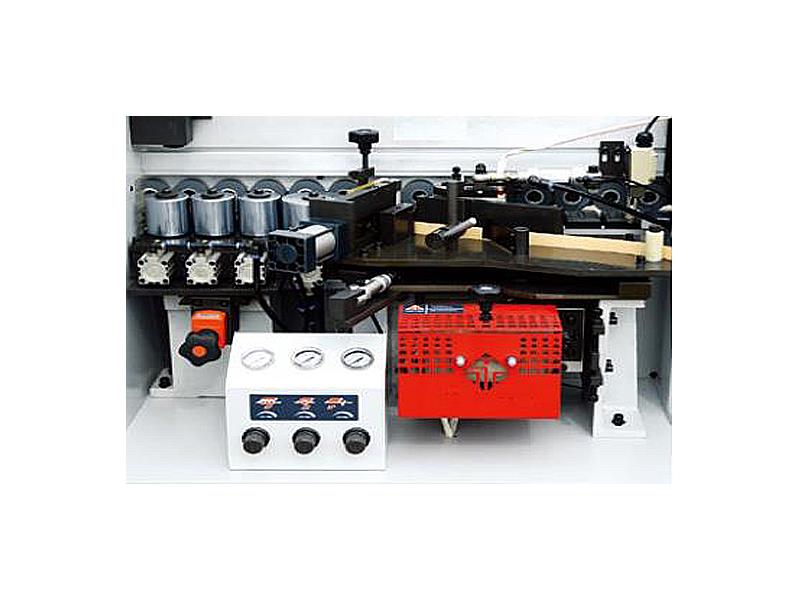

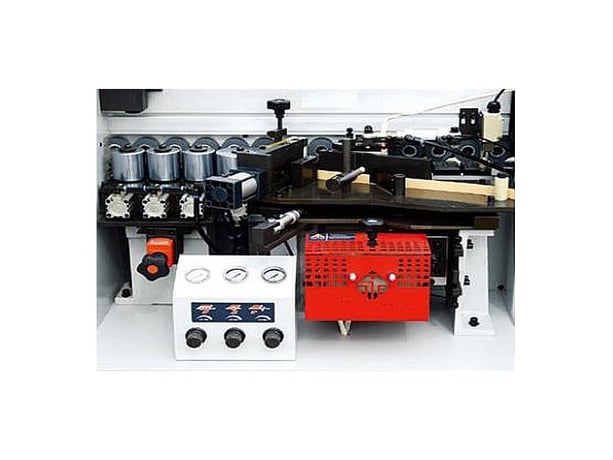

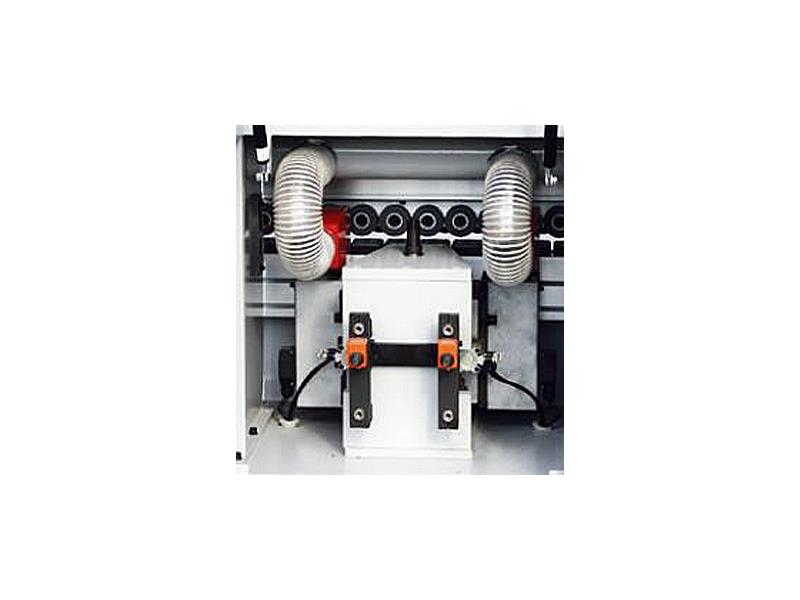

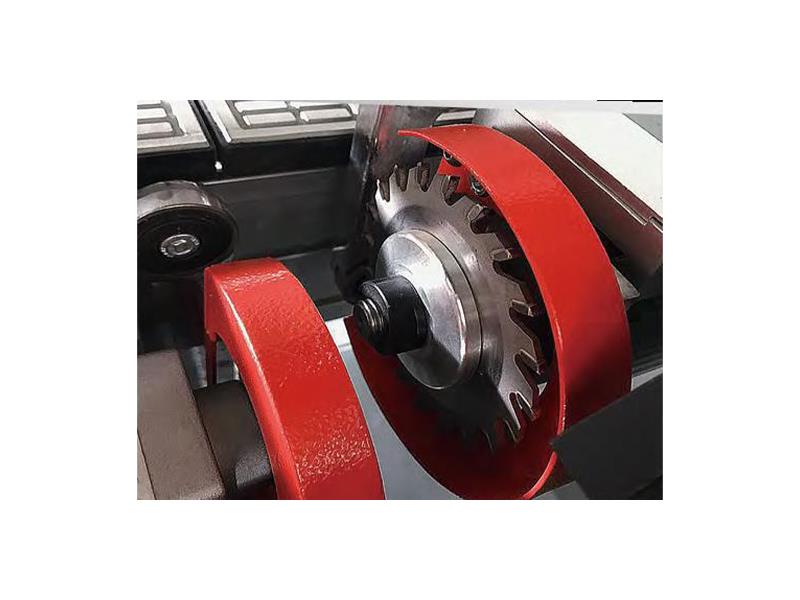

CAM-WOOD EB-M7PM EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4 mm - 3 mm Max. edge thickness cap., 10 mm - 60 mm (0.75" - 2.36") panel thickness cap. -- Minimum panel dimensions 160 mm long x 88.9 mm wide (6.3" x 3.5"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine.Infeed Section: -- Pre-Mill Unit with: (2) 3 HP (2.25 kW) -12,000 RPM High Frequency motors. -- Feeding of edging by strip or coil is automatic and synchronous with panel feed. -- Gluing Unit: Roller driven by a 1 HP (0.75 KW) motor; Tank heating 2.3 kW. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled side pressure section with (3) pressure rollers; 1st synchronously driven, (2) idlers; Independent adjustment for straight edge banding.Workstations: -- Double Motor end trimming saw unit with (2) 1 HP (0.7 kW) - 12,000 RPM High-Frequency motors. -- Cutting group moves on ways made of hardened steel, to guarantee high precision and reliability. -- Rough Top & Bottom Trim station with (2) 1 HP (0.7 kW) - 12,000 RPM Independent High Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutter-head position by mechanical digital readouts, quick release (electrical & mechanical). -- Fine Top & Bottom Trim station with (2) 1 HP (0.7 kW) - 12,000 RPM. -- Top & Bottom Profile Scraper station with quick working or exclusion setting of both top & bottom units, micrometer adjustment; features thick chrome plated copying shoes. -- Top & Bottom Buffing/Polishing unit with (2) 0.25 HP (0.18 kW) - 1,400 RPM motors.Feed System & Features: -- 43 / 60 FPM feed speed powered by 2 HP (1.5 kW) gear motor. -- Feed chain pads with precision ground round guides to ensure precise linear tracking of the workpiece. Replaceable rubberized surface inserts. -- Rubberized hold-down rollers with ball bearings for low friction and long life. -- Complete with: Sound / Safety covers for all work units with all required dust extraction outlets. Heavy, robust construction to eliminate vibration and ensure accuracy and stability.Includes: Outrigger support for wider work pieces. -- Owner’s Manual with mechanical & electrical schematics and parts breakdown; covered by a 1-Year Factory Warranty on parts. -- Total machine power is 11 kW. Transformers are available at additional cost to convert to desired alternate voltage requirements.
