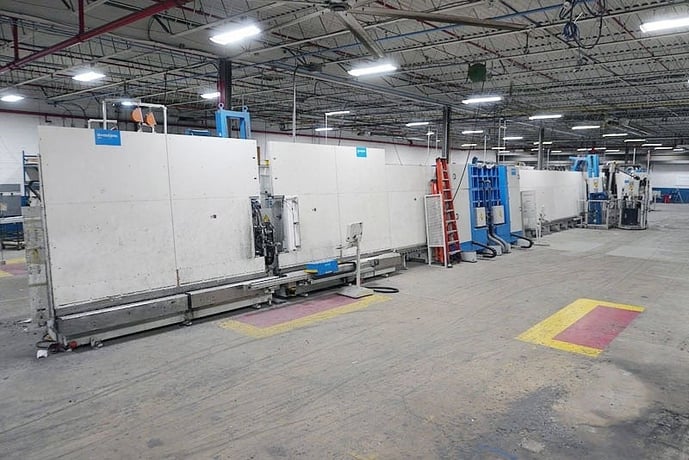

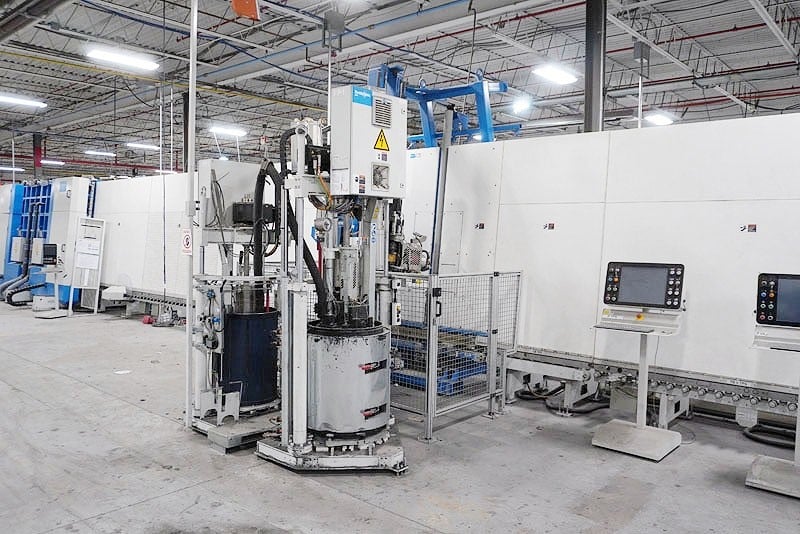

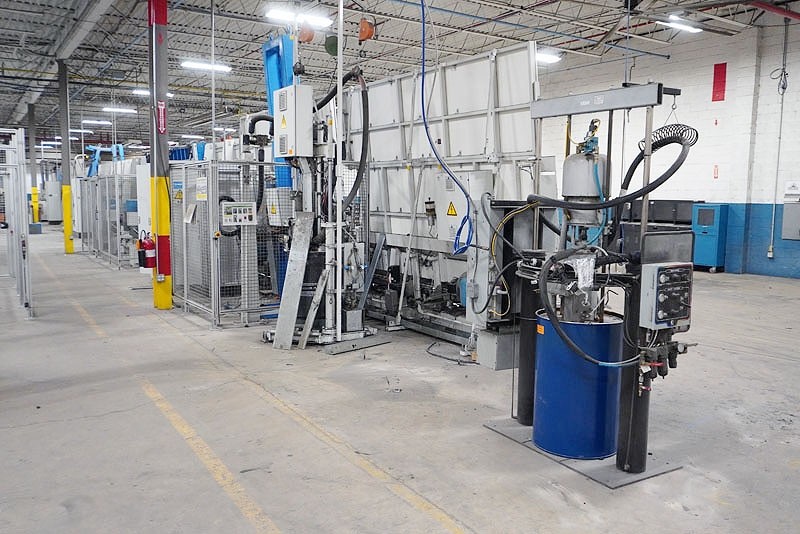

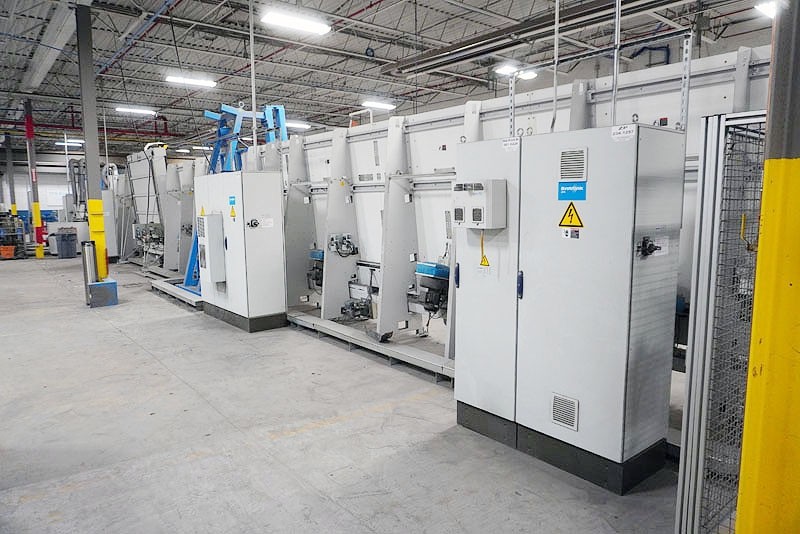

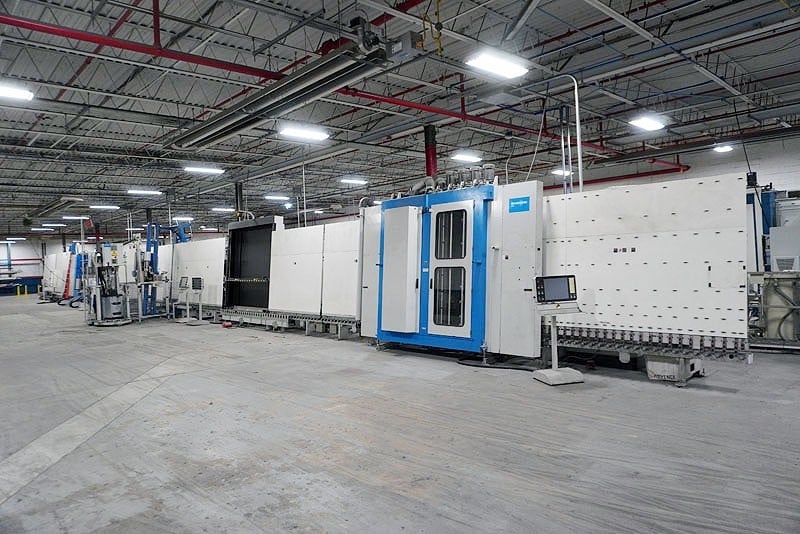

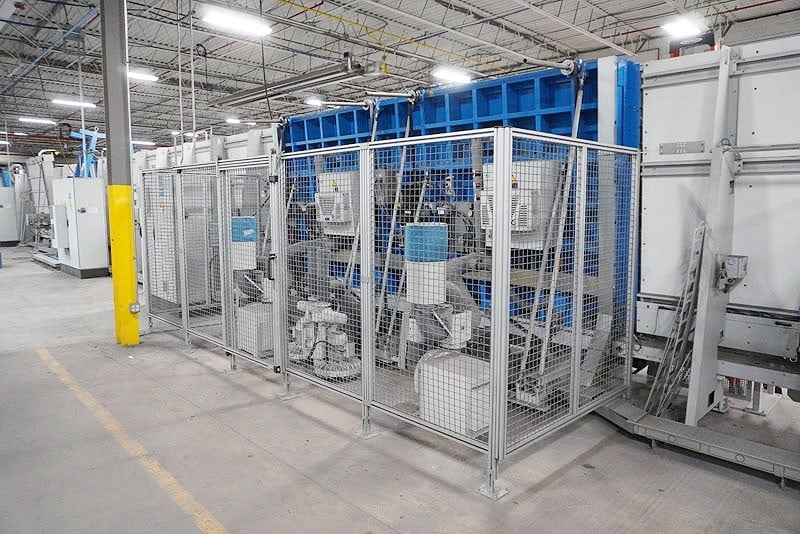

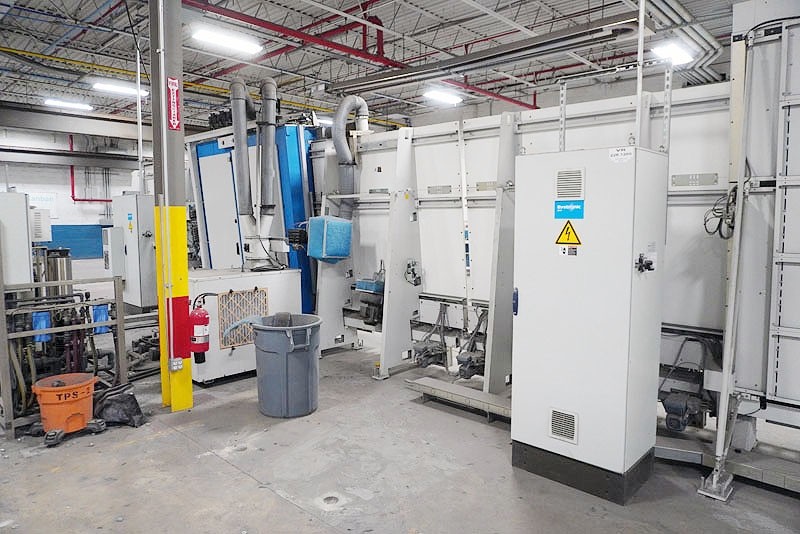

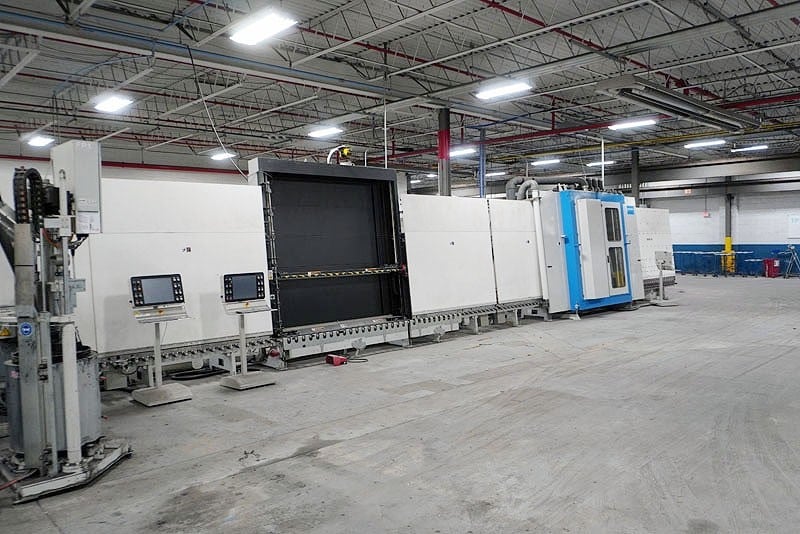

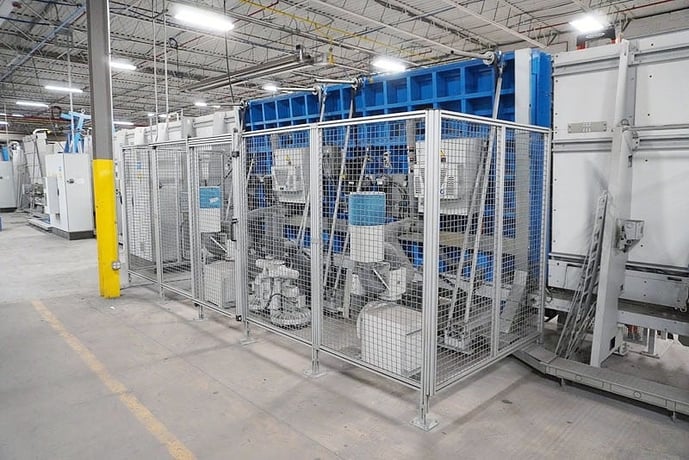

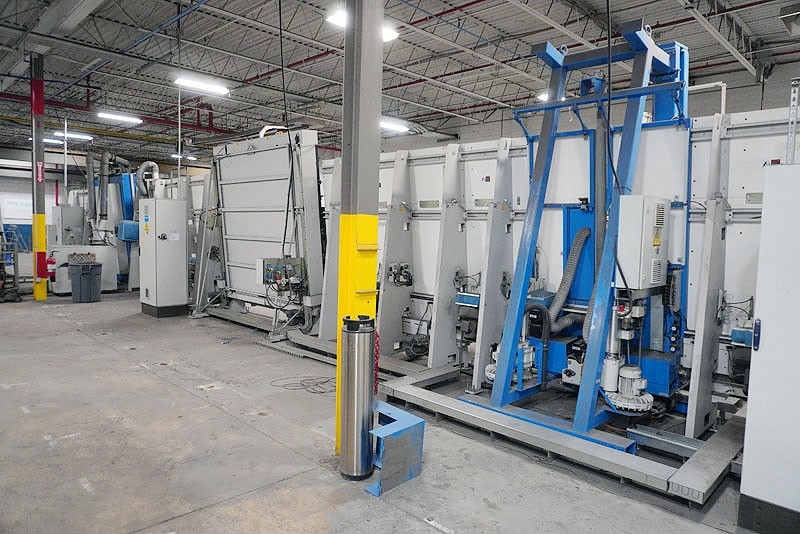

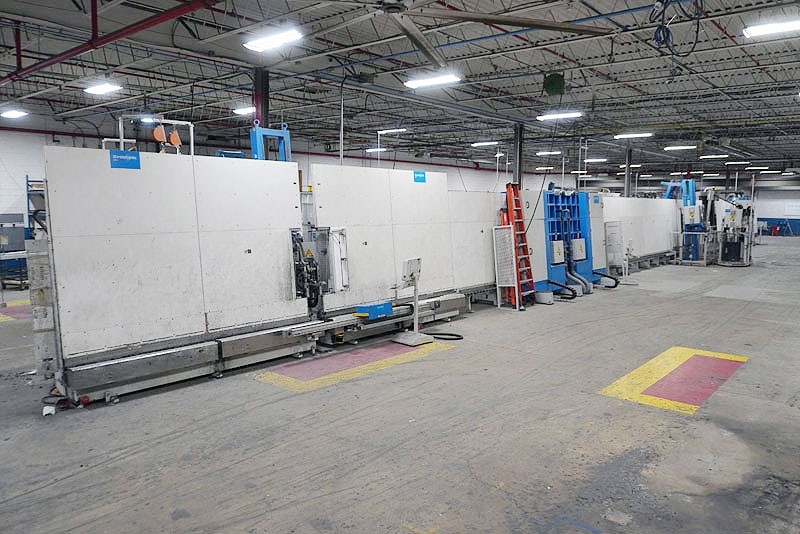

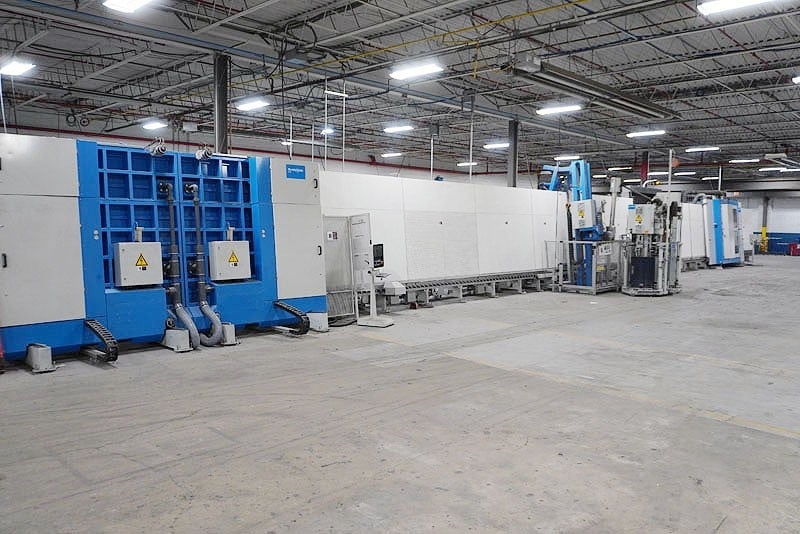

Glaston (Glaston) #Vario-IG, Glass Line w/ TPS Spacer Robot & Secondary Sealer, 2.36" max thickness, 90.5" x 98.4" max size, 2018

$600,000 USD

Request Formal Quote

480 Volt three phase, 60 hz

Manufacture year 2018

Glass plate thickness range 2.2 mm to 15 mm (0.086" to 0.590") Min working size 190 mm x 300 mm (7.48" x 11.8") Max working size 2300 mm x 2500 mm (90.5" x 98.4") Max thickness of IG unit 60 mm (2.36") Min thickness of IG unit 11 mm (0.43") TPS air spacer width 6 mm up to 16 mm (0.236" to 0.629") The line can handle shaped and rectangular glass panels Smallest radius for shaped glass plate 25 degree up to 155 degree Max conveyor load 1000 Kg (2204 Lbs) Distance from glass edge to spacer outside (adjustable) 2 mm to 20 mm (0.078" to 0.78") Suitable for production of dual insullated glass panels with plastic spacer or triple insullated glass panels with metalic spacers Table passline height 500 mm +/- 20 mm (19.65") Inclination of production line 6 degrees Foot print of line (approx) 155 ft long x 25 ft deep x 150" high Line is set up in a right to left feed direction Modular type machine line design
