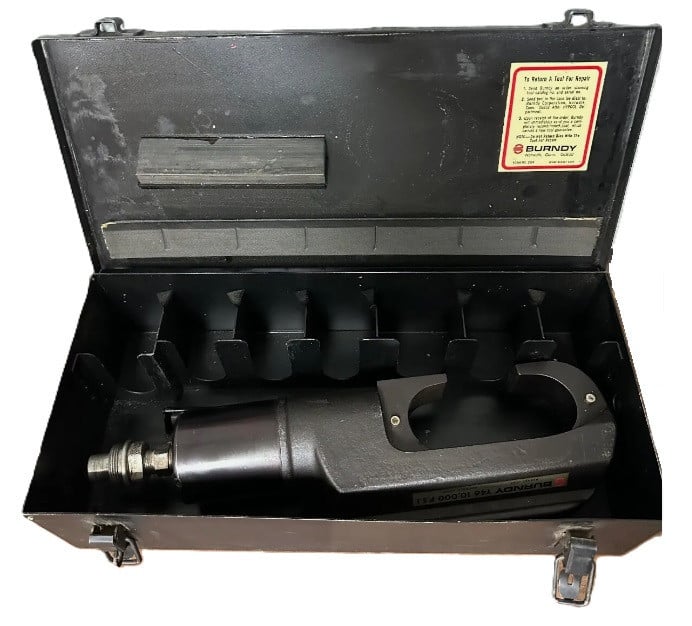

Burndy #Y46C, Hypress Remote Operated Hydraulic Crimp Tool Head, 10,000 PSI., Refurbished

$1,855 USD

Request Formal Quote

The Y46 standard tool and Y46C rubber covered tools are lightweight, compact and versatile with installation dies for both circumferential and nest-indentor types. Accessories include "U-" die adapter, a cable cutting die for 1.2" diameter non-steel conductors, plus a lifting eye and universal hot-stick adapter for overhead line construction.Compact "C" shaped head allows easy placement and removal from continuous conductor lengths.Versatile and economical-HYPRESS tools work on all commonly used copper and aluminum products.Dies and adapters lock into or remove from tool head easily with the positive push button die locks.Safety, strength and high quality is provided with strong forged steel and precision machined components.Excellent for HYGROUND compression grounding applications through 1" ground rods and up to 500 KCMIL taps, terminals and splices.Compression terminal, splice and tap connectors are UL listed and CSA certified when installed with the Y46 and Y46C HYPRESS and recommended die set.Y46C has a permanently molded head of 3/16" rubber and includes a separate molded rubber boot to cover the lower HYPRESS body and hydraulic coupler.. Burndy. Hubbell. Y46C.
