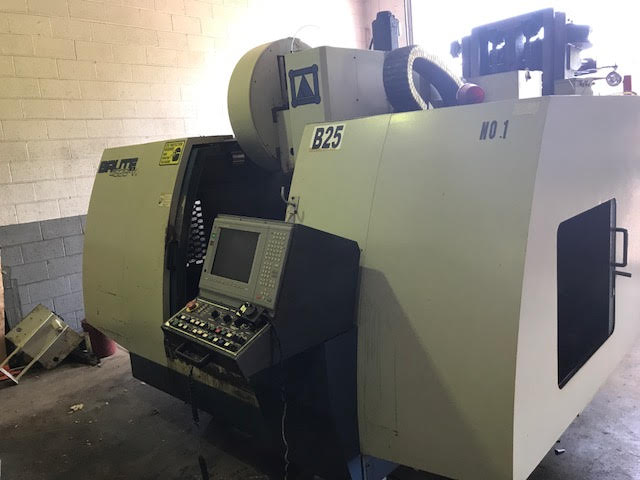

Brute #4828, vertical machining center, 47" X, 27.5" Y, 27.5" Z, 8000 RPM, 24 dual arm automatic tool changer, #50 taper, 2000

BRUTE 4828 CNC Vertical Machining Center Year 2000
Machine Specifications
Travels
X 47.2"
Y 27.5"
Z 27.5"
Spindle nose to table 6 - 33.5"
Spindle center to column ways 28"
Table (LxW) 55" x 26"
T-slots .708" x 4.13"
Machine base width 47"
Machine saddle length 82.7"
Door opening 47"
Crane loading access Std
Max weight on table 5,500 lbs
Spindle
Taper size #50 Taper
Speed range 60-8,000 rpm
Transmission Digital Direct belt drive
Spindle max torque 220 ft-lbs
Spindle motor 25 HP
CNC temperature controlled X/Y/Z & Spindle
Axis ball screw diameter 50 mm
Ball screw pitch 10 mm
Max rapid rate X/Y/Z 1,181 ipm
Max cutting rate X/Y/Z 787 ipm
Accuracy
Positioning +/-.00015"
Repeatability +/-.0001"
Tool Changer
Type & Capacity 24-Dual-Arm
Max tool diameter 5.0"
Max tool weight 26 lbs
Chip Removal Systems
Flush Wash/Auger/Conveyor Automatic
General
Air required @ 80 –100 PSI 6 scfm/18 scfm momentary
Power required 220 VAC 100 Amps
Coolant tank capacity & motor hp 21 gal / 3 hp
Machine size (DxWxH) 122" x 144" x 100"
Machine weight 22,400 lbs
Additional Machine Details
(1) VB 4828 VERTICAL MACHINING CENTER
• Extra large and heavily ribbed Mehanite cast iron construction
• Integral cast hardened and precision ground box ways with Turcite B on X/Y/Z axis mating surfaces ( Y axis 4 Box Ways)
• A/C digital spindle drive & spindle motor with fiber-optic feedback
• A/C digital servo drives, servo motors with fiber-optic feedback
• 3,000 RPM rigid tapping
• Heavy-duty class C3 double-nut ball screws anchored at both ends and pre-tensioned to reduce whipping
• Full enclosure guarding
CNC CONTROL FEATURES:
Mitsubishi 500
300MB Memory
32 bit main processor
256 byte part program storage
Digital drives
Handwheel
Online help functions and assistants
Mirror image, scaling and coordinate rotation
Linear, circular, polar & helical interpolation
Background editor
Mid step-skip and start (optional block stop)
Graphic display and part visual program verifications
Operation history of function alarm
High-speed milling – 1,000 lines/sec
Optional block stop or block skip
Tool life management
Fixed canned cycles
Custom macro programs
Control Features Continued:
Cutter tool load compensation
48 fixture offsets
400 tool offsets
Advanced look-ahead optimize acceleration and deceleration
Graphic G-code errors display
G-code and M-code assistant
Contour program guide
Advanced graphical canned cycle
Rigid tapping
Help function keys
Control communication
MDI, RS32, DNC and Ethernet
https://youtu.be/cEMG0eugm3c
