Bridgeport, vertical mill, 40" x9" tbl., 1 -1/2 HP, 32" X, 12" Y, 15" Z, 60-4200 RPM, R-8, 2J head, X-axis power feed, vise, 1970

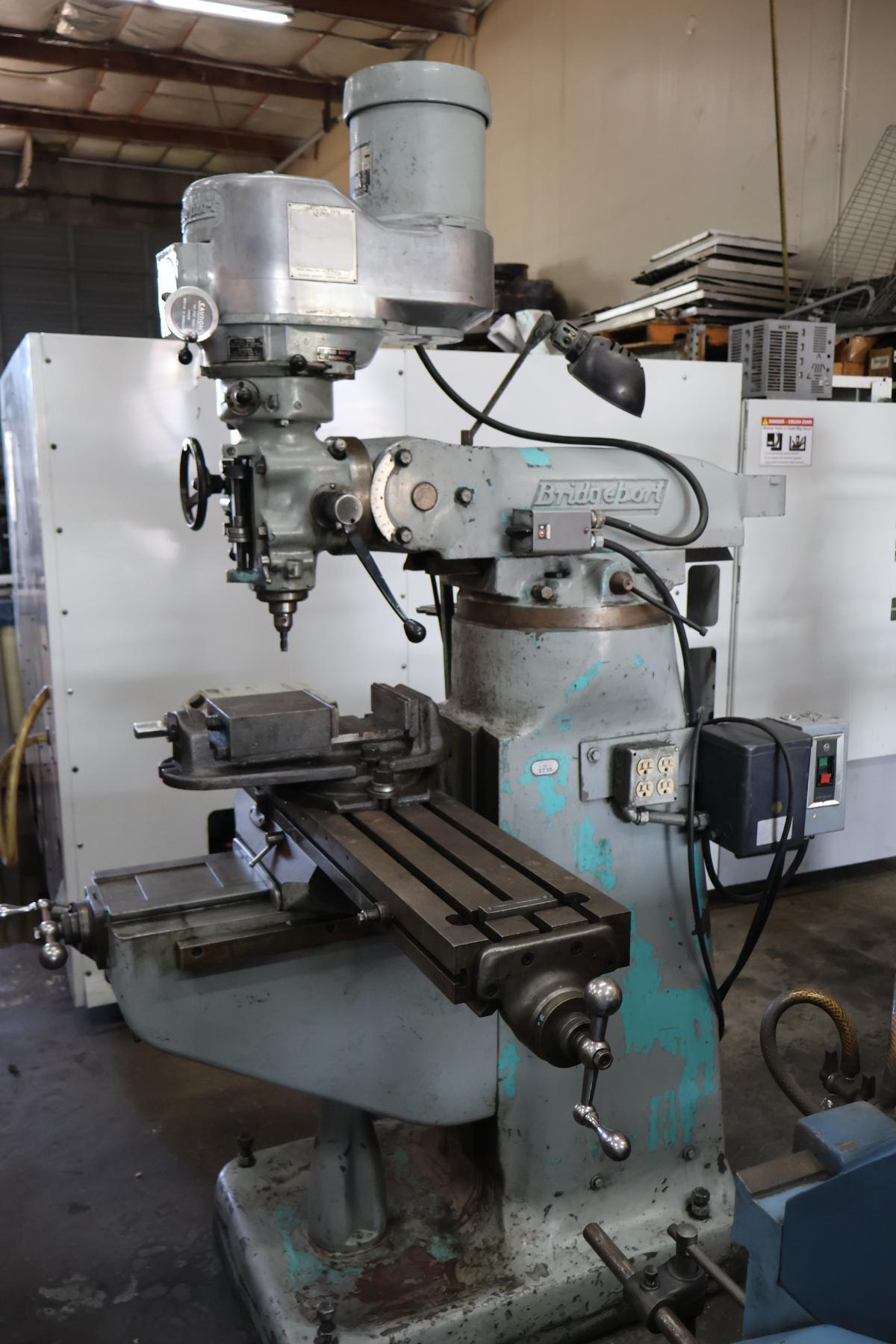

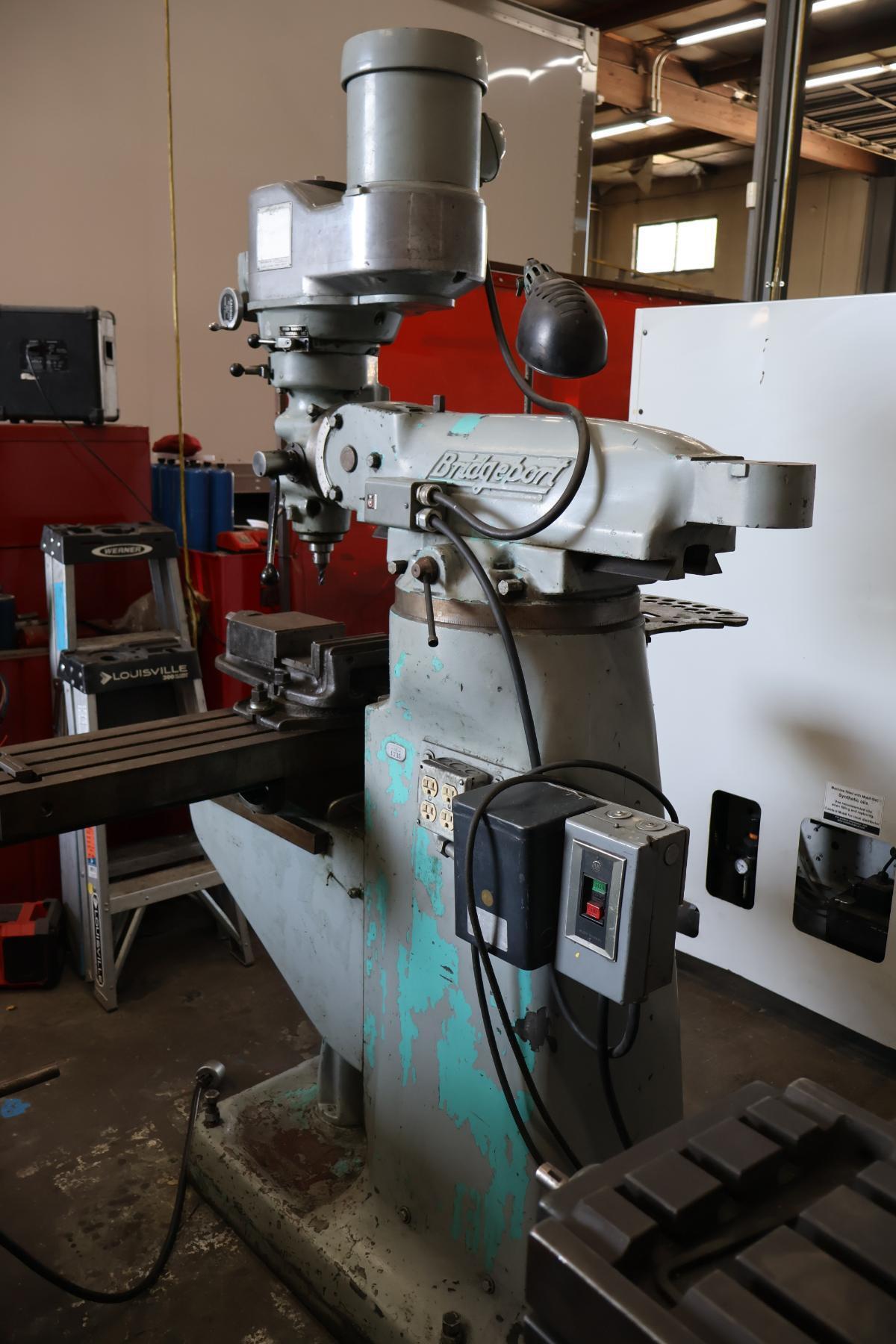

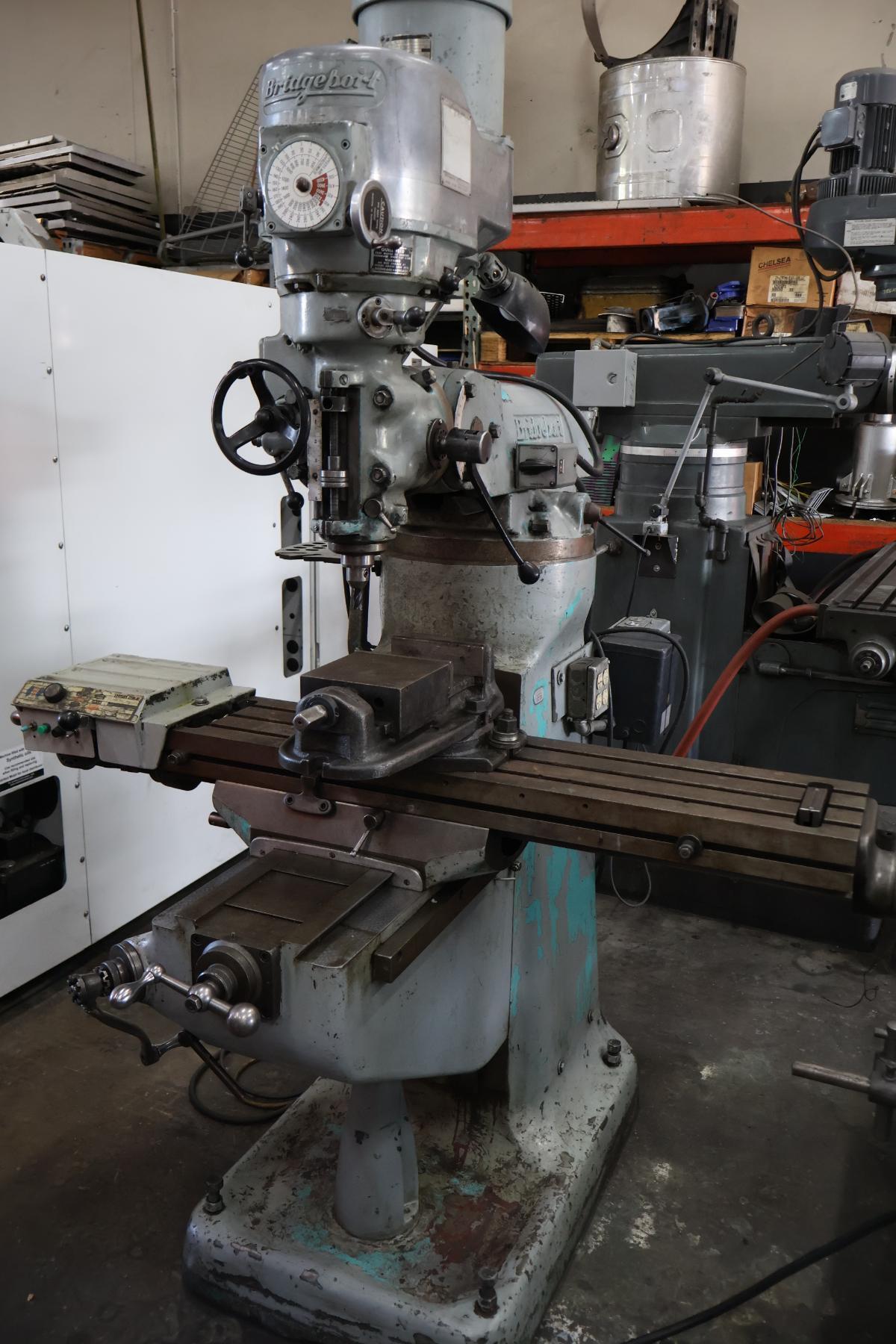

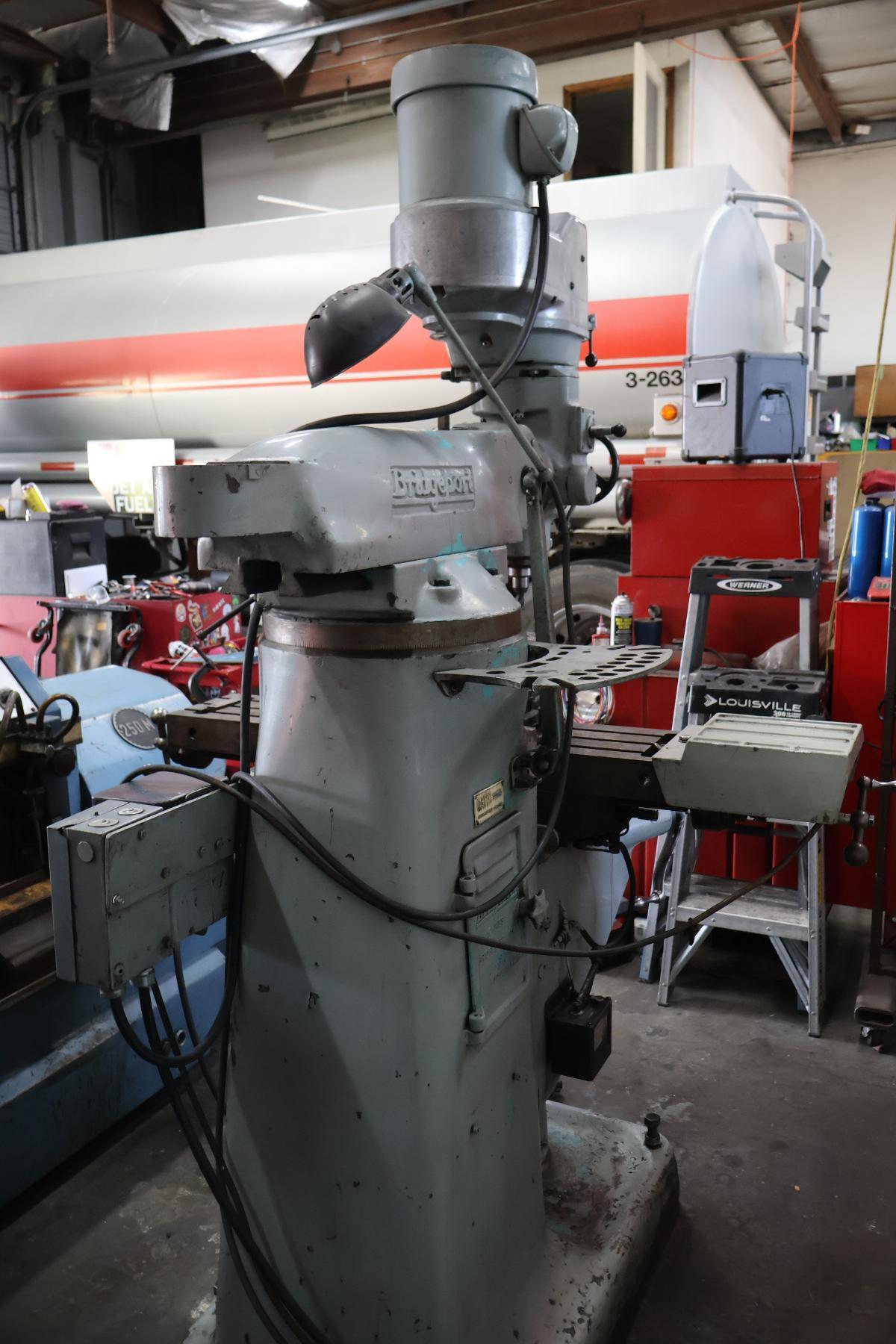

Bridgeport Knee Mill
OEM: Bridgeport Machines
DOM: 1970

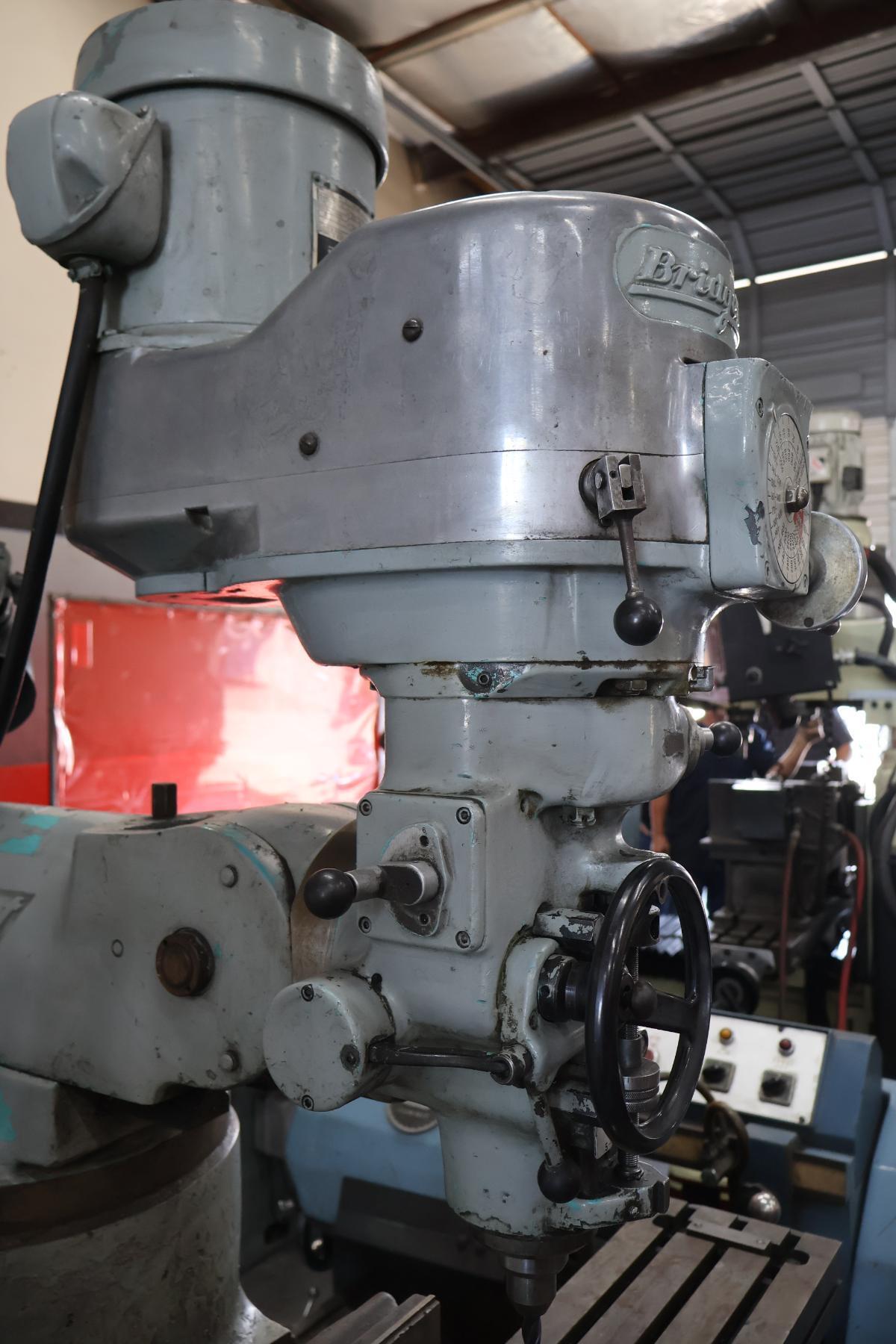

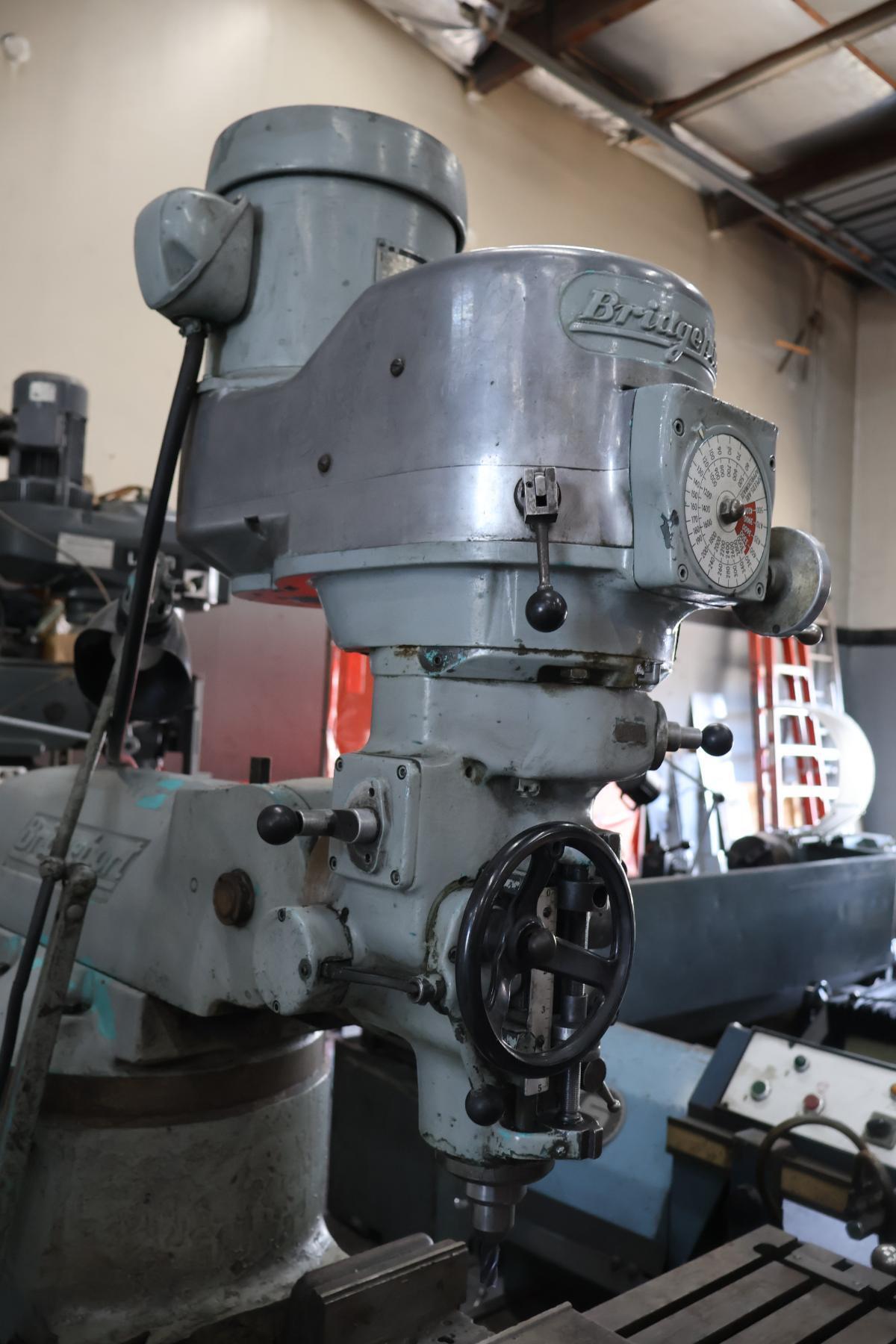

Head Serial No.: 2J-27478
Electrics: 230-260 Volt, 3 Phase, 60 Cycle, 2.2-4.4 Amps
Main Spindle: 1-1/2 HP, 1,730 RPM
Features and Specifications:
…Table Size: 40" x 9″
…Travels (approx.):
…..X-Axis: 32”
…..Y-Axis: 12”
…..Z-Axis: 15”
…..Quill: 5”
…..Ram: 15”

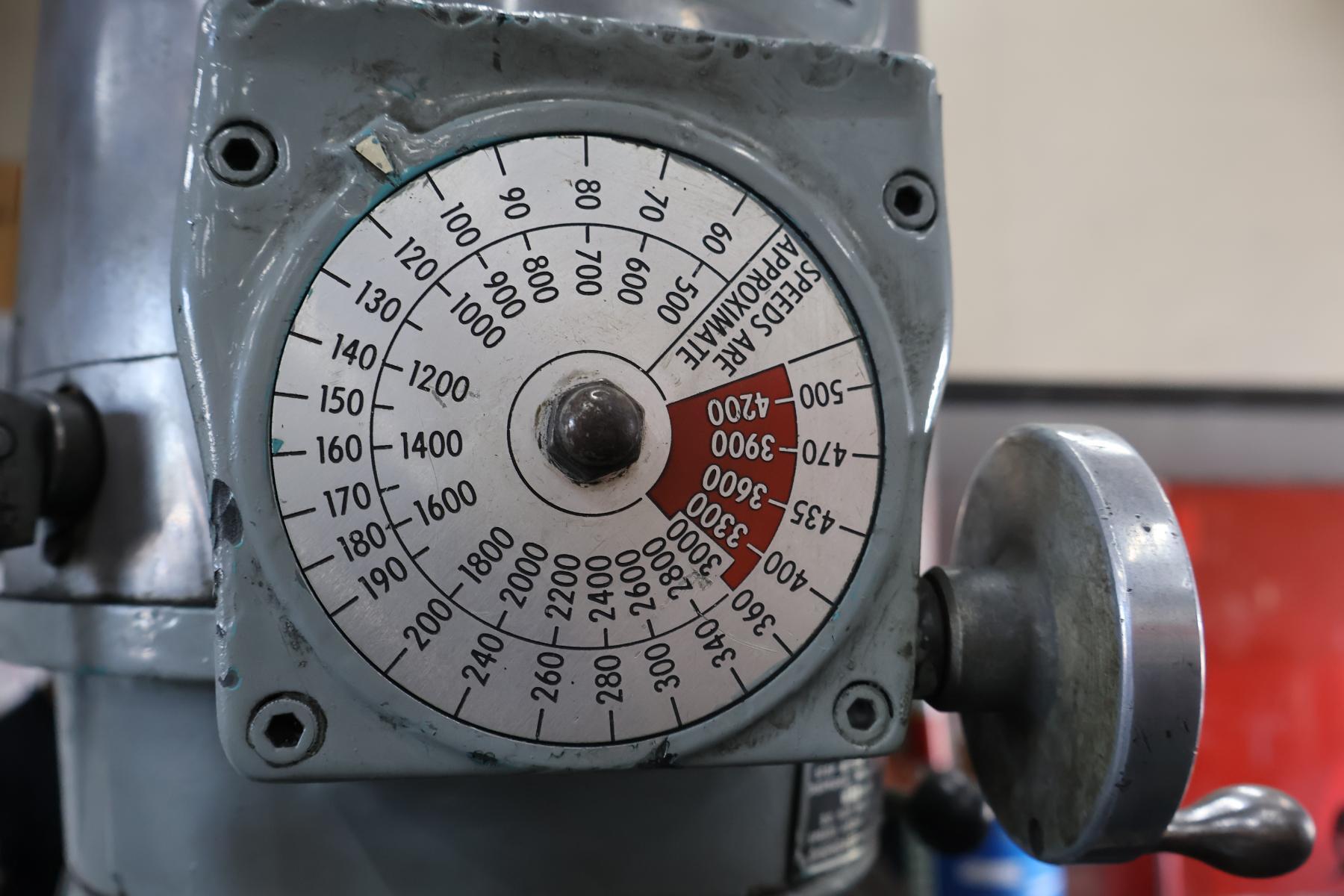

…Variable-Speed Drive: 60 - 4200 RPM

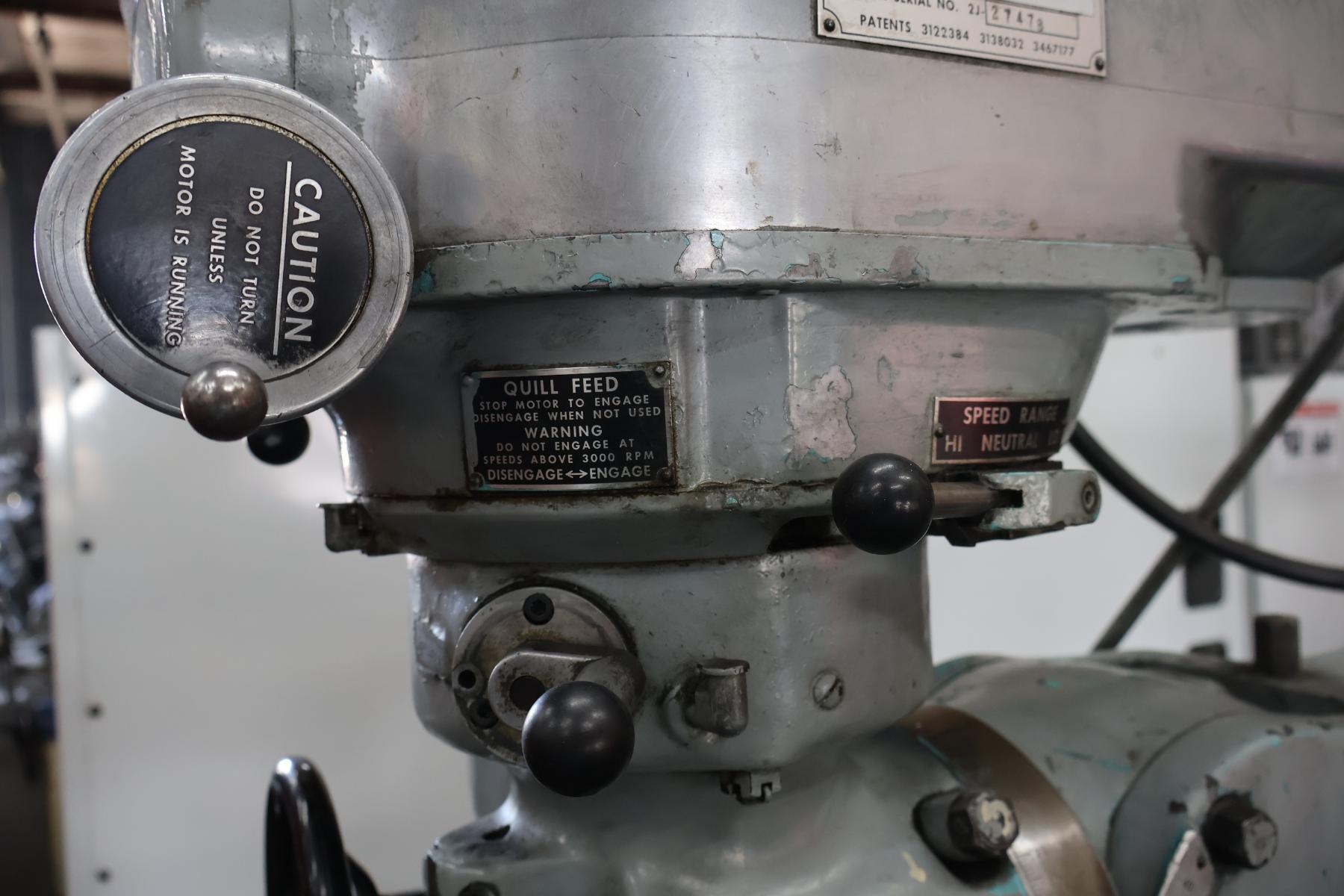

…Quill Feeds (IPR): .0015, .003, .006
…Workpiece Load: 750 lbs.

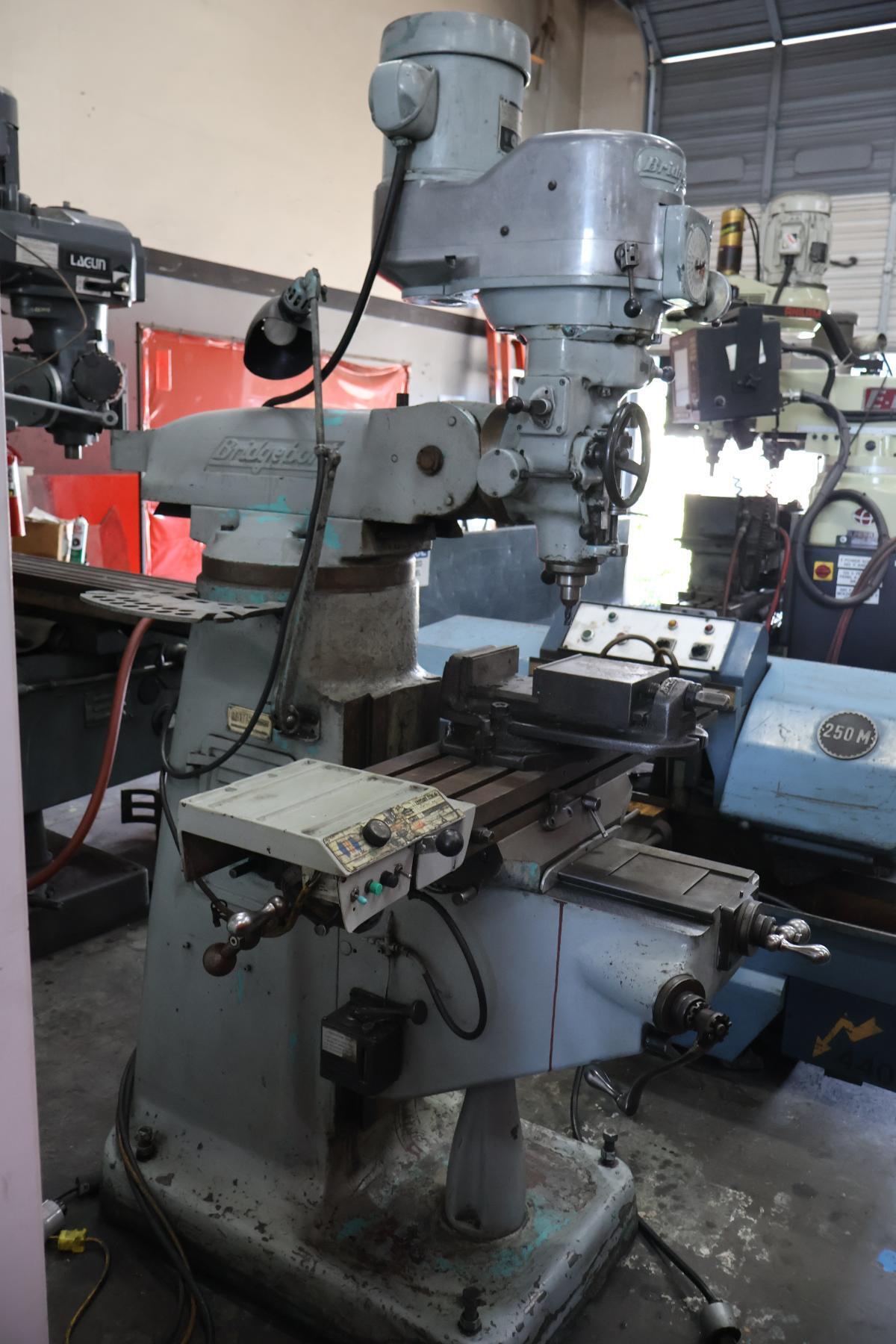

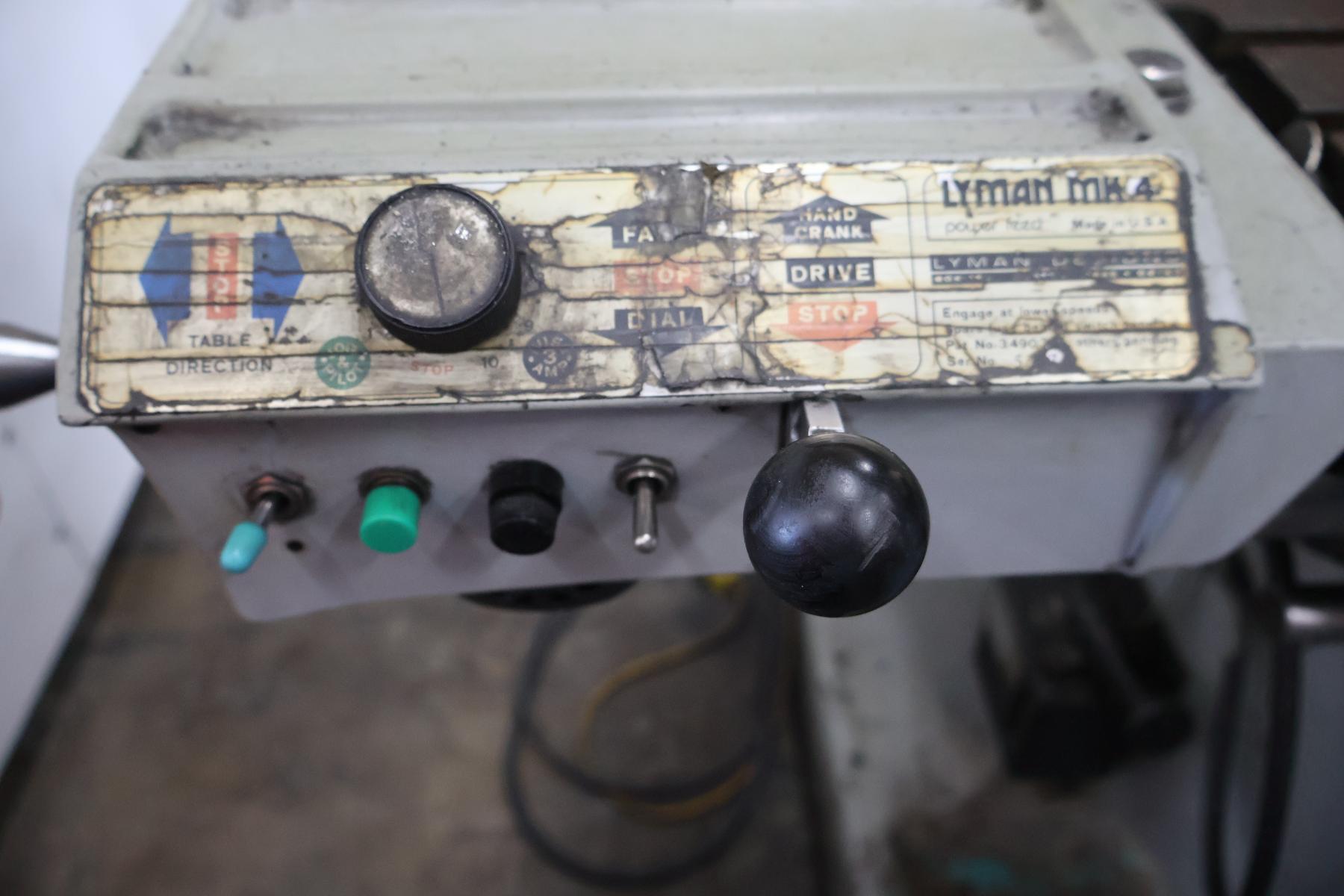

…X-Axis Power Feed
…Spindle Direction Switch
…Spindle Taper: R8
…Knuckle Joint for Head Tilt F-B & L-R
…1-Shot Lube
…Work Lamp
...Vise
...Tool Holder
Equipment Dimensions (approx.): 72” x 72” x 90”
Weight (approx.): 3,500 lbs.
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes & History:
This is being sold by one of my long-term accounts in Portland, OR. He has some surplus machine tools that he is shedding from his operation. This was decommissioned about a month ago; was making parts up until that time. The serial number engraved on the ways places DOM at 1970; the serial number for the 2J head confirms this manufacture date.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Portland, OR
Equipment is not under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide shipping options.
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
