Description

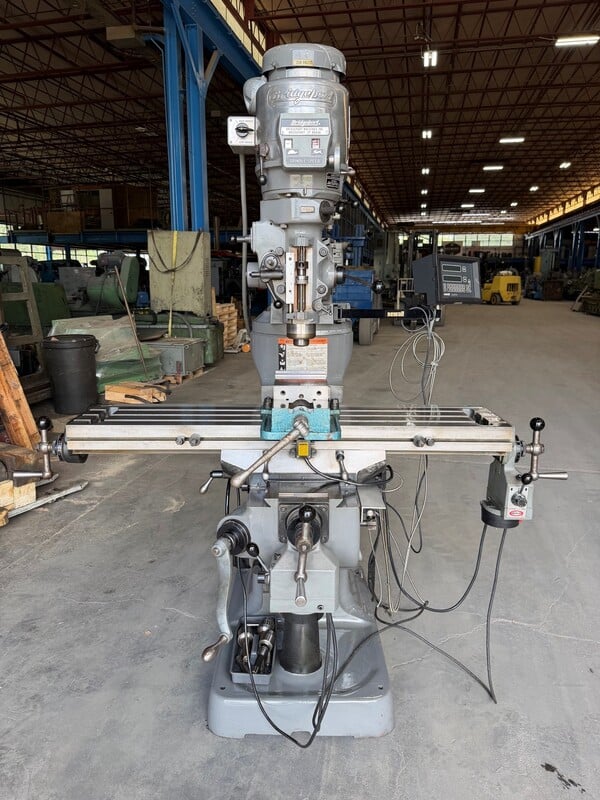

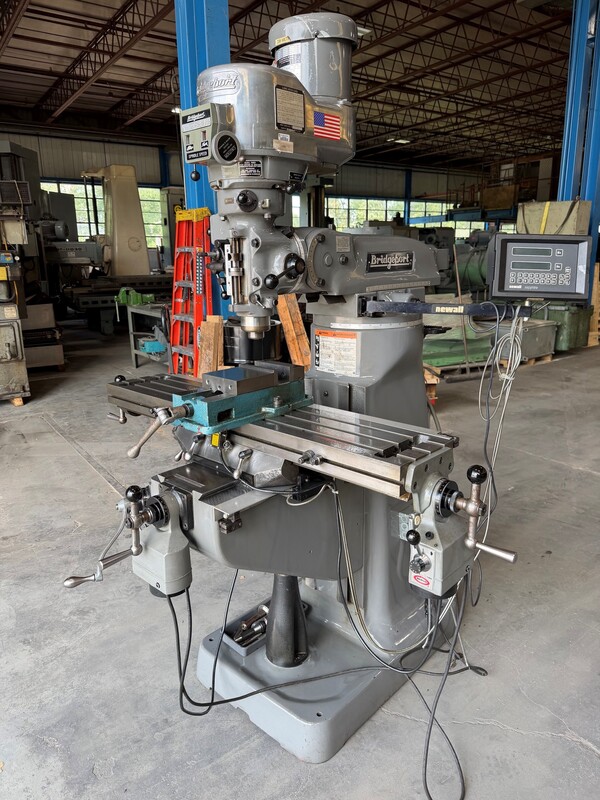

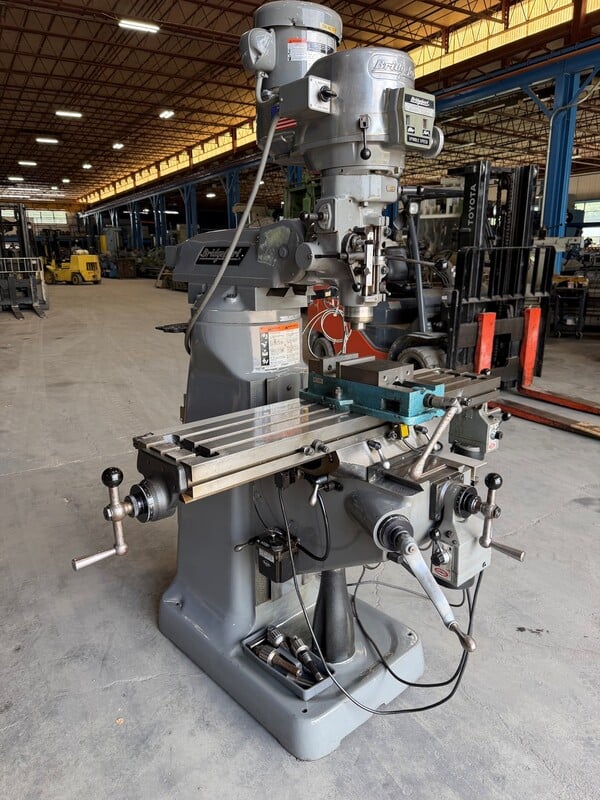

BRIDGEPORT VERTICAL MILLING MACHINE

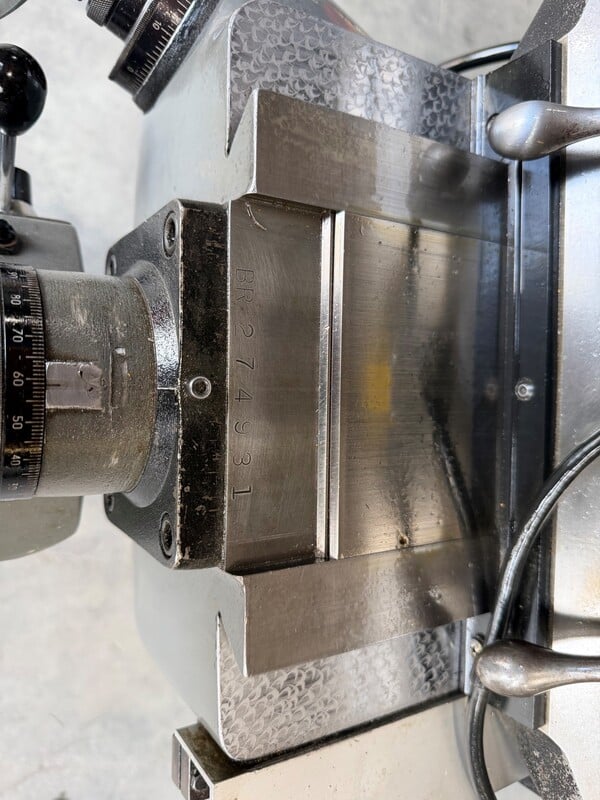

MODEL: SERIES I, S/N: BR 274931, NEW: 1998
SPECIFICATIONS:

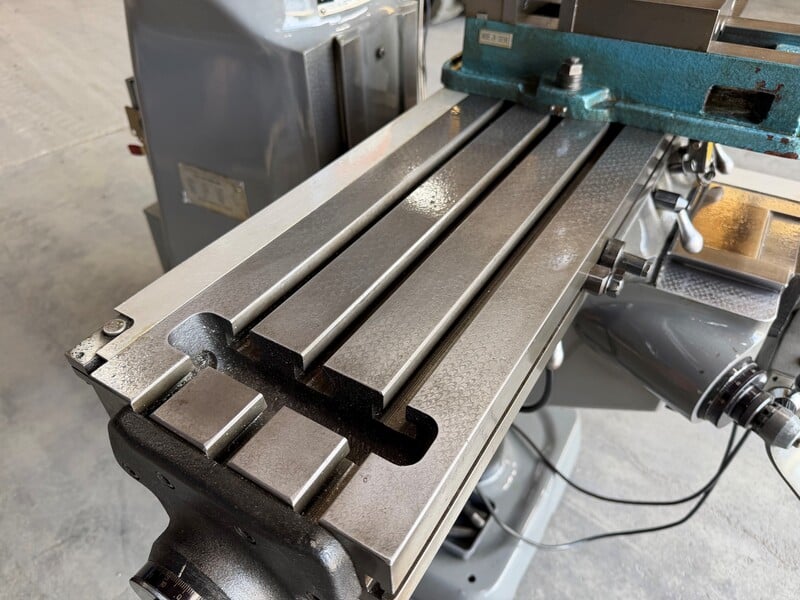

TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS .......................″
LONGITUDINAL TABLE TRAVEL ...............″6"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT… RIGHT ................. 90 DEGREES
HEAD TILT, FRONT… REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY .....................″/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS
EQUIPPED WITH:
NEWALL TWO AXIS DIGITAL READOUT
SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
SERVO POWER FEED FOR CROSS TABLE TRAVEL
KURT MILLING VISE
CHROME WAYS
BIJUR ONE SHOT LUBRICATION SYSTEM
BRIDGEPORT SERIES I MILLING HEAD
2 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN A MIDWEST WAREHOUSE
