Description

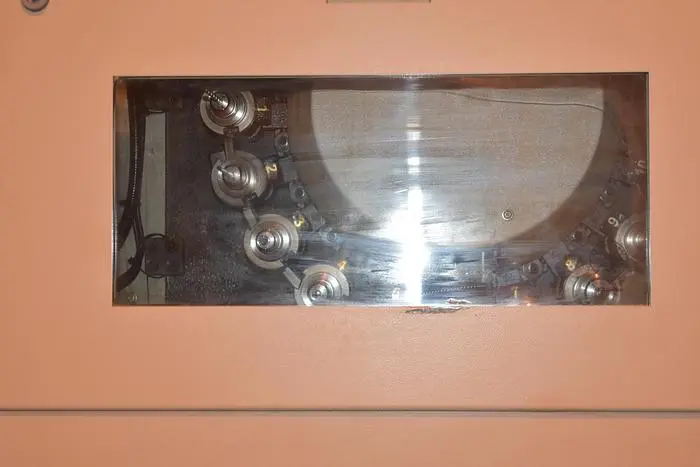

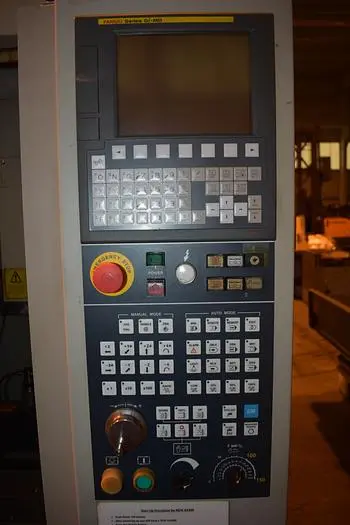

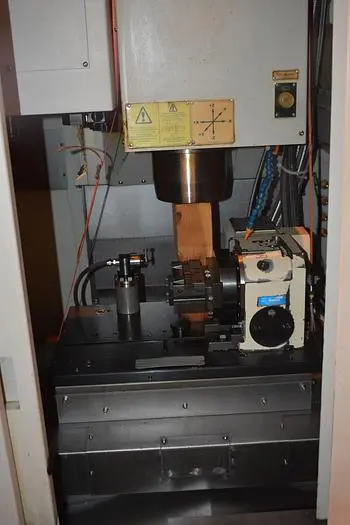

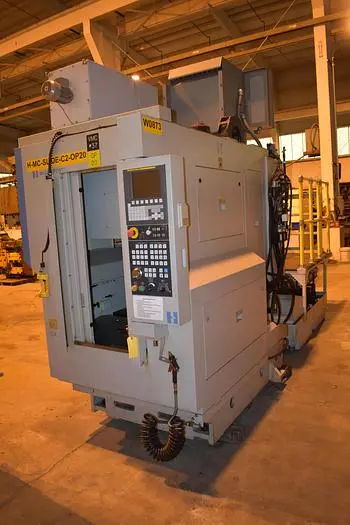

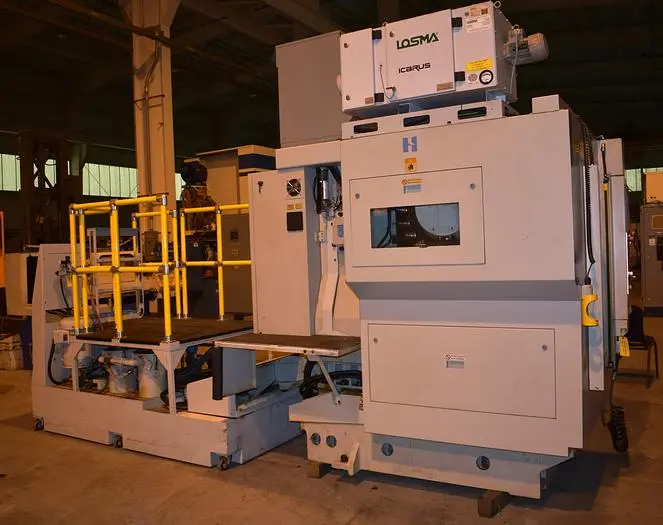

The GX-300 Bridgeport/Hardinge 4-axis CNC vertical machining center is engineered for high-value, complex parts manufacturing. Featuring a compact footprint to maximize floor space utilization, this machine is equipped with a FANUC OIMD CNC control and an RNA-160L Tsudakoma NC rotary table, enabling 4-axis simultaneous operation. The vertical machining center offers X, Y, and Z-axis travels of 11.8", 15.8", and 16.9" respectively, with rapid traverse rates up to 1181 IPM. It features a robust 20 HP spindle motor, achieving speeds from 0 to 7083 RPM via a CT40 taper. Tool management is handled by a 20-position bi-directional automatic tool changer. The working surface of the table measures 15.8" x 23.6" with a load capacity of 396 lbs. Essential supporting equipment includes thru-spindle coolant and a high-pressure coolant system with a chip conveyor. The overall machine dimensions are 57.09" L x 100.87" D x 93.35" H, with an approximate weight of 11,000 lbs.
AXIS STROKES, X AXIS (longitudinal) 12.6", Y AXIS (transversal) 15.83", Z AXIS (vertical) 15.55", A AXIS (rotary base rotation) 0 360, U AXIS (bar positioning) 0.38", H AXIS (cutting unit vertical movement) 24.69", P AXIS (cutting unit transversal movement) 34.65", B AXIS (motorised vice movement) 31.1", ZG AXIS ...more
Brother Speedio M300X3 is a compact, ultra-high-speed 5-axis CNC machining center designed for precision milling, drilling, and turning. Its built-in tilting rotary table enables efficient multitasking and complex part production, making it ideal for medical, dental, automotive, EV, electronics, and high-volume ...more
Brother Speedio M300X3 is a compact, ultra-high-speed 5-axis CNC machining center designed for precision milling, drilling, and turning. Its built-in tilting rotary table enables efficient multitasking and complex part production, making it ideal for medical, dental, automotive, EV, electronics, and high-volume ...more
