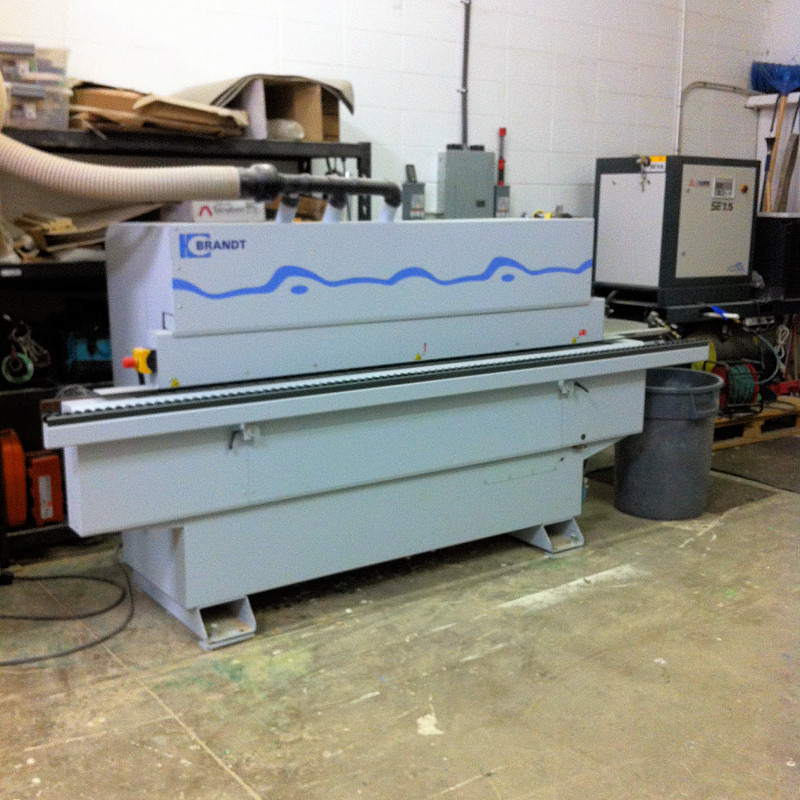

Brandt #KDN-210-B, Edgebander, 1/8" Edge, 2" panel thickness, 2.3" min. panel width, 5-1/2" min. length, 2008

Estimated monthly payment valid upon approved credit.

Request Formal Quote

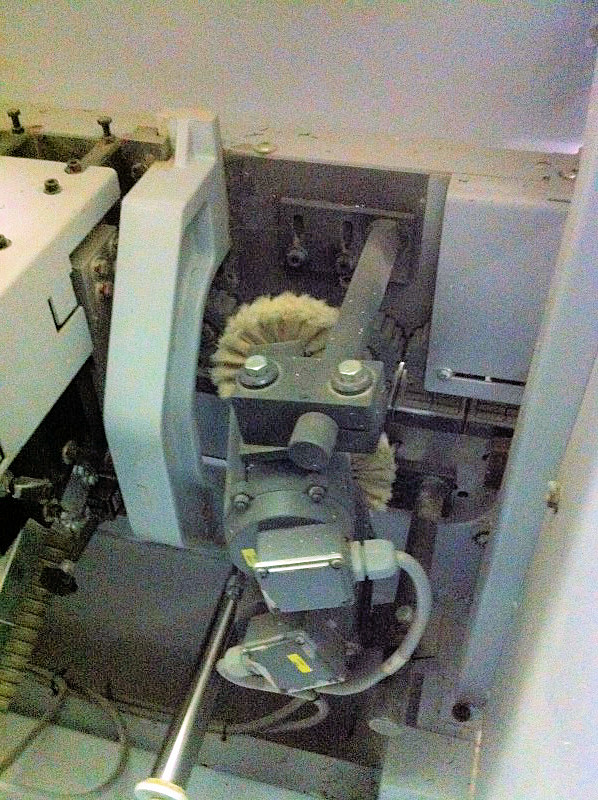

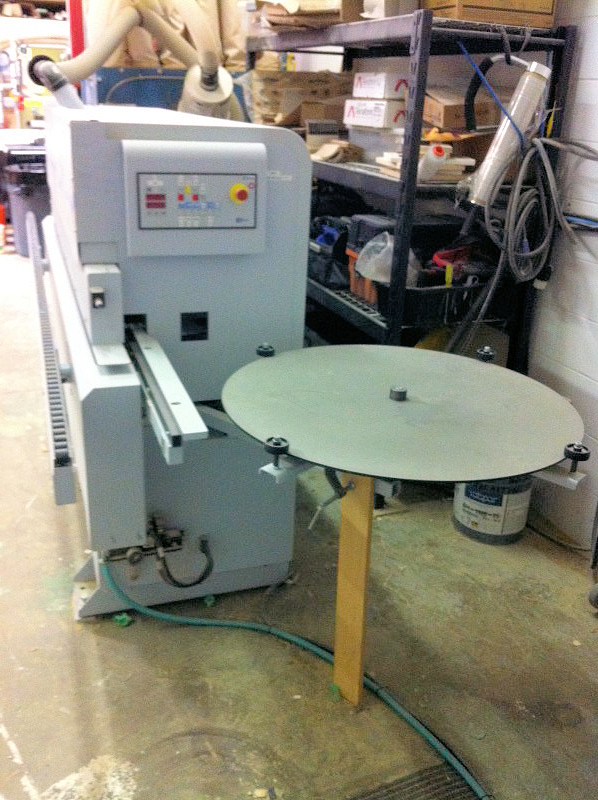

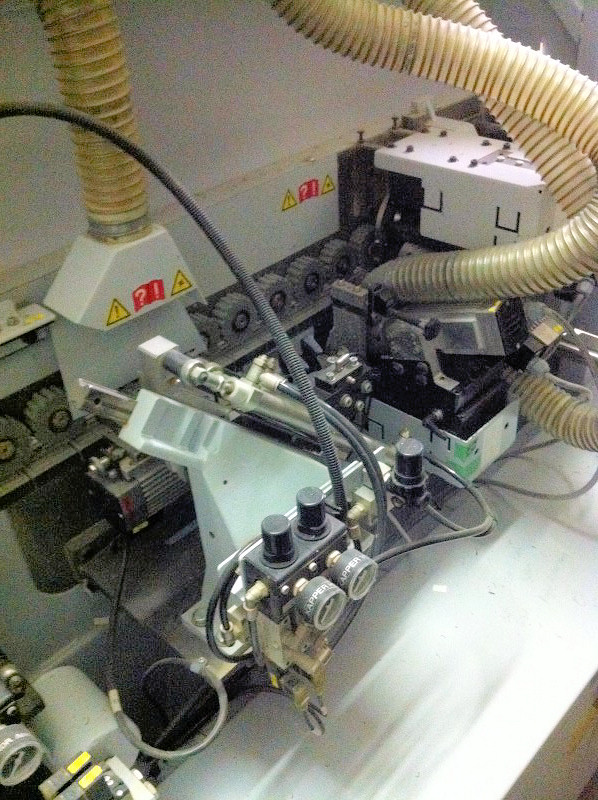

BRANDT KDN 210B Edgebander:0.4 - 3 mm (1/8") Edge thickness cap., 8 - 50 mm (0.3" - 2") panel thickness, 60 mm (2.3") min. panel width and 140 mm (5-1/2") min. length.Equipped with: -- Hot Melt granulate glue system with "Quick Melt" start-up (10 - 12 Min heat-up) with reversible rotation glue applicator roller and automatic reduction glue temperature adjustment (when idle drops to 150, 2-1/2 Min to re-activate). -- Automatic feed magazine, coil stock feeds automatically with guillotine cutoff, all strip stock are fed automatically through strip feed magazine. -- 3-Roller pressure section (1st driven, next (2) idle) w/electronically controlled and feed speed synchronized drive roll.Workstations: -- Vertical travel double-motor front & rear end trim with tilting of 0- 15 cap. (0.24 HP - 12,000 RPM motors). -- Top & bottom flush/bevel trimmers (0.36 HP - 12,000 RPM motors), bevel 0 to 15. -- Top & bottom buffing unit (0.15 HP - 2,750 RPM motors). -- Feed speed of 30 FPM. Features: -- Operator control panel at eye-level. -- Automatic height adjustment with top pressure beam for all work stations. -- Digital height indicator on holddown beam. -- Electronic motor brakes on trimmers.Complete with: 200 Hz Electronic frequency inverter, used tooling, sound enclosure w/window, and operators manual.
