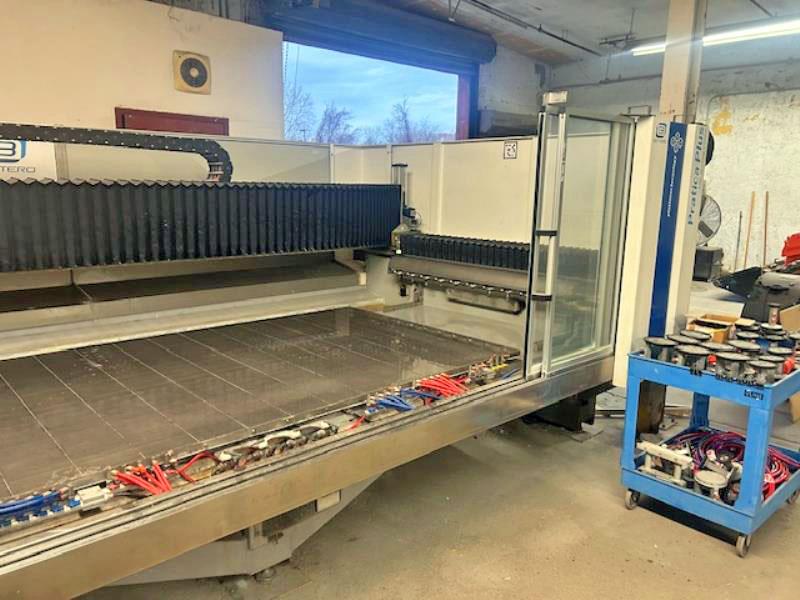

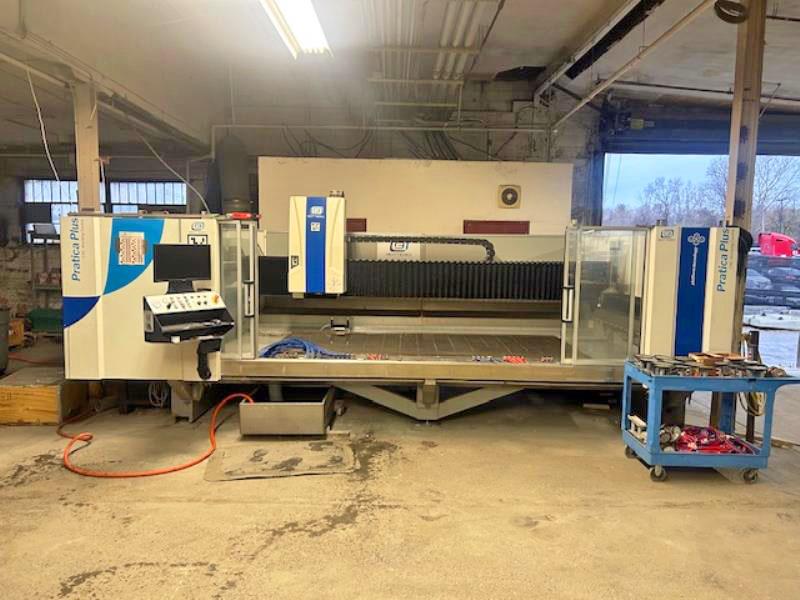

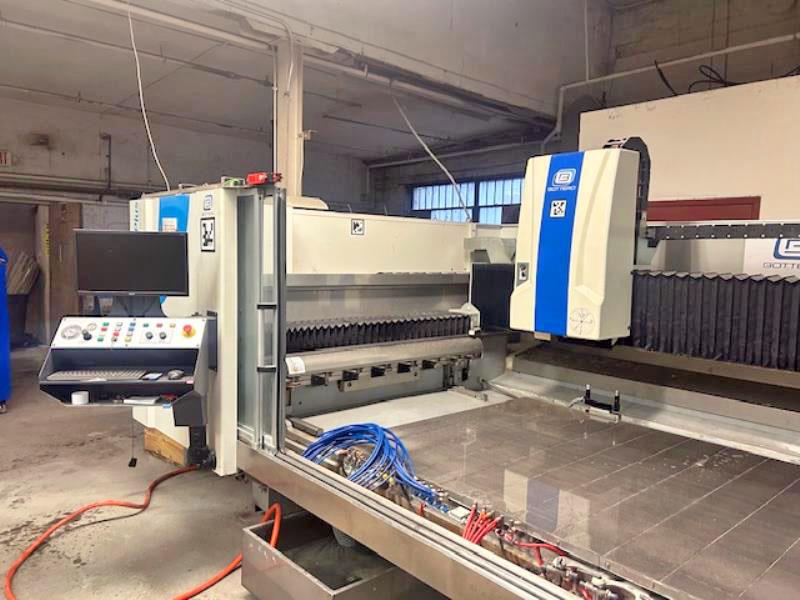

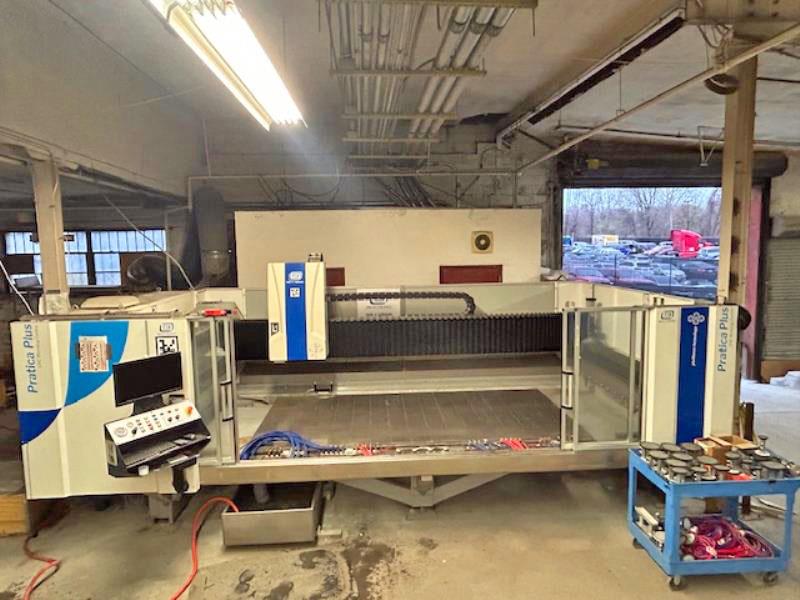

BOTTERO - Practica Plus Variant 3300: Horizontal CNC Glass Machining Center - 3,300 x 1,620 mmMultifunctional CNC Work Center features: 4-Axis and Automatic Tool Change for: Drilling, milling, edging, engraving, and beveling of glass.The standard version of the machine is able to perform the following operations on glass sheets: Milling on the sheet with a rectilinear and/or curvilinear path. Edging and radial polishing on a straight and/or curved path on the edge of the sheet. Drilling and/or countersinking perpendicular to the surface of the sheet. Writing and drawing on the top side of the sheet. Specifications ● Max. glass size: 3,300 x 1,620 mm ● Glass thickness: 3 - 25 mm ● Z-axis stroke: 270 mm ● Tools: 13 + 13 positions ● Spindle: 30 kW ● Max Speed: 10,000 RPMDimensions: 6,490 x 3,520 mm (256"; x 139";)Weight: 4,800 kG (10,582 Lbs)Functions: ● Edging & Polishing ● Upper & lower Drilling ● Milling ● Writing & decoration on top surface ● Wring & decoration on edges ● Shaped cutting with disk and straight cutting with gear ● Flat edging with cup wheels ● Engraving ● Beveling from 0 to 45Features ● Techno-human software program in Windows platform with: CAD/CAM. ● (4) Interpoled axis. ● Electrospindle including: Self-ventilated air cooling & pressurized circuit ● Sheet clamping system on the worktable consisting of: Vacuum cups of different types to be able to adapt to a wide range of different shapes. ● Retractable tool magazine located laterally to the worktable. ● Drilling bit dresser + software program to allow the automatic redressing of drill bits. ● Cleaning edge kit for polishing wheels + software program.Included Options● 4th Axis upgrade● Upgraded water pump and tank● Laser measuring● 2-Zone Vacuuming System● Additional 4th-Axis option● Cerium System● (2) Roller tables● Power TransformerNOTE: Machine is in excellent condition and is ready for immediate shipment. Includes approx. ...$ 5,000 in extra tooling. NOTE: Ask for EX-FACTORY’s “Full-Service Logistics"; from suppliers to your Door. …Packaging, Loading, Freight, & Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
Make: Inkcups, Model: HELIX, Year: 2018, Machine Location: Upon Request, Used Inkcups Helix Glass Printer with Glass Flame Treater, 2018:, Previously used for printing on 750mL glass bottles, 64oz glass growlers, and 16oz glass pint glasses. Can also print on aluminum., – Inkcups X Series Inkjet Helix CMYK Glass ...more
