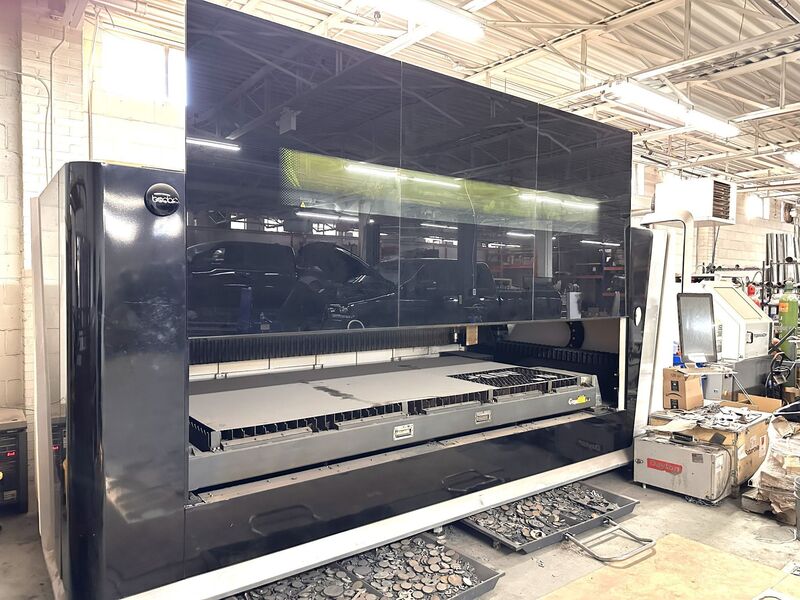

Bodor #i7, CNC laser cutter, 3000 watt, dust collector, 2023

BODOR i7 CNC LASER CUTTER, 3KW, NEW 2023 DUST COLLECTOR
Intelligent Function
i7
Time Savings Remnant Typesetting
High speed cutting expert database
Bodor lightning perforation technology
Automatic adjustment of cutting gas pressure
O2
Laser cutting technology expert database

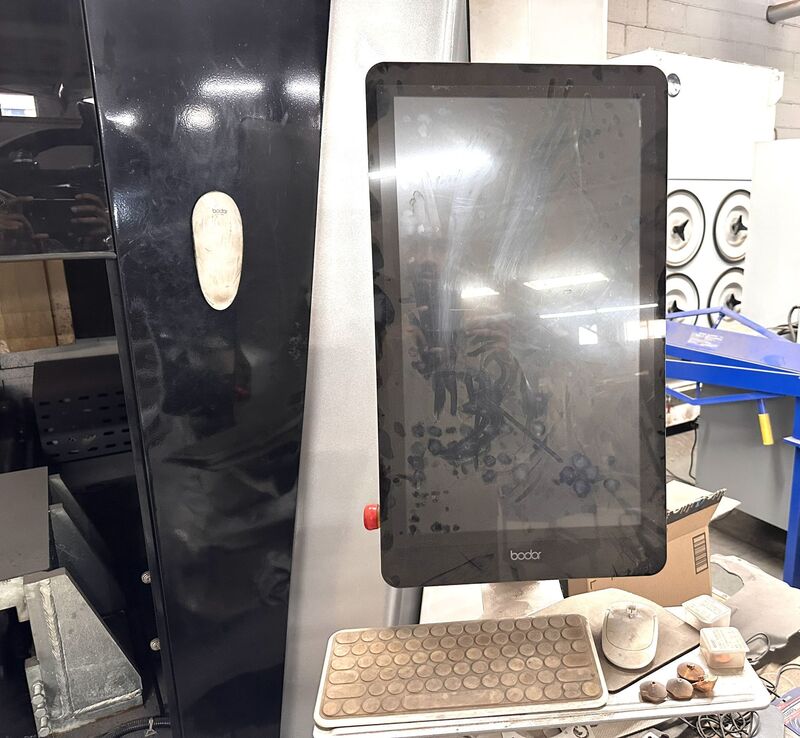

Touchscreen Display
Auto-focus of laser head
Quality Cutting Active anti-collision function
Intelligent anti-shake of sheet edge
High quality Cutting Expert Database
Ergonomic Remote Control
Gas-saving steady flow nozzle
Anti-slag Protection
Cost Savings Bodor Intelligent Design Software
Intelligent maintenance reminder
Services WIFI internet connection
Bodor cloud service
Performance
i7
Max. Linkage speed 91m/min
Max. acceleration 1.5G
Table load bearing 900kg
Working table size(mm) 3048*1524mm
Machine overall dimensions(mm) 4955×2320×2200mm
Requirement for sheet Plate thickness0.8mm
Overall weight 4980kg
Z axis travel 120mm
Positioning accuracy 0.05mm/m
Repositioning accuracy 0.03mm
30mm roundness 0.15mm
30mm adjacent side dimension difference 0.06mm
190mm adjacent side dimension difference 0.15mm
190mm diagonal size difference 0.20mm
Optical System
laser head BodorGenius
Laser source BodorPower
Mechanical System
Machine bed Mortise-and-tenon type plate welded segmented bed
Bed functions Easy-access sliding bed
X-axisY-axisZ-axisServo motor and driver Bodor
Linear Rails Bodor
Lead Screw Bodor

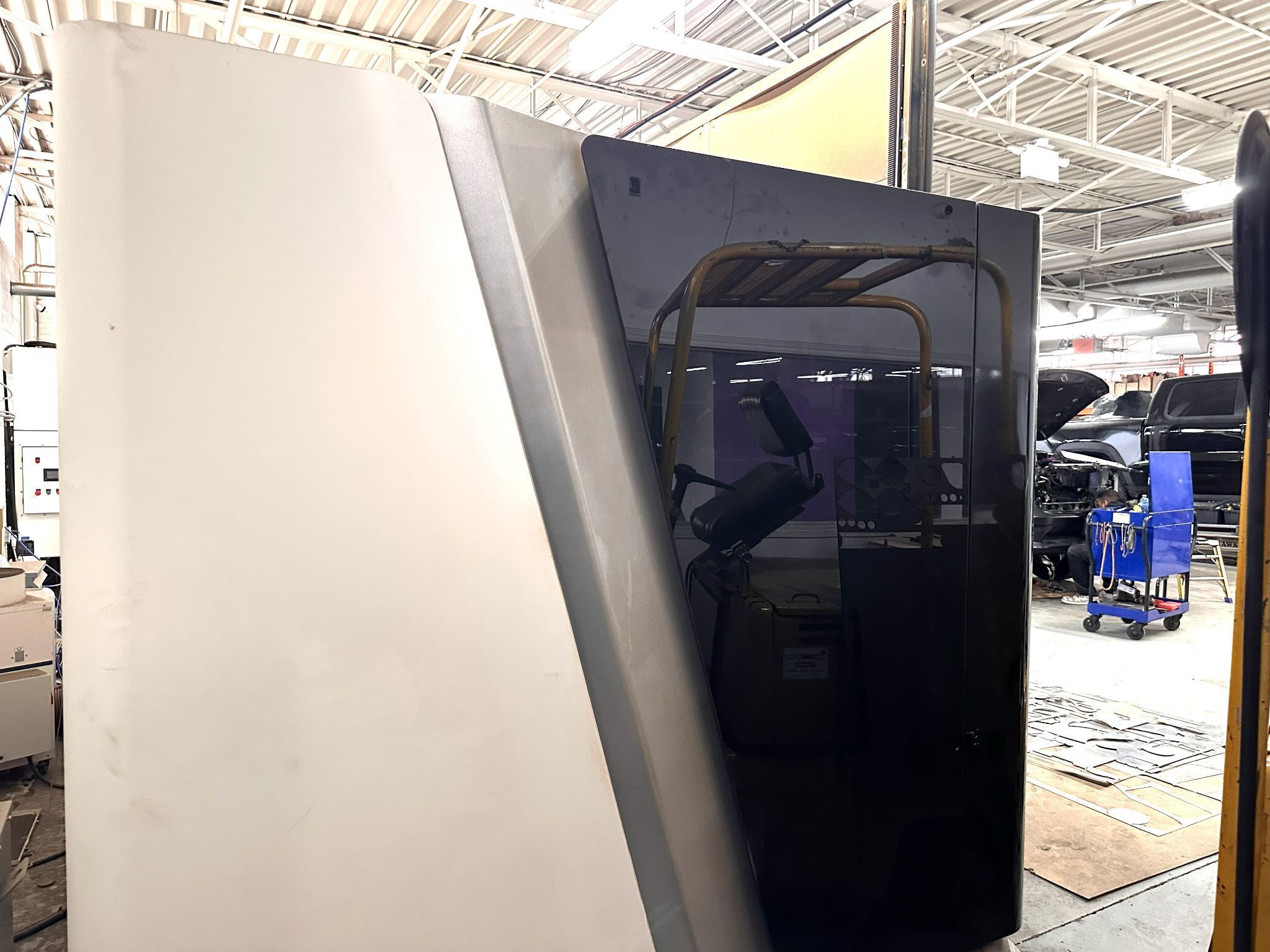

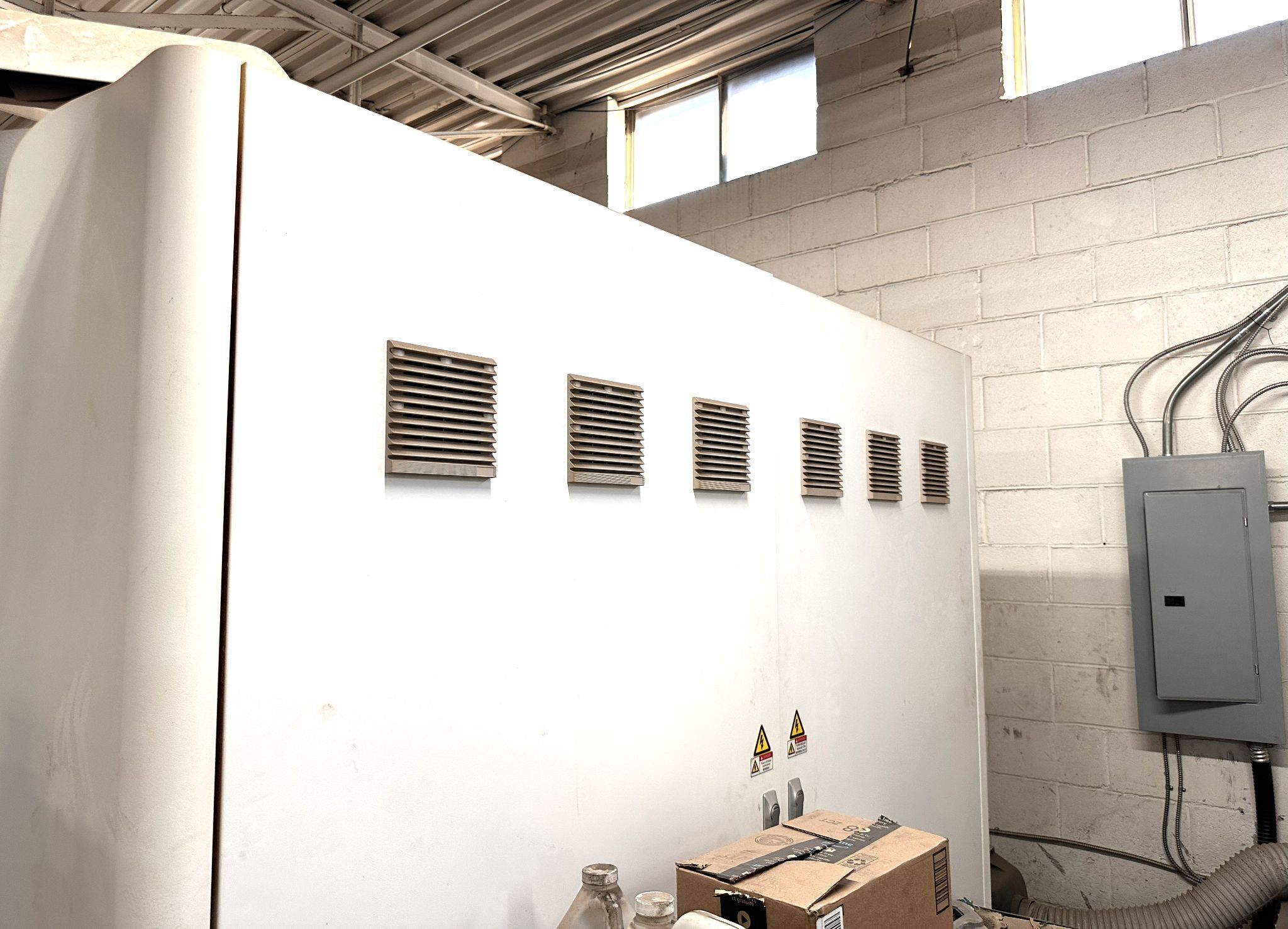

Protective Enclosure
Electrical System
Control system BodorThinker
Display size 21.5 inches
Intelligent alarm
Door-open Protection
Peripheral System

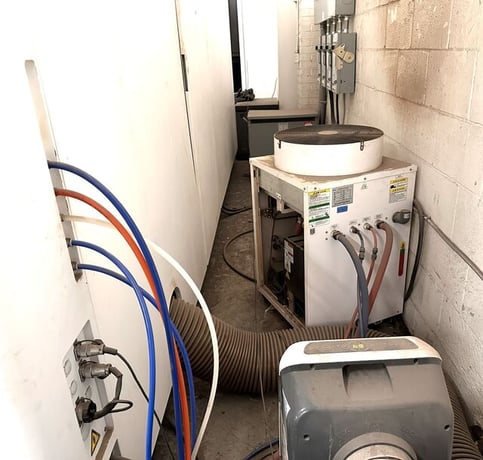

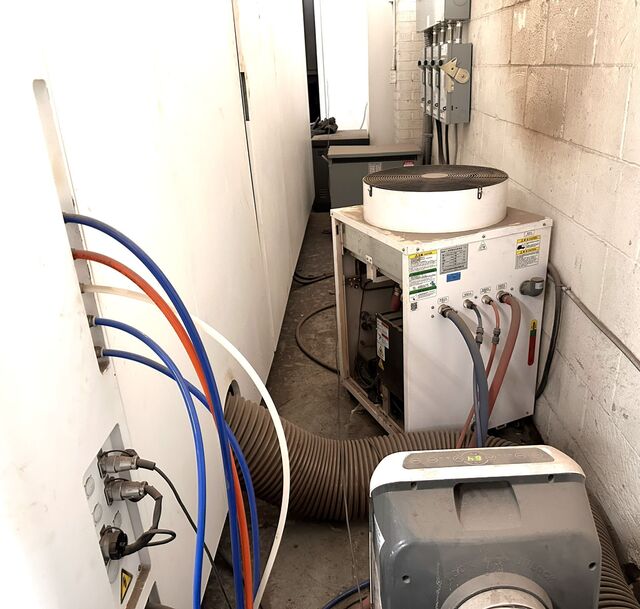

Water Chiller

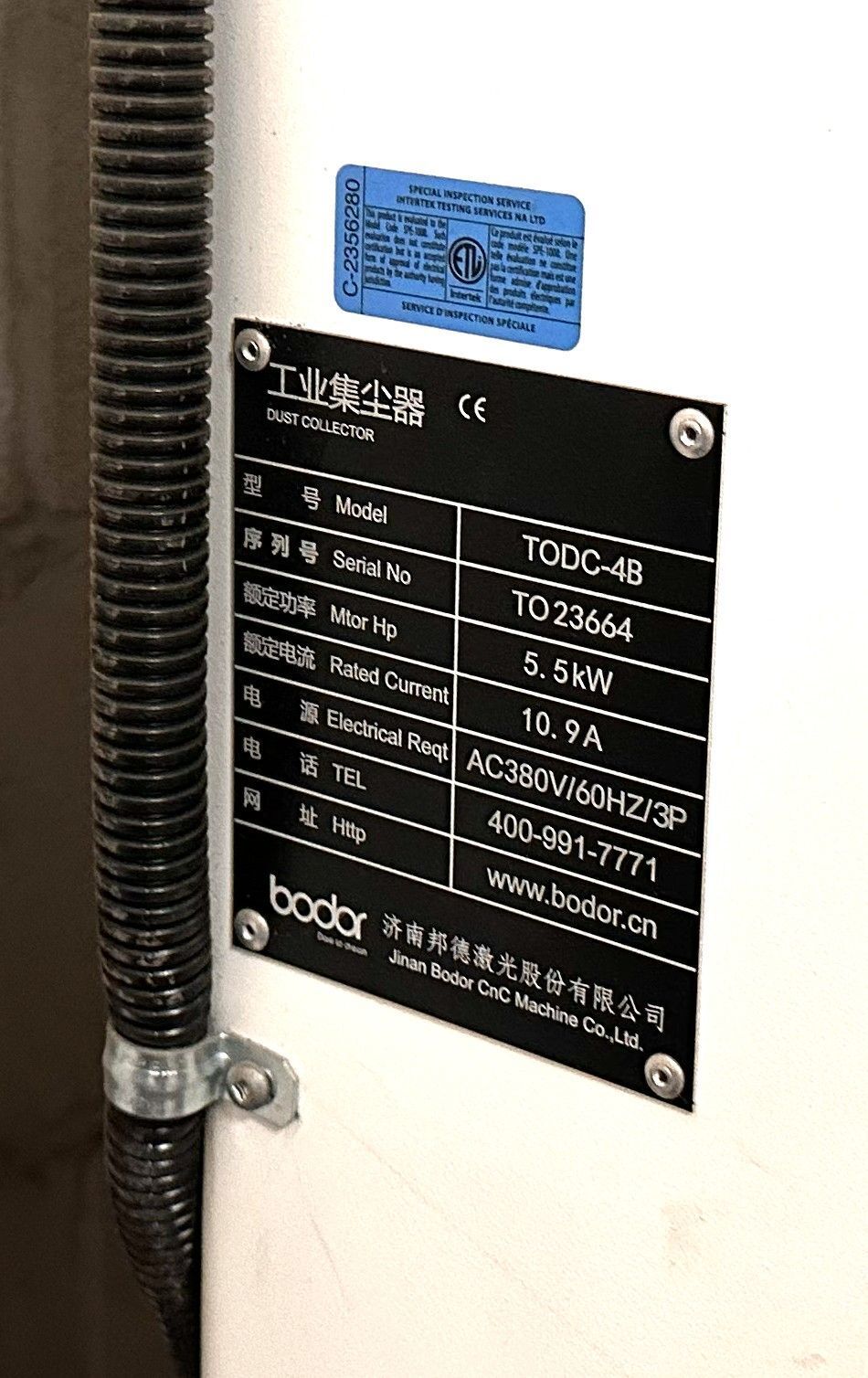

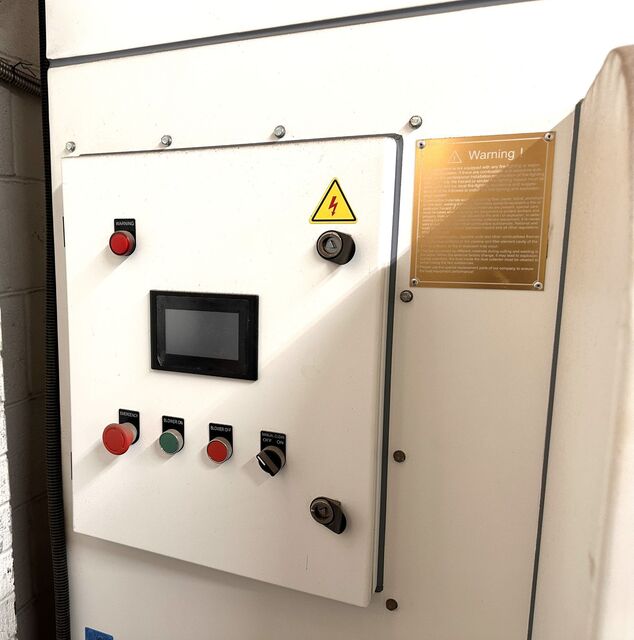

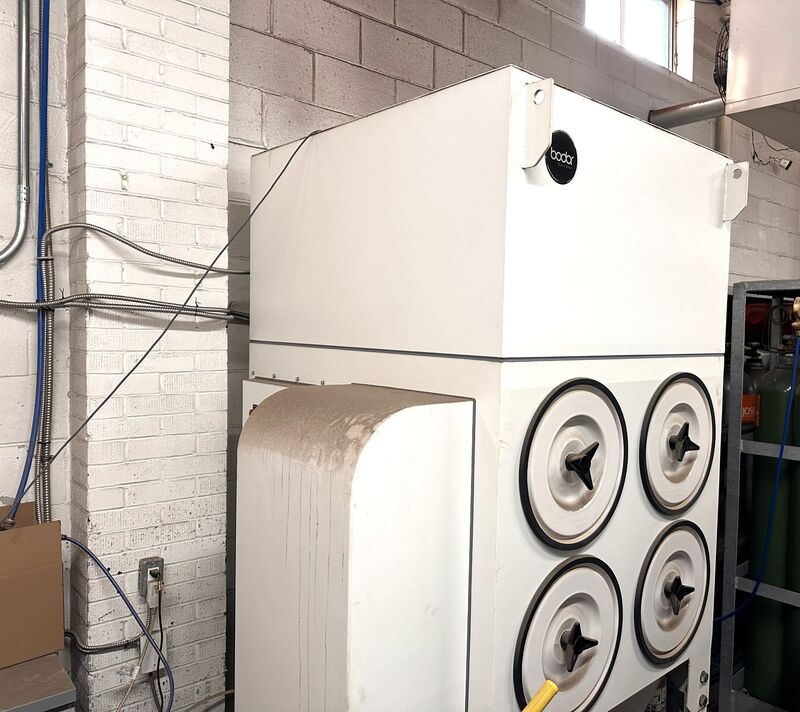

Fume Dust Collector
Other Parameters Configuration
Maximum Cutting Capacity
Carbon steel 20mm
Stainless steel 18mm
Aluminum 16mm
Brass 10mm
