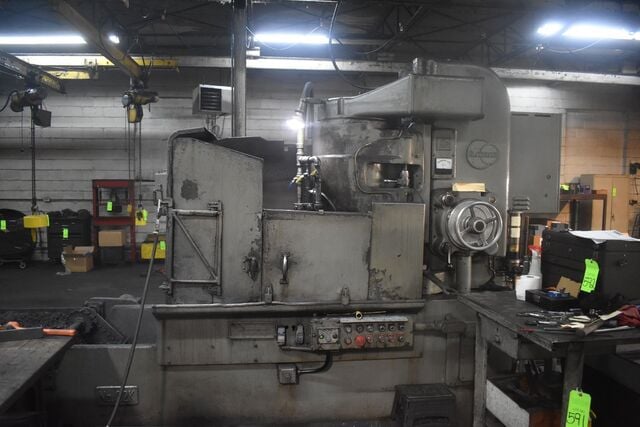

Blanchard #22K-42, rotary surface grinder, 48" diameter x 24" H Range, 42" chuck, 24" vertical Range, 50 HP, 720/750 RPM, 1967

BLANCHARD 22K-42 rotary surface grinder features a 42" magnetic chuck and 50 hp spindle, handling up to a 48" swing. Ideal for demanding tasks, it maintains reliability with its robust 1967 build. Perfect for those needing sturdy vertical grinding.
#22K-42 BLANCHARD EXTENDED VERTICAL
WET BASE ROTARY SURFACE GRINDER
S/N 12373 Year: 1967
STANDARD SPECIFICATIONS
RANGE
48" Swing diameter x 24" high over 42" diameter chuck with new segments.
WORKTABLE

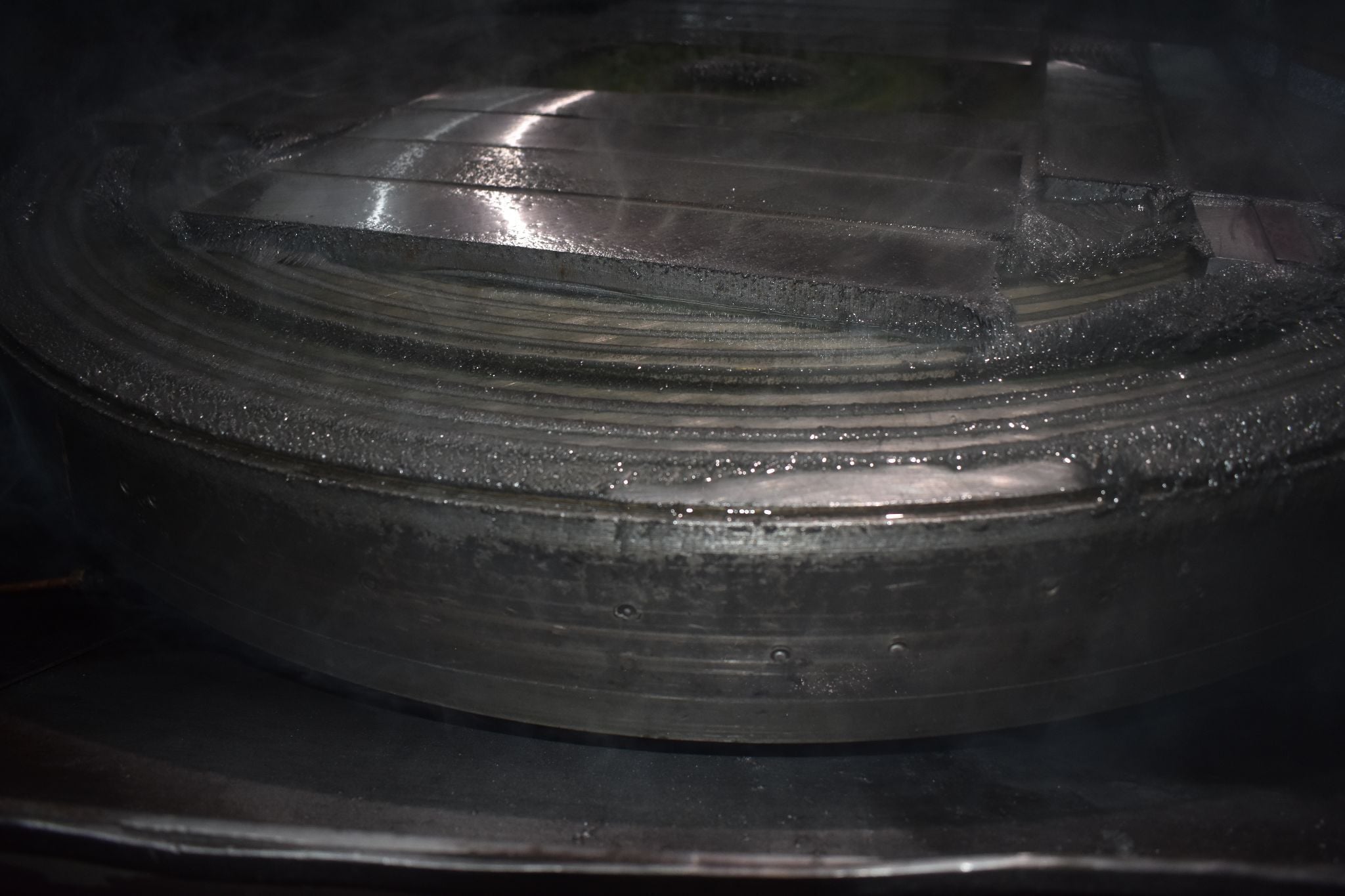

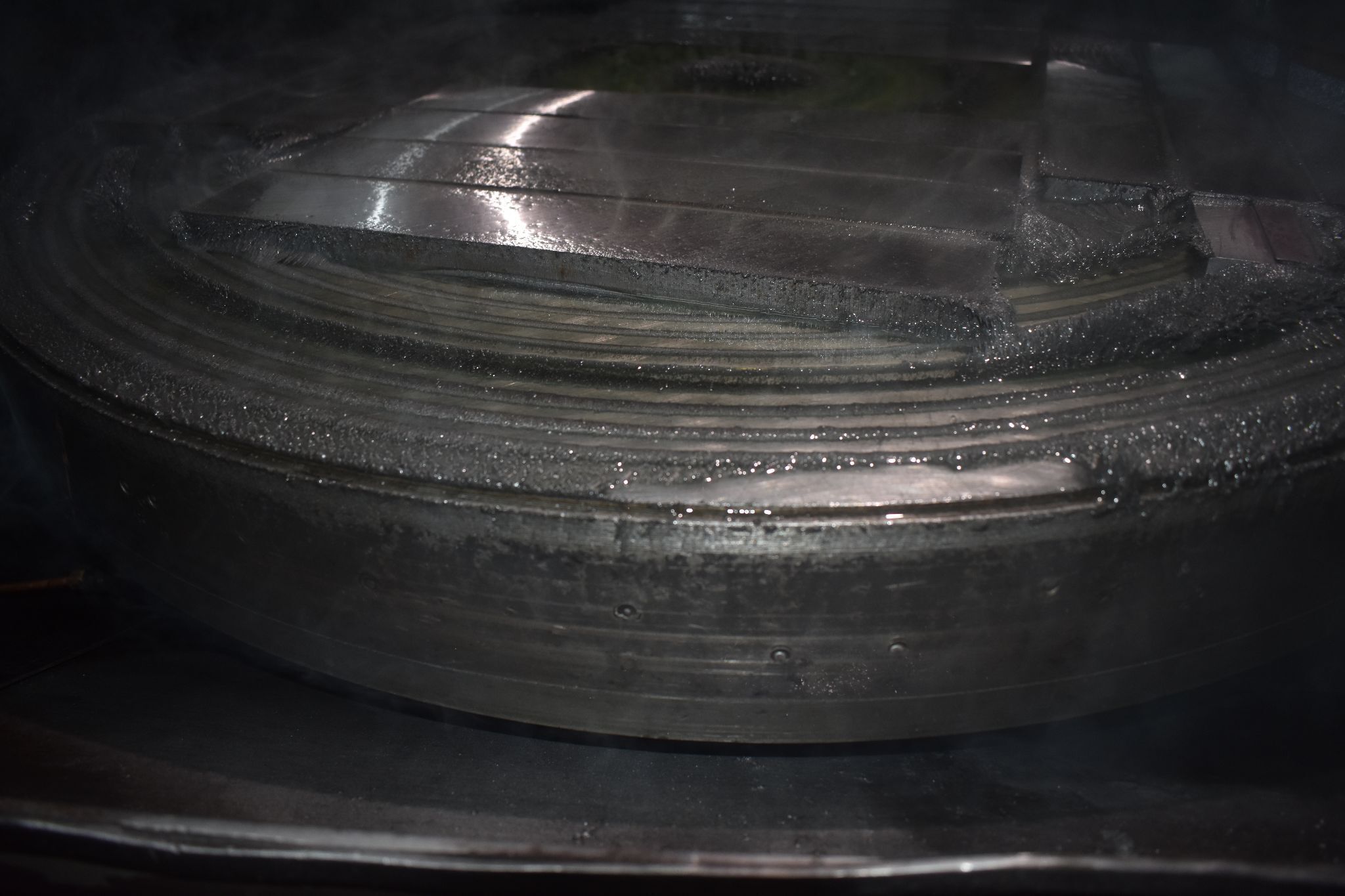

One piece 42" diameter magnetic chuck. 1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22" Cortland chuck segments, each 11 1/4" x 2 1/4" x 6" long.

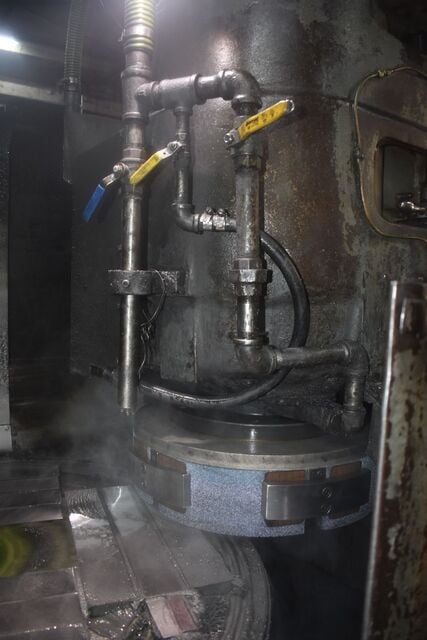

WHEEL
50 H.P. Spindle motor, 720 R.P.M. on 60 cycles, 750 R.P.M., 60 cycles 5,7, 10, 15, 20 and 27 R.P.M. on 50 cycles.

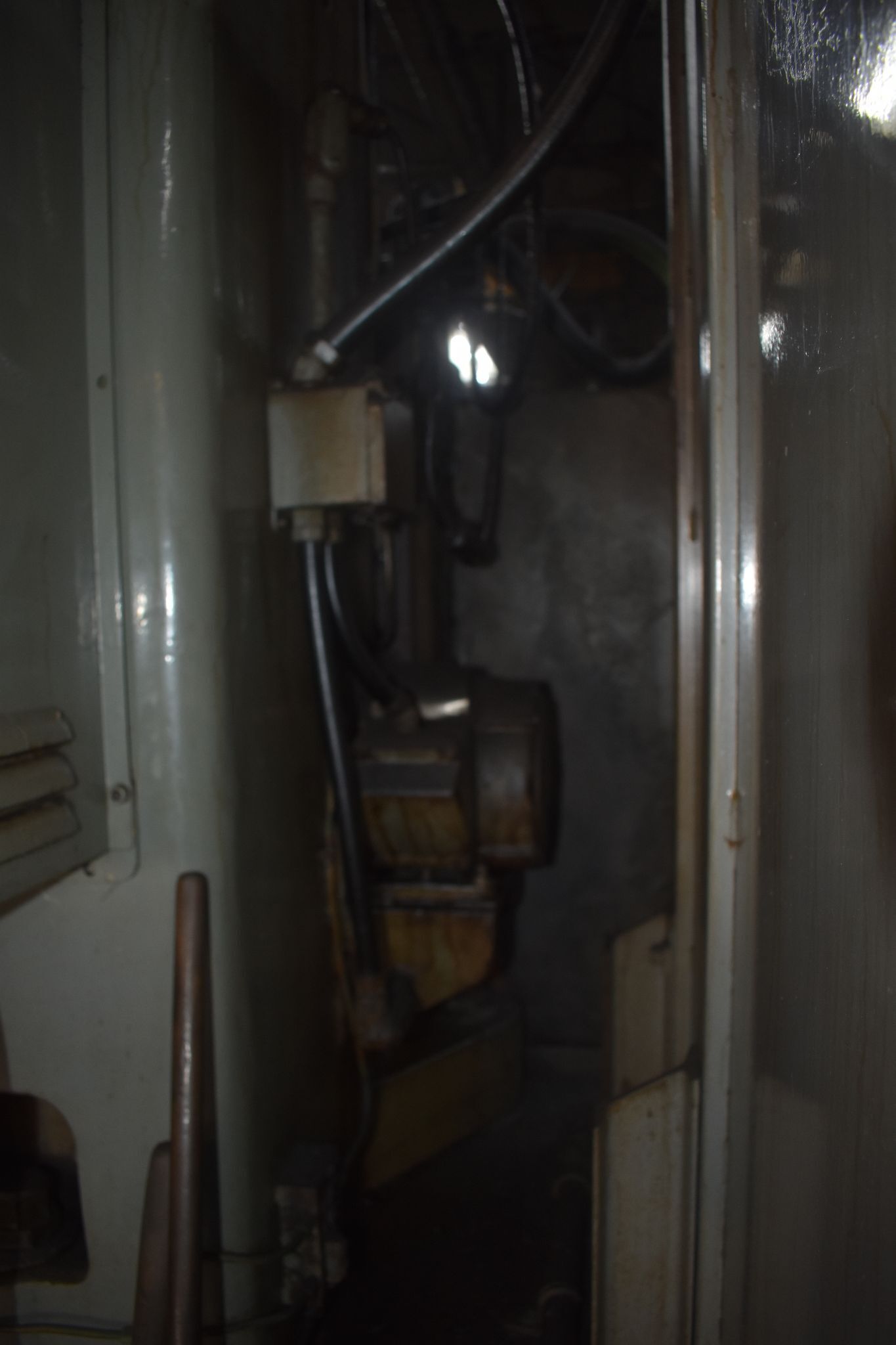

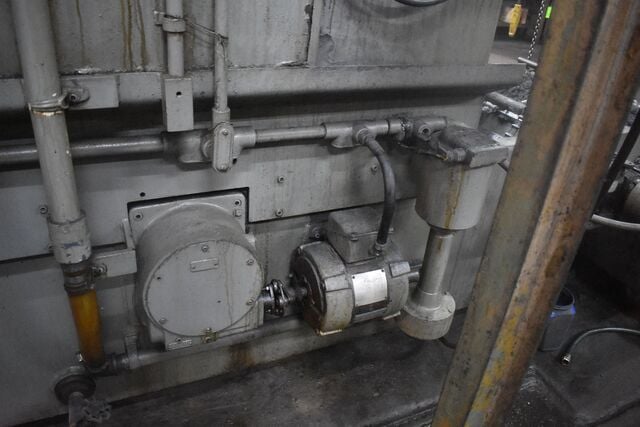

OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900 R.P.M. (60 cycles).
Wet – 125 gallon tank in base.
FLOOR SPACE AND HEIGHT
11’ 11" X 8’ 4"
Maximum height…………………………………………… 9’ 1"
Minimum height……………………………………………. 8’ 7"
WEIGHT
Domestic shipping weight………………………………….. 19,000 pounds
EQUIPMENT AND FEATURES
42" One piece magnetic chuck.
50 H.P. 220/440 volt.
Wheel dresser.
Load meter.
Guards.
Wet base.

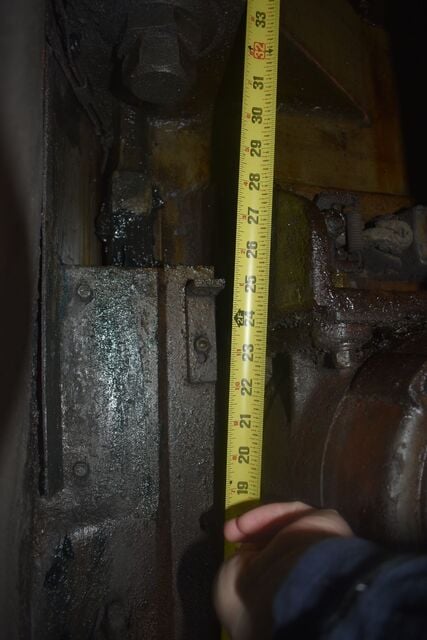

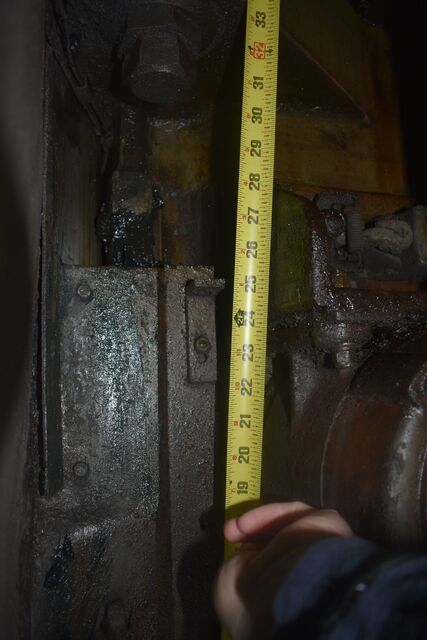

24” Vertical.
5-Segment chuck.
Wet base W/ drag out system.
Specifications are deemed accurate, however, subject to verification or prior sale.
