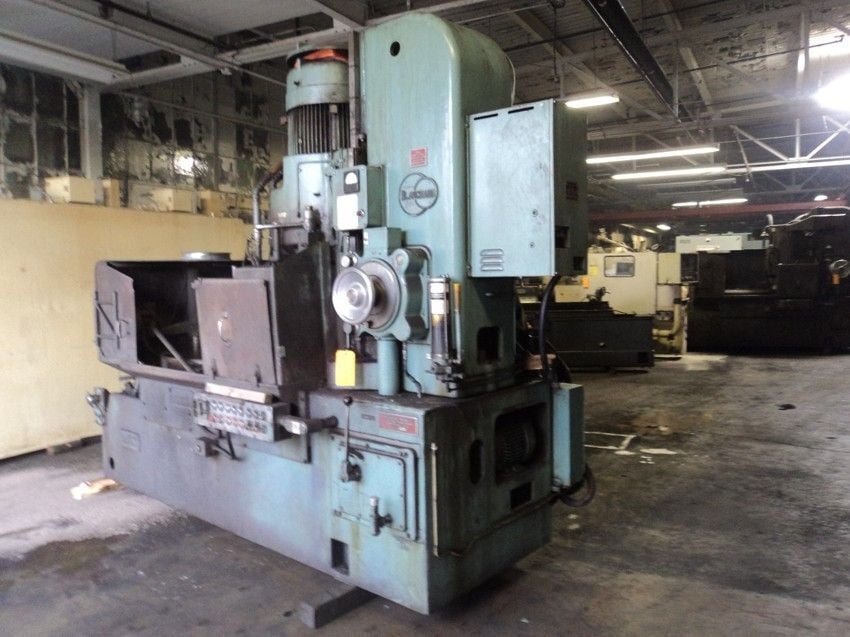

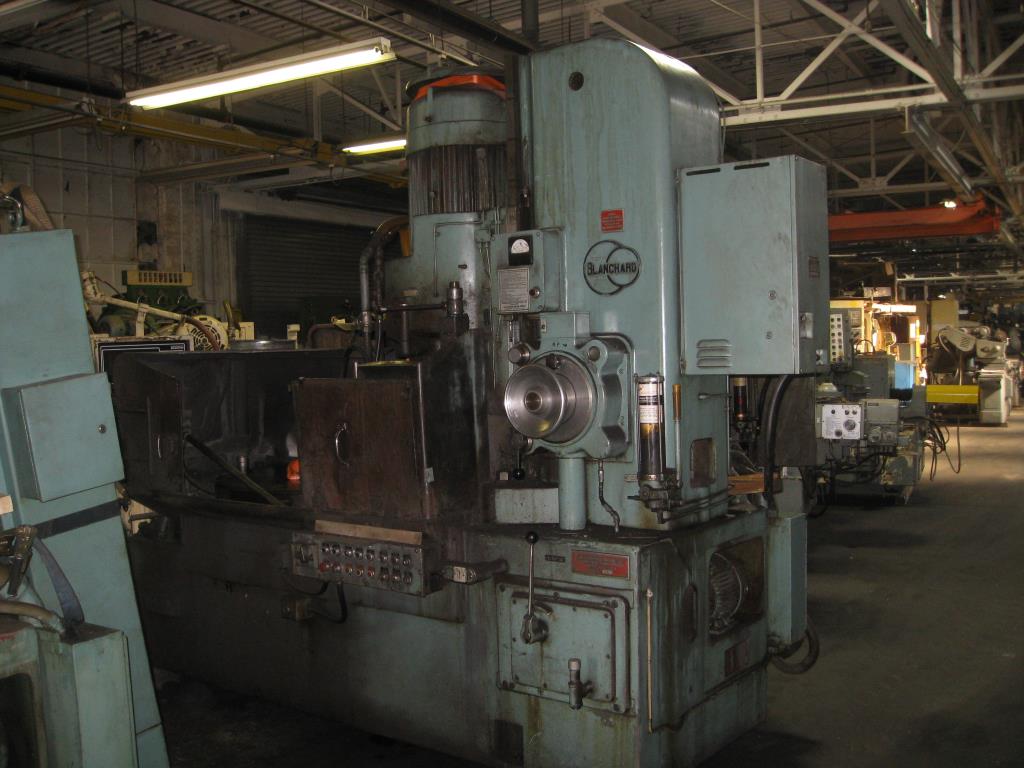

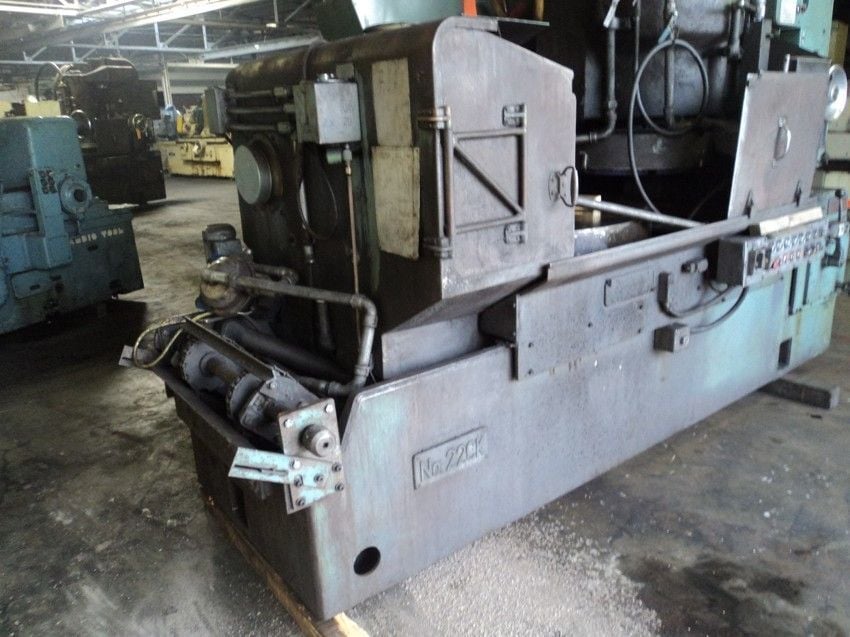

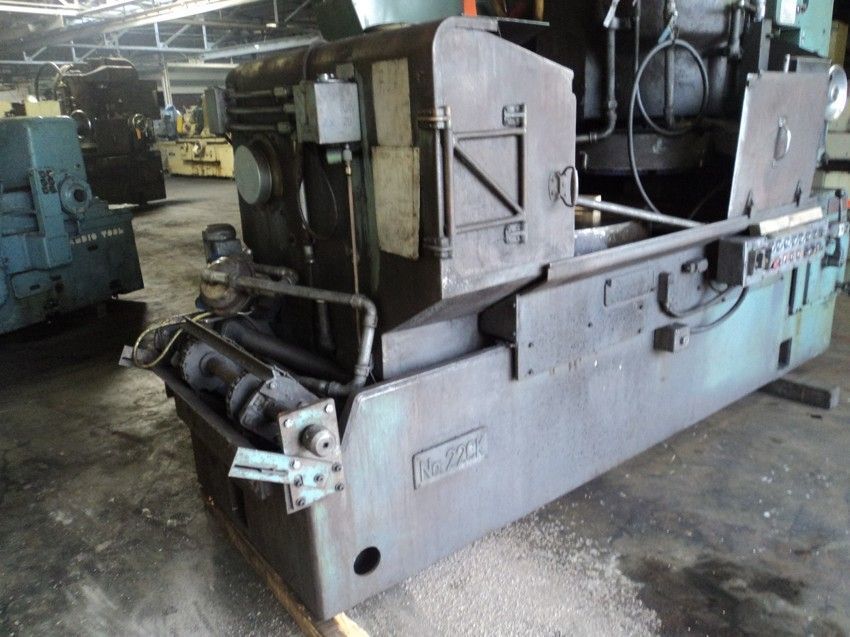

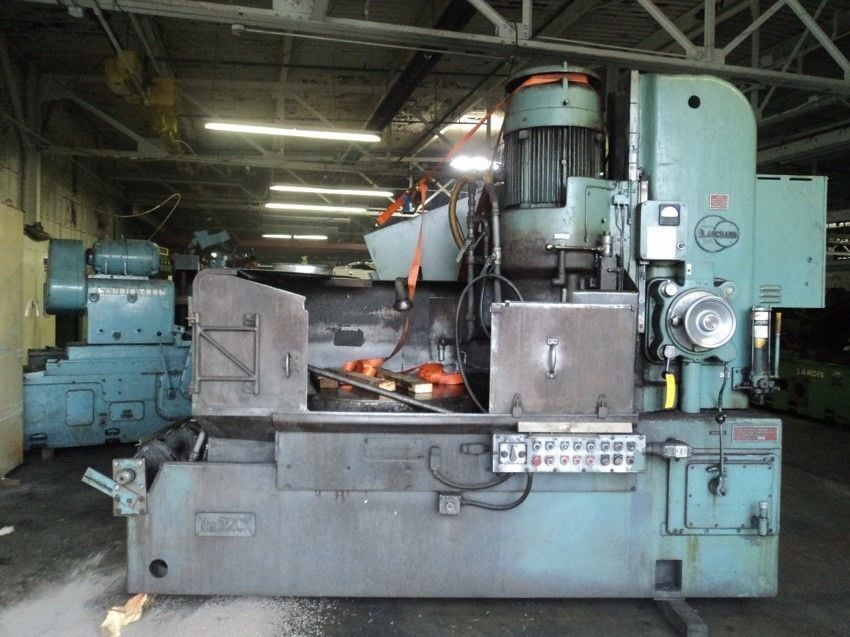

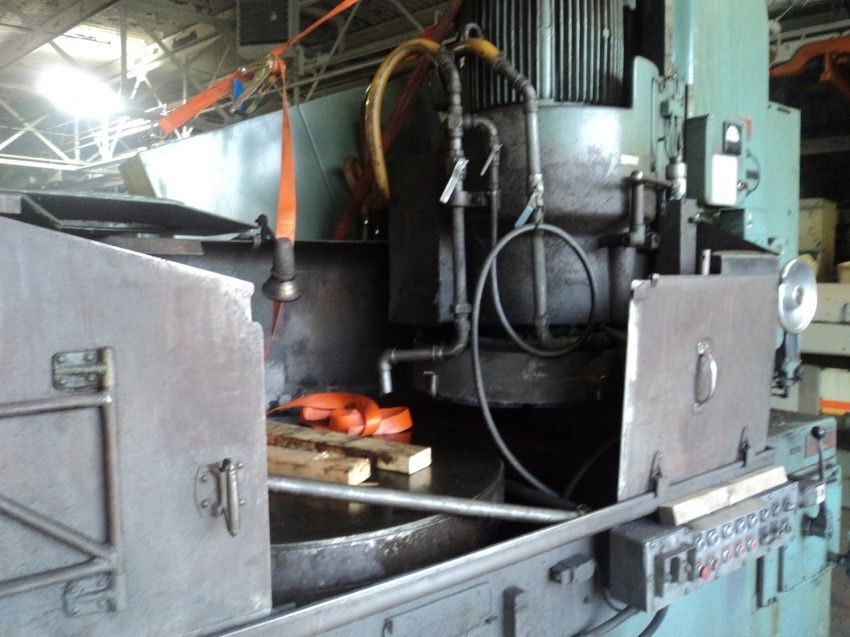

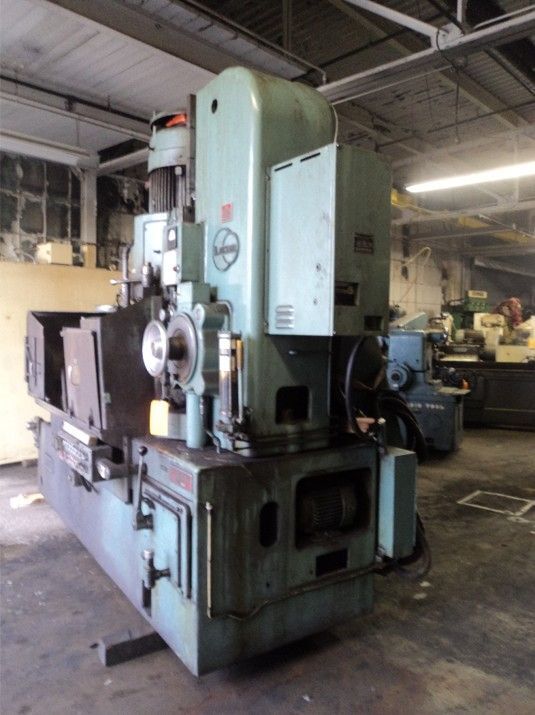

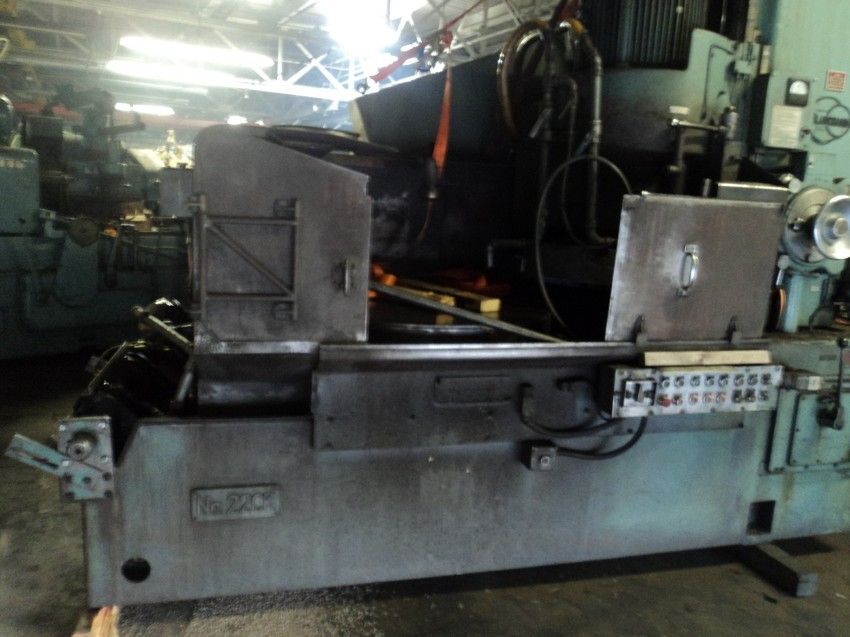

Blanchard #22CK-42, Extended vertical Wet Base rotary surface grinder, 48" diameter x 24" H Range, 42" chuck, 100 HP, 1480 RPM, 1970

Estimated monthly payment valid upon approved credit.

Request Formal Quote

22K-42 Blanchard Rotary Surface Grinder, 100 HP Geared Head, 42" Mag Chuck 1/4" Top Plate, Dresser
#22CK-42 BLANCHARD EXTENDED VERTICAL
WET BASE ROTARY SURFACE GRINDER
S/N 13501 Year:1970
STANDARD SPECIFICATIONS
RANGE
48" Diameter x 24" high over 42" diameter chuck with new segments.
WORKTABLE
One piece 42" diameter magnetic chuck.1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22 Cortland chuck segments, each 11 1/4" x2 1/4" x 6" long.
WHEEL
1480 RPM, 50 Hz, 380 Volts.
OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900R.P.M. (60 cycles).
Wet– 125 gallon tank in base.
FLOOR SPACE AND HEIGHT
11’ 11 X 8’ 4
Maximum height…………………………………………… 9’ 1
Minimum height……………………………………………. 8’ 7
WEIGHT
Domestic shipping weight………………………………….. 19,000 lbs.
EQUIPMENT AND FEATURES
42 One piece magnetic chuck.
Wheel dresser.
Load meter.
Guards.
Conveyor in base.
Bijur lube.
5 Segment chuck.
24” Vertical.
22” Segmented chuck.
100 H.P. Geared wheel head, 1480 R.P.M.
Specifications are deemed accurate, however, subject to verification or prior sale.
