Description

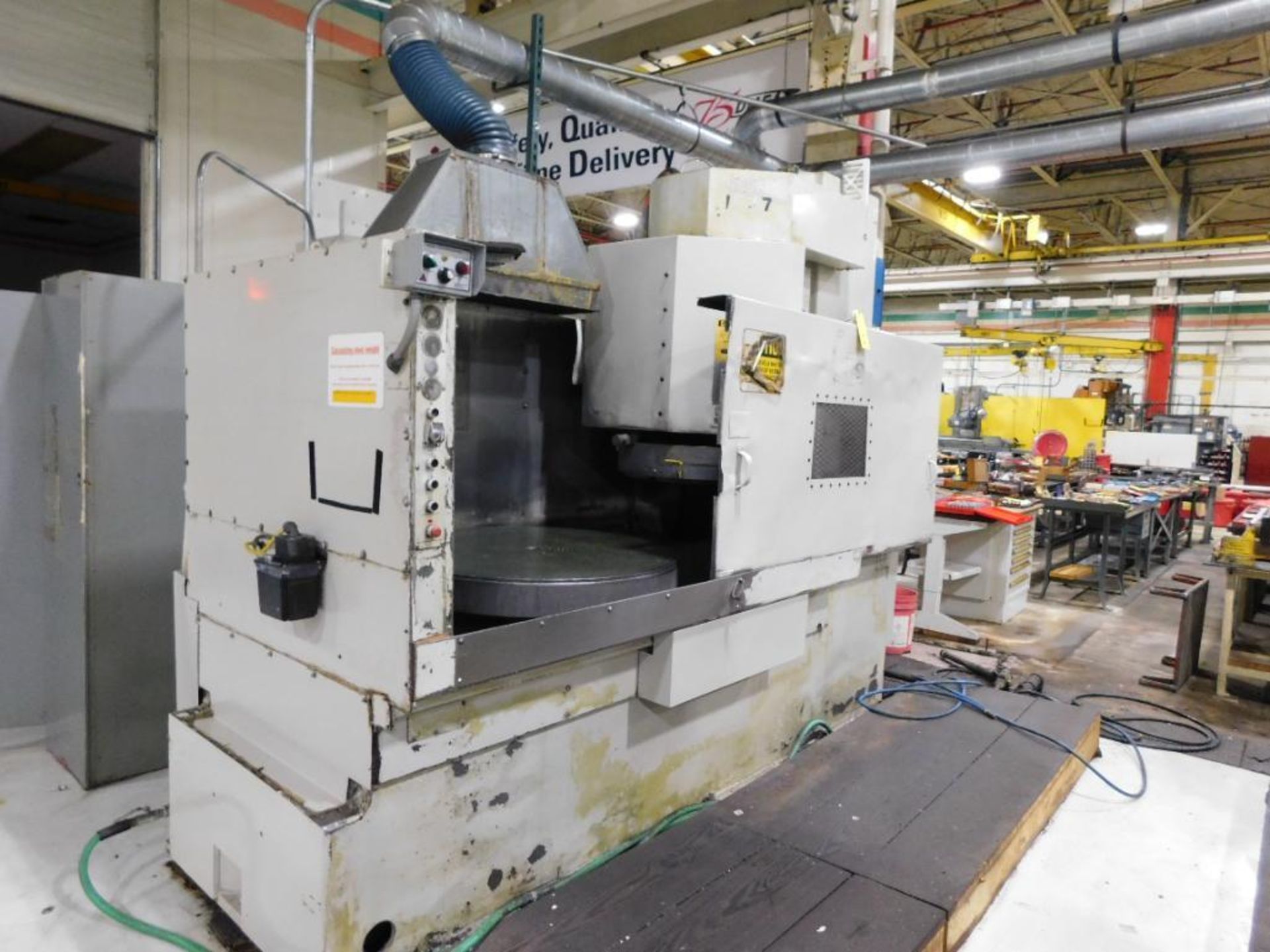

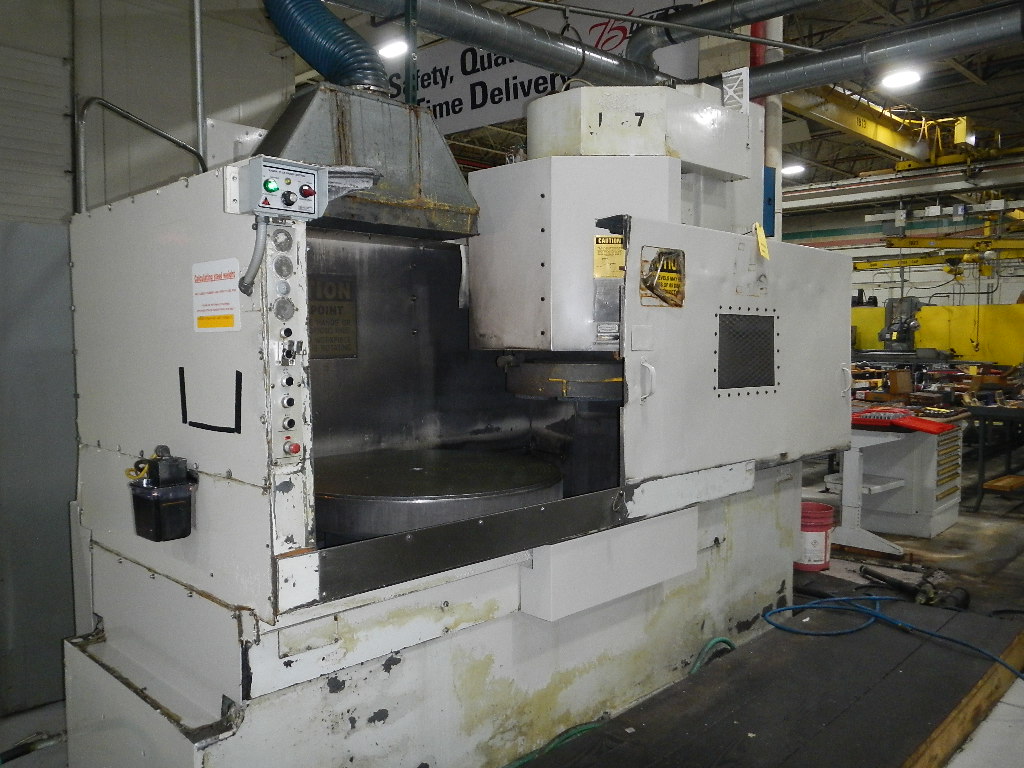

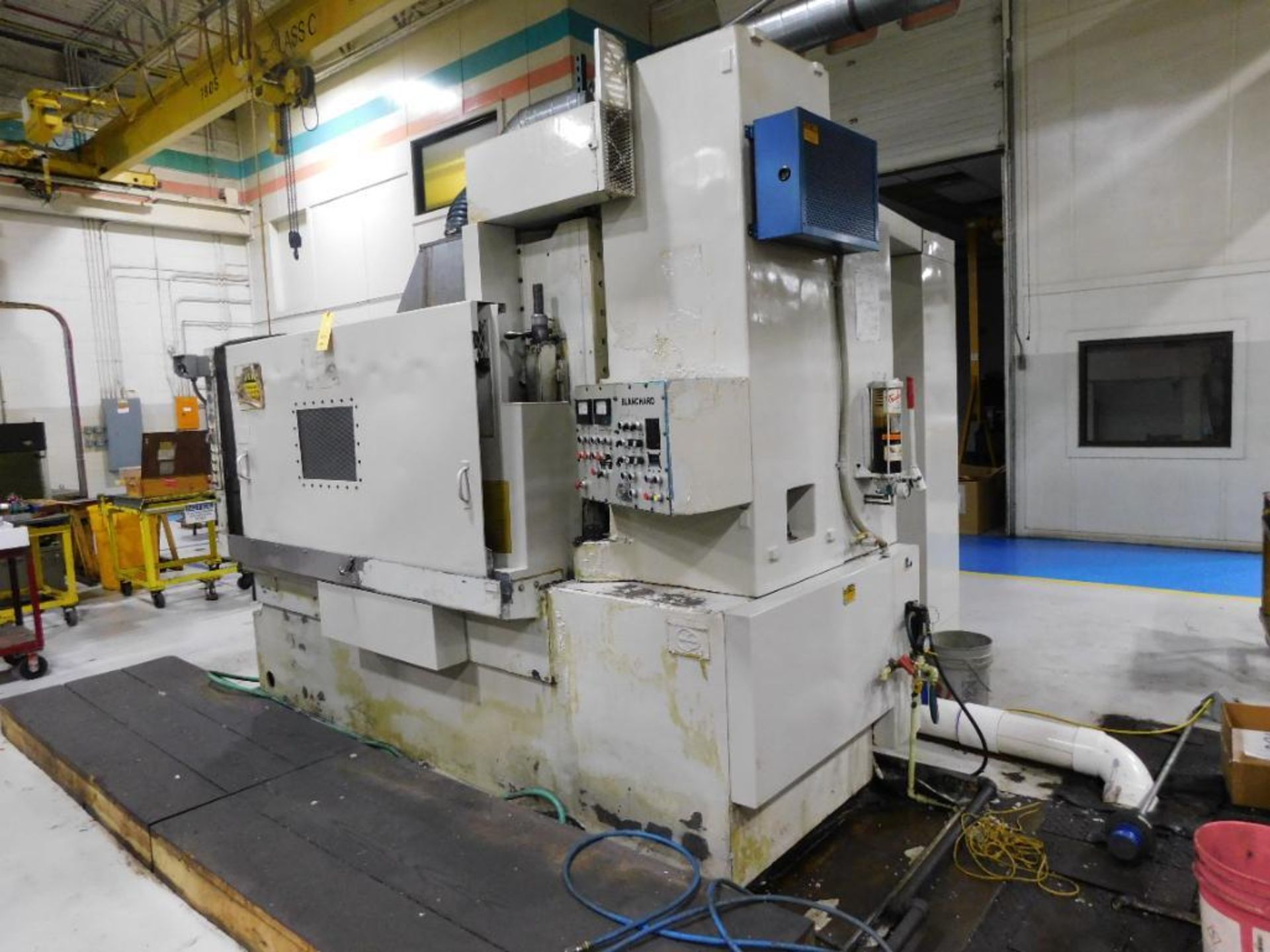

42" BLANCHARD ROTARY SURFACE GRINDER
WITH PROGRAMMABLE AUTO CYCLE CONTROLS
MODEL:… 22AD-42… S/N: 15756… NEW: 1988
SPECIFICATIONS:
CHUCK DIAMETER .................... 42"
SWING INSIDE GUARDS ............... 48"
VERTICAL RANGE UNDER NEW WHEEL .... 24"
MAXIMUM LOAD ON CHUCK .............″,000 LBS
GRINDING WHEEL DIAMETER ........... 22"
GRINDING WHEEL SPEED .............. 720 RPM
CHUCK SPEEDS (6) .................. 6 TO 24 RPM
FEED SYSTEM:
RAPID TRAVERSE RATE ............... 20" IPM
WHEELHEAD JOG RATE ................ 0.100" IPM
COARSE FEED RATE .................. 0.001" TO .100" IPM
COARSE FEED MODE .................. CONTINUOUS/IMPULSE
FINE FEED RATE .................... 0.001" TO .010" IPM
COARSE TO FINE CHANGEOVER POINT ... 0 TO .009"
SPARKOUT TIMER .................... 0.1 TO 10 MINUTES
APPROXIMATE DIMENSIONS .......... 124'L X 8'4"W X 9'7"H
APPROXIMATE WEIGHT ................ 16,000 LBS
EQUIPPED WITH:

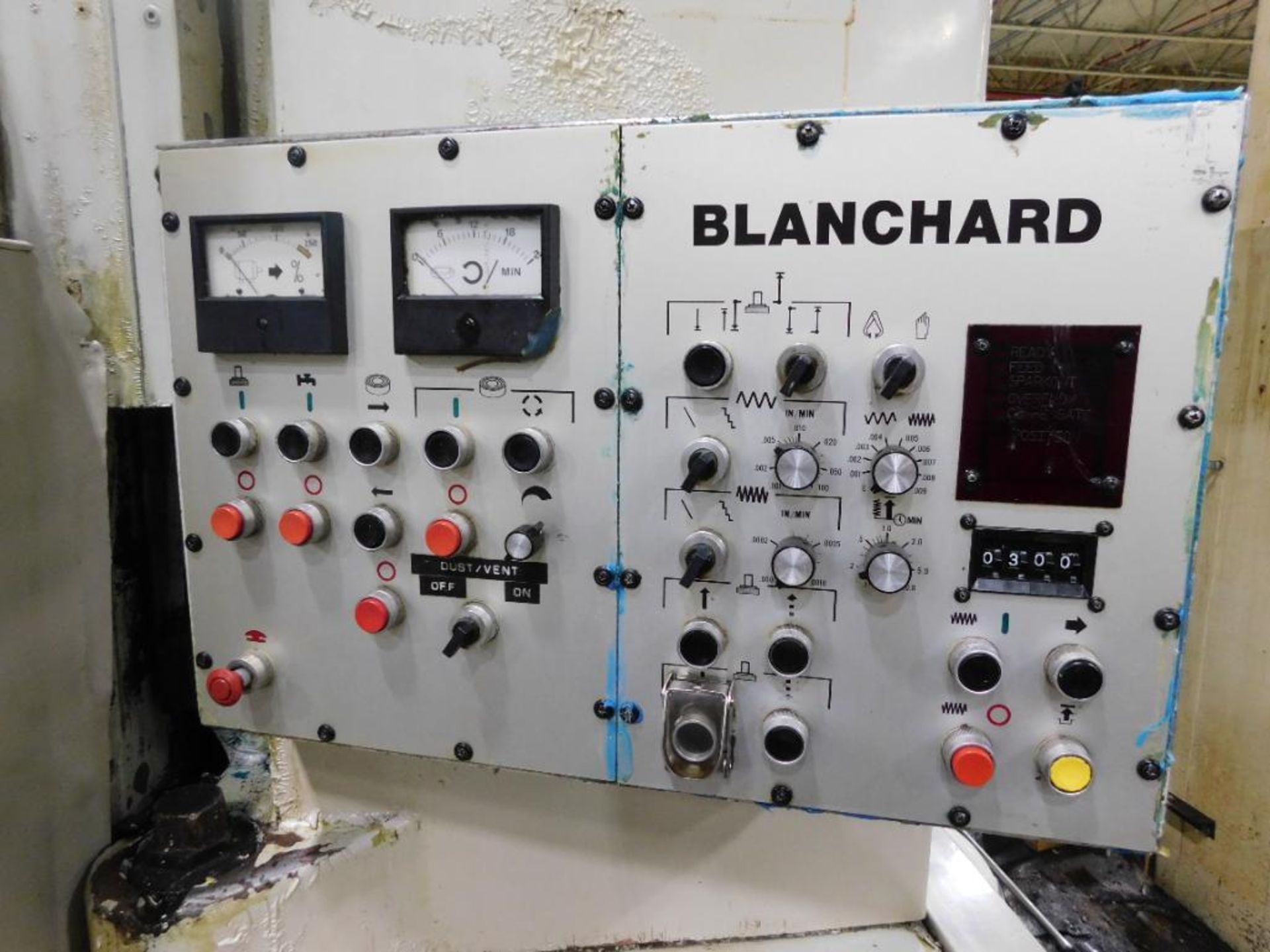

-AUTO-CYCLE PROGRAMMABLE CYCLE CONTROL W/DIGITAL DISPLAY
-"A" SERIES MACHINE W/ALL ELECTRIC DRIVES
-HARDENED AND REPLACEABLE BASE WAYS
-50 HP″/60/230-460 VOLT SPINDLE MOTOR
-24" VERTICAL CAPACITY

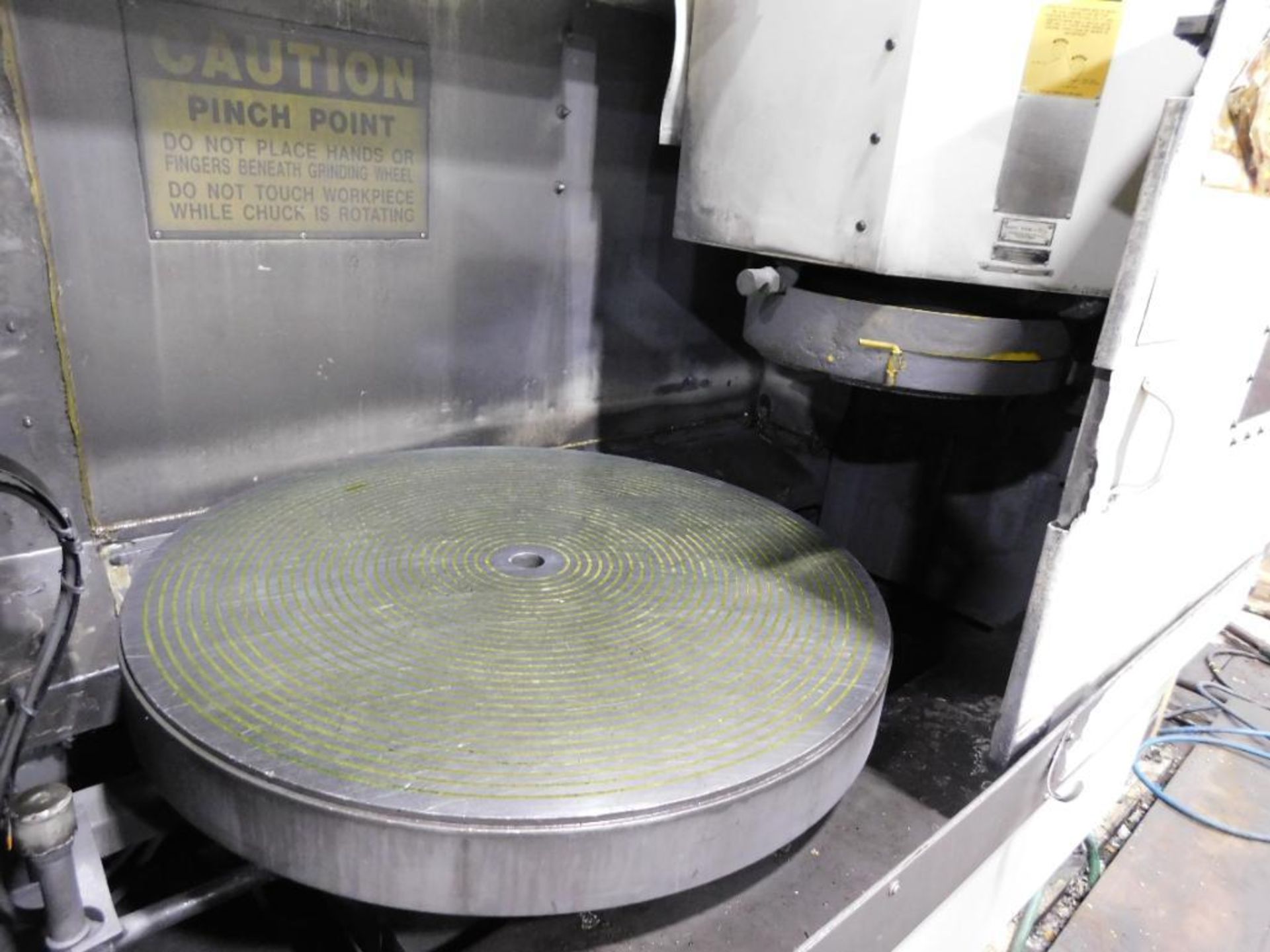

-42" ELECTRO-MAGNETIC CHUCK.… PRESENTLY HAS "NEAR NEW"
CHUCK LIFE,″/8" CHUCK LIFE!
-INFINITELY VARIABLE HOLD NEUTROFIER CONTROL.
-22" DIAMETER SEGMENTED WHEEL (CORTLAND)
-DY BASE
-"BARNES" MPE-25 COOLANT SYSTEM, WITH BOTH
PAPER FILTRATION… A MAGNETIC SEPARATOR
-PRESENTLY WIRED FOR″/60/460 VOLTS, 90 FLA
SPECIAL NOTE:
MACHINE WAS MAINTAINED WELL.… WE CAN PROVIDE YOU
WITH ACCESS TO THE GENTLEMAN WHO PERFORMED THE
"PM" AT THE FORMER OWNER'S SHOP.
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION… APPEARANCE **
LINK TO VIDEO: https://youtu.be/mEy0nn74Je8?si=5IFwF12nauuWfjcU
