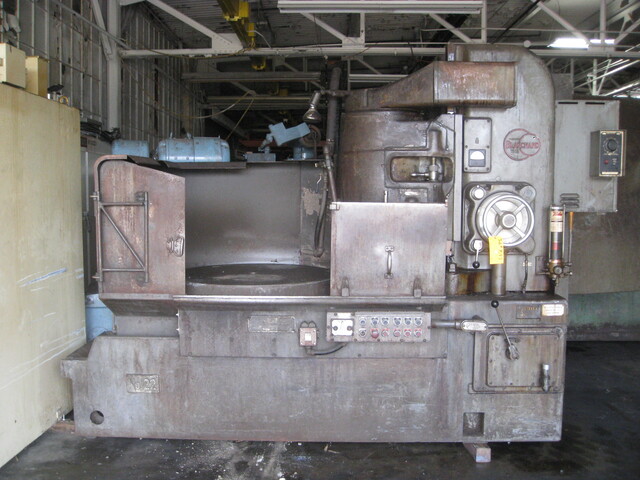

Blanchard #22-42, rotary surface grinder, 42" Mag chuck, 1/2" top plate, 18" vertical range, Trabon lube, coolant in base, 50 HP spindle, as is

22-42 Blanchard Rotary Surface Grinder, 42" Mag Chuck 1/2" Top Plate, 18" Vertical Range, Trabon Lube, Coolant in base, 50 HP Spindle.
#22-42 BLANCHARD EXTENDED VERTICAL
WET BASE ROTARY SURFACE GRINDER
S/N 12135 Year: 1967
STANDARD SPECIFICATIONS
RANGE
48" Diameter x 18" high over 42" diameter chuck with new segments.
WORKTABLE
One piece 42" diameter magnetic chuck.1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22 L 22 Cortland chuck segments, each 11 1/4 x 2 1/4 x 6 long.

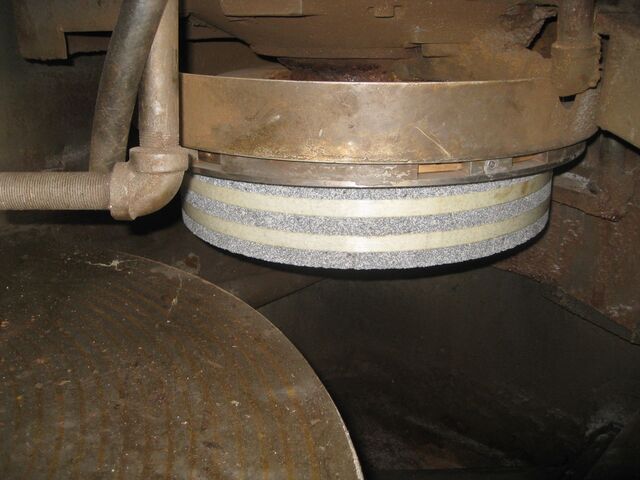

WHEEL
720 R.P.M. on 60 cycles, 750 R.P.M., 60 cycles 5,7, 10, 15, 20 and 27 R.P.M.
on 50 cycles.
OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900 R.P.M. (60 cycles).
Wet– 125 gallon tank in base.
FLOOR SPACE AND HEIGHT
11’ 11 X 8’ 4
Maximum height…………………………………………… 9’ 1
Minimum height…………………………………………… 8’ 7
WEIGHT
Domestic shipping weight………………………………… 19,000 pounds
EQUIPMENT AND FEATURES
42 One-piece magnetic chuck 95% life remaining.
50 H.P. 220/440 volt.
Height wheel to chuck…………………………………… 18"
Wheel dresser.
Load meter.
Guards.
Coolant in base.
Trabon lube.
18” Vertical.
Specifications are deemed accurate, however, subject to verification or prior sale.
