Click to zoom in
For Sale by Cleveland Machinery Sales Inc
Surplus Record Dealer Since 1984
Location: Cleveland, OH
Contact Frank Petitt
Phone Number: 216...> Show Phone Number 216-741-8900
Let the seller know you found their listing on Surplus Record!
Description

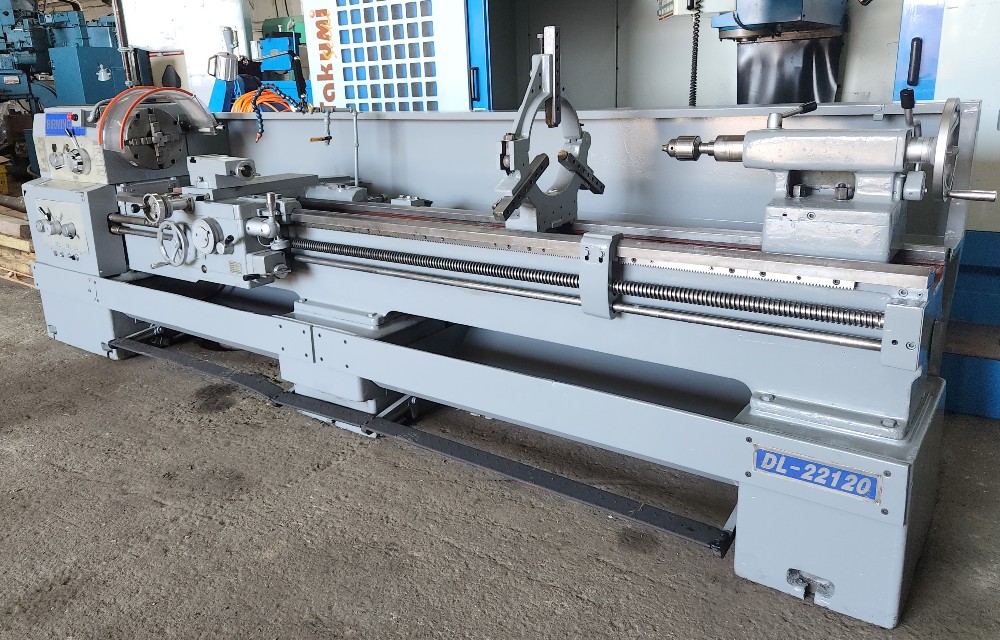

BIRMINGHAM LATHE
MODEL #DL22120
22" SWING OVER THE BED
120" BETWEEN CENTERS
32" SWING IN THE GAP BED
WIDTH OF THE BED 15-1/2"
13-3/4" CROSS SLIDE TRAVEL
D1-8 SONDLE MOUNT
3" SPINDLE BORE
#5 MORSE TAPER IN THE SPINDLE
16 SPINDLE SPEEDS 16-1600 RPM
49 INCH THREAD CHANGES 7/16-80 TPI
37 METRIC THREAD CHANGES 0.5-80 MM
54 LONGITUDINAL FEED CHANGES 0.0015-0.0772 IPR
54 CROSS FEED CHANGES 0.0006-0.0303 IPR
4 WAY RAPID ON THE CARRIAGE
TAILSTOCK CENTER SLEEVE DIAMETER 2-15/16"
TAILSTOCK CENTER SLEEVE BORE #5 MORSE TAPER
TAILSTOCK CENTER SLEEVE TRAVEL 6"
10 HP 220/440/3/60 MAIN MOTOR
MACHINE WIRED FOR 440 V/3 PH
12"DIA UNIVERSAL AND INDEPEDENT!! D1-8 4 JAW CHUCK
STEADY REST WITH 12" OPENING
TAPER ATTACHMENT
COOLANT SYSTEM
FULL LENGTH FOOT BRAKE
CHUCK GUARD
MODEL #DL22120
22" SWING OVER THE BED
120" BETWEEN CENTERS
32" SWING IN THE GAP BED
WIDTH OF THE BED 15-1/2"
13-3/4" CROSS SLIDE TRAVEL
D1-8 SONDLE MOUNT
3" SPINDLE BORE
#5 MORSE TAPER IN THE SPINDLE
16 SPINDLE SPEEDS 16-1600 RPM
49 INCH THREAD CHANGES 7/16-80 TPI
37 METRIC THREAD CHANGES 0.5-80 MM
54 LONGITUDINAL FEED CHANGES 0.0015-0.0772 IPR
54 CROSS FEED CHANGES 0.0006-0.0303 IPR
4 WAY RAPID ON THE CARRIAGE
TAILSTOCK CENTER SLEEVE DIAMETER 2-15/16"
TAILSTOCK CENTER SLEEVE BORE #5 MORSE TAPER
TAILSTOCK CENTER SLEEVE TRAVEL 6"
10 HP 220/440/3/60 MAIN MOTOR
MACHINE WIRED FOR 440 V/3 PH
12"DIA UNIVERSAL AND INDEPEDENT!! D1-8 4 JAW CHUCK
STEADY REST WITH 12" OPENING
TAPER ATTACHMENT
COOLANT SYSTEM
FULL LENGTH FOOT BRAKE
CHUCK GUARD
Get Your Price from Cleveland Machinery Sales Inc!
