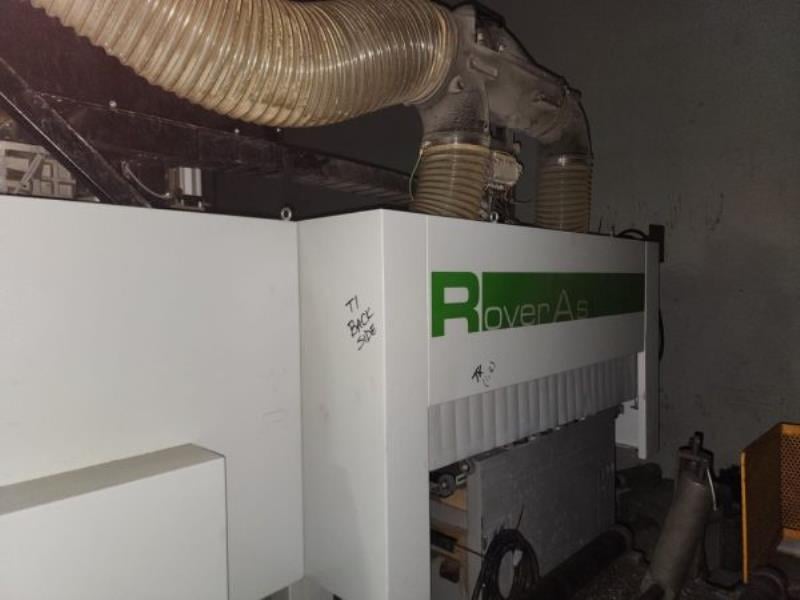

Biesse #Rover-AS-FT-1224, CNC router, 4' x 8' table, 8 ATC, 97" X, 50" Y, 8" Z, 24000 RPM, 12 HP, HSK 63, 10-spindle boring unit, 2022

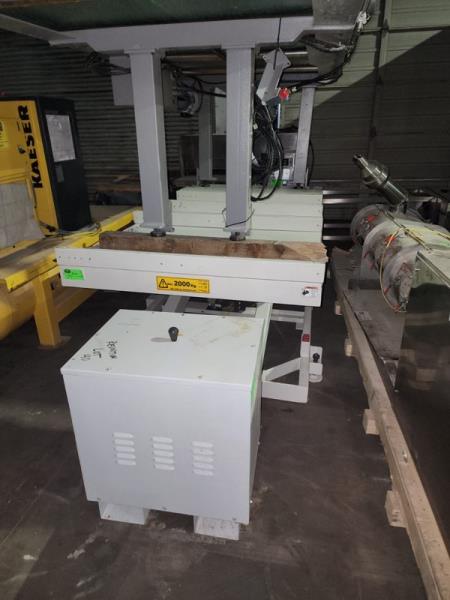

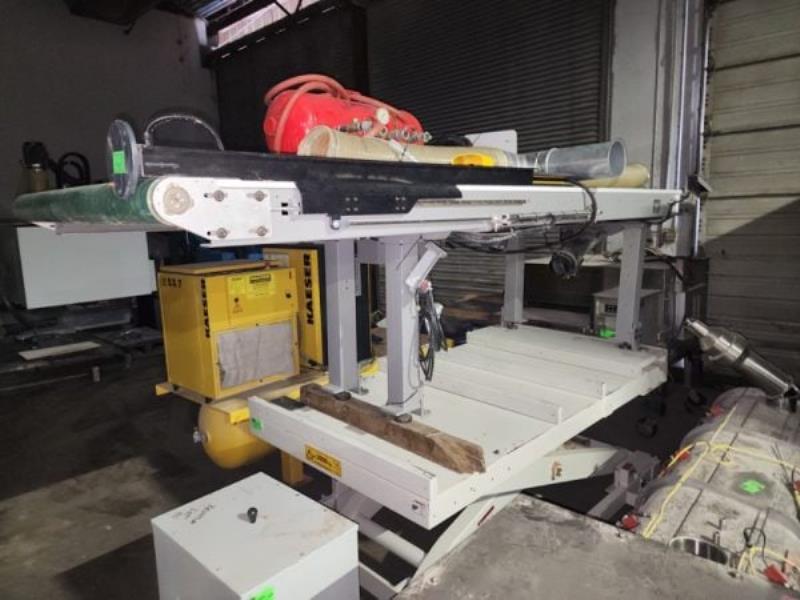

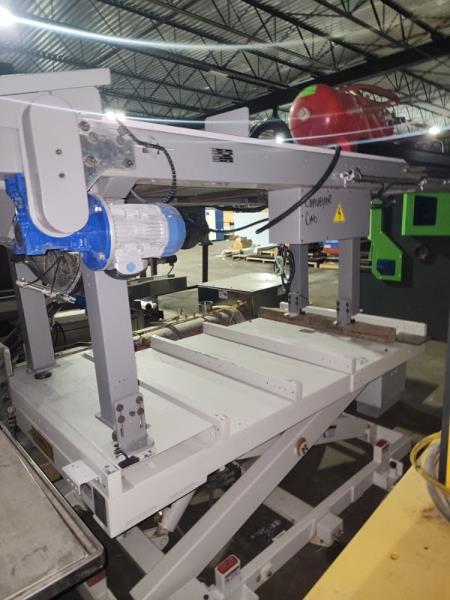

BIESSE ROVER AS FT 1224 - 4'x8' FLAT TABLE MACHINE (W/LOADING, UNLOADING): -- Specifications:4' x 8' "Matrix" grid Phenolic surface for "Nested Base Manufacturing". -- Working Capacity: "X" Axis 97" (2,465 mm), "Y" axis 50" (1,260 mm), "Z" axis stroke is 8" (203 mm), max. material thickness 6.7" (170 mm). -- Positioning Speed: "X" axis 279 FPM (85 MPM), "Y" axis 197 FPM (60 MPM), "Z" axis 66 FPM (20 MPM). All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors. All motion components are maintained by an automatic lubrication system. "X" & "Y" Axes use a precision rack & pinion system; "Z" axis uses precision ball screws. -- Work area:Flat table design with HI-FLOW, multi-zone Matrix" grid Phenolic surface for "Nested Base Manufacturing". Automatic NC controlled zoning of the vacuum table with (9) individual zones. (2) Pneumatic "side" pop-up reference stops, (4) pneumatic "back" pop-up reference stops, & (6) pneumatic "front" pop-up reference stops. Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(1) 2.5 HP (1.7 kW) Motor, variable speed up to 6,000 RPM: Boring block with (10) independent vertical spindles, (7) in "X" axis & (3) in "Y" axis. (1) "X" axis grooving saw for max 120 mm dia blade. -- Machining:(1) 12 HP (9 kW) Air cooled HSD Electro Spindle with HSK 63 adaptor, variable speed from 1,000 - 24,000 RPM. (1) 8-position ATC tool changer plate located at the back of the machine base. NC controlled presetting for the measurement of the tool length. -- Operator & Machine Control:PC Front-End with: BIESSE bTouch 21.5"; touch screen operating system. -- Complete with:(2) 10 HP Vacuum Pump; Perimeter Safety system/fencing. Automatic Lubrication System for linear guides, rack & recirculating ball screw. Tele-Service capabilities. -- Options Include: ● (1) NC Controlled infeed Scissor Lift table with vacuum loading; ● (1) Rake system; ● (1) NC controlled powered belt outfeed table with vacuum sweeping system; ● (1) Additional NC controlled powered belt outfeed table; ● Bar code label printer. -- Actual Model is BIESSE ROVER AS FT 1224.
