Biesse #Rover-AS-15, 5-axis CNC Router, Boring & Panel, Excellent Condition, 5.1' x 10.3' working area, 2023

  View PDF

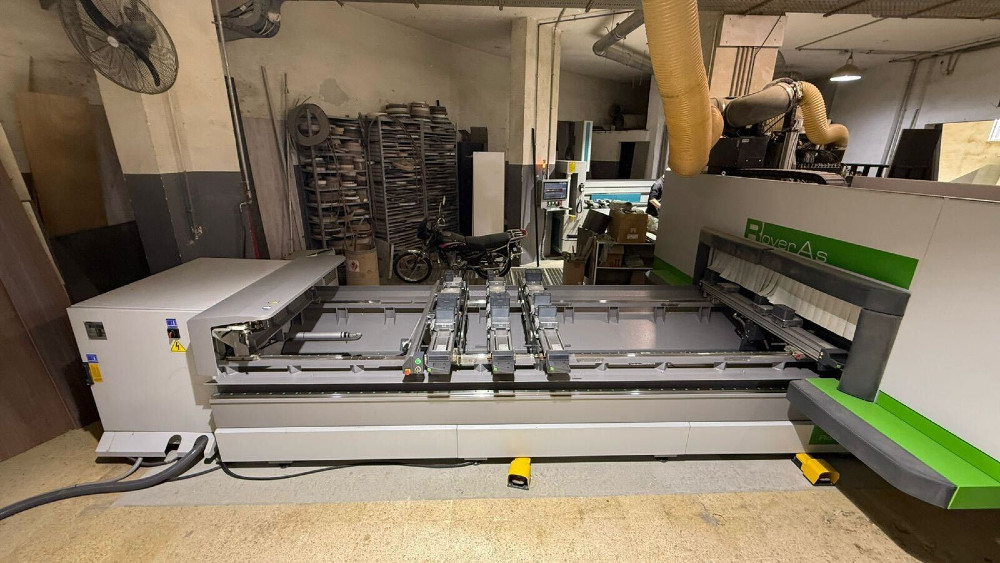

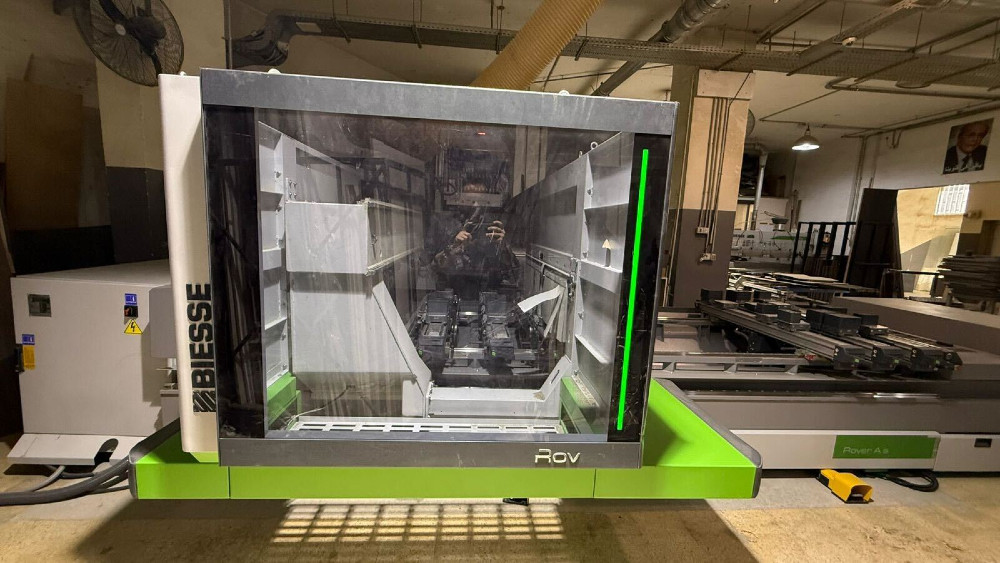

BIESSE ROVER AS 1532 – CNC Machining Center 5-Axis

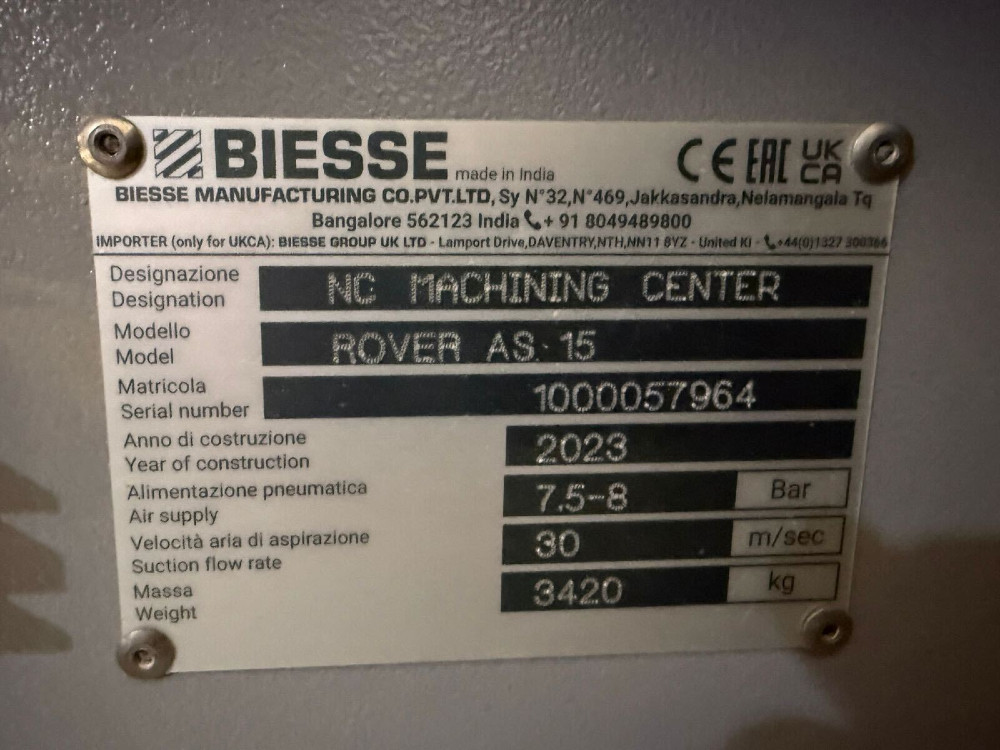

Manufacturer: Biesse (Italy)
Model: Rover AS 1532
Year: 2023
Condition: Excellent
Machine type: CNC machining center for routing, boring & panel processing

Safety systems in compliance with EC norms, with front and rear bumpers.

Working Area

X axis: 3140 mm ( feet: 10.3' )

Y axis: 1560 mm (4-axis) / 1570 mm (5-axis) (Feet: 5.10' - 5.15' )

Z stroke:

200 mm with H74 modules
245 mm with H29 modules

ATS worktable system:

6 aluminum panel supports

24 sliding bases with pneumatic locking

Supports rotation in 15° steps

Vacuum system:

1 × 250 m³/h oil-free rotary claw vacuum pumps

High-friction vacuum modules (various sizes)

Machine Structure & Motion

Heavy-duty electrowelded steel base and gantry

Rack & pinion X/Y axes (DIN class 6 precision)

Ball screw Z axis (ISO C7)

Brushless motors with digital drives (Mechatrolink)

Prismatic linear guides with sealed bearings

Automatic centralized lubrication system

Operating Units

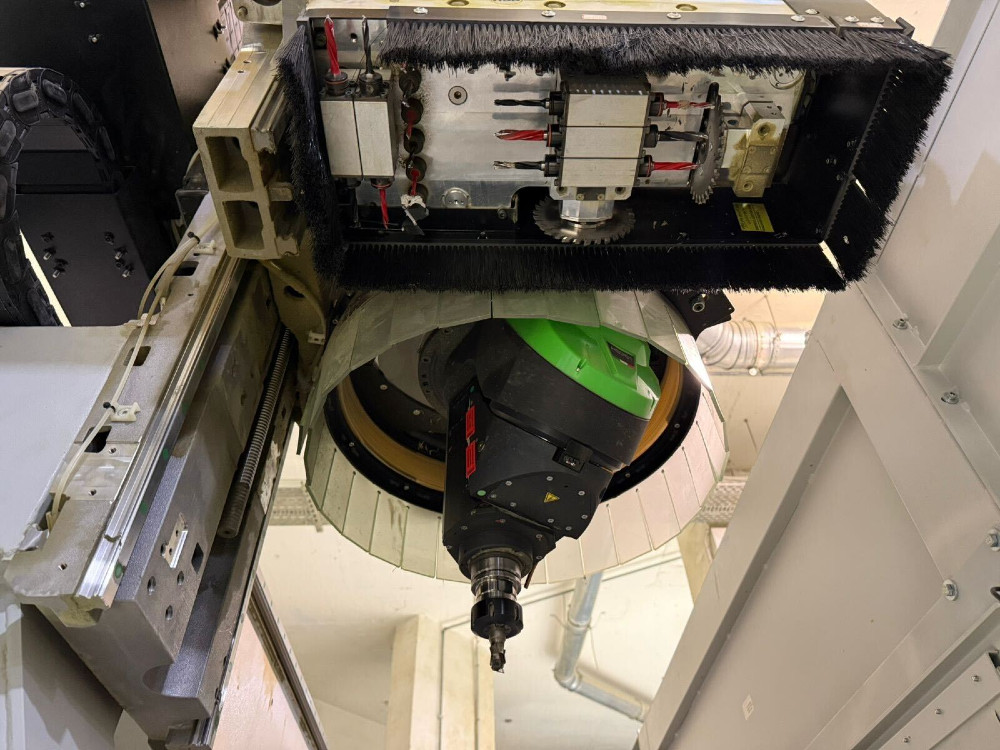

5-axis interpolating electrospindle

Power: 13 kW (17.4 HP)

HSK F63 interface

Liquid cooled

Speed up to 20,000 RPM

C-axis continuous 360° rotation

B-axis ±150°

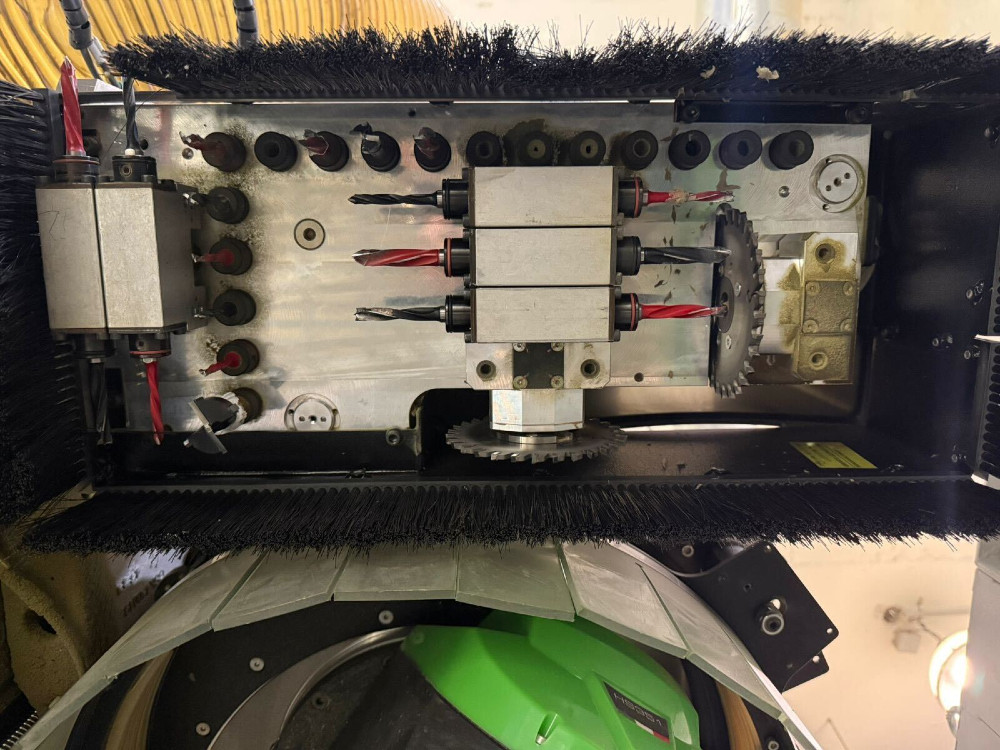

BH 17 L boring head

10 vertical spindles (X/Y – 32 mm pitch)

3 horizontal spindles

Integrated grooving saw blade

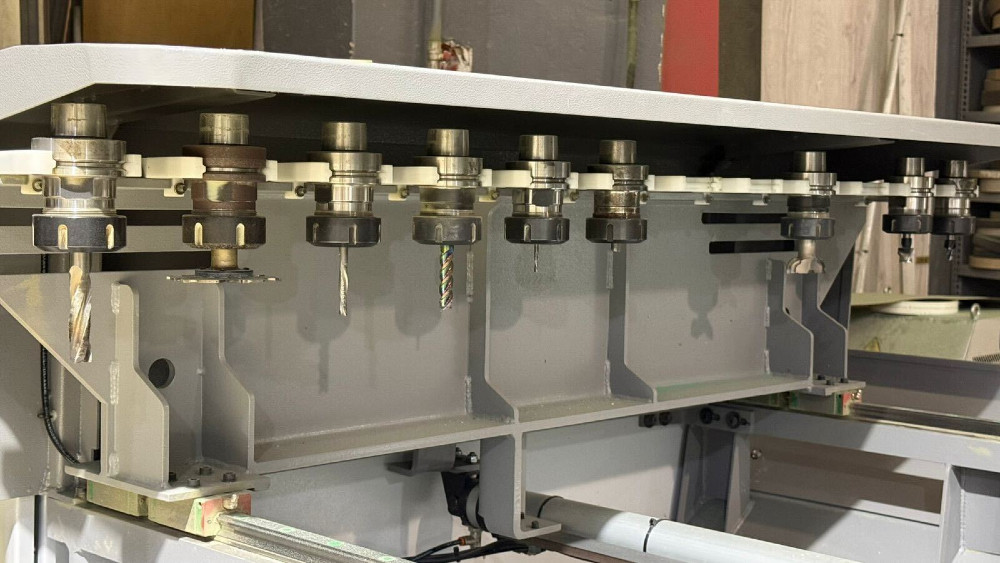

13-position revolver tool changer on X carriage

Automatic tool length measurement

Vacuum & Panel Handling

Pneumatic locking system divided into 2 X working areas

Back, middle & side reference stops (NC-controlled)

Stops for panels with projecting edges

Lifting bar supports for easy loading of heavy panels

Auxiliary vacuum outlet for jigs

Control & Software

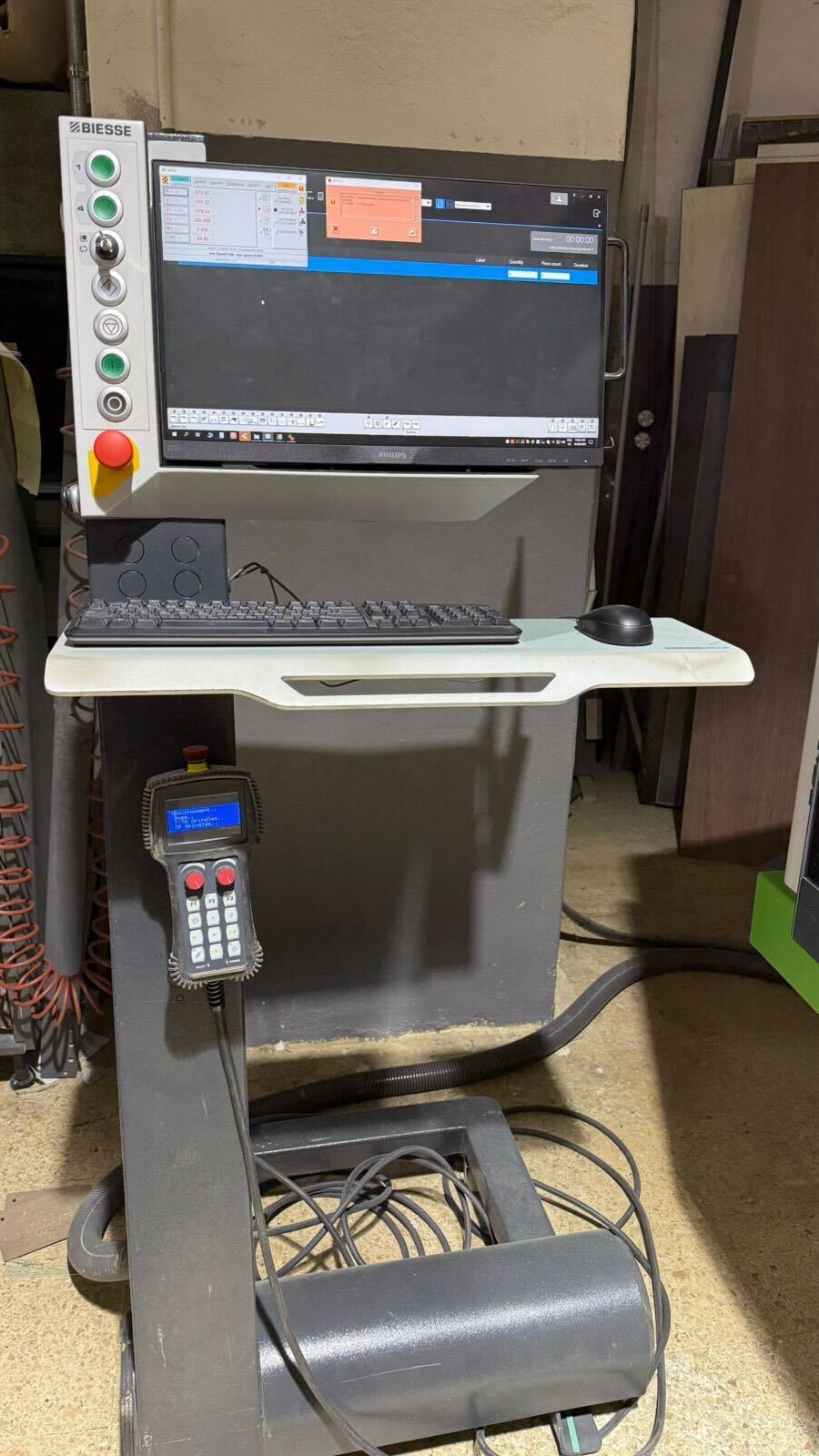

Biesse BH660 CNC control (PC-based)

Intel Core i5

21.5” industrial touchscreen

Windows Real-Time (WRT)

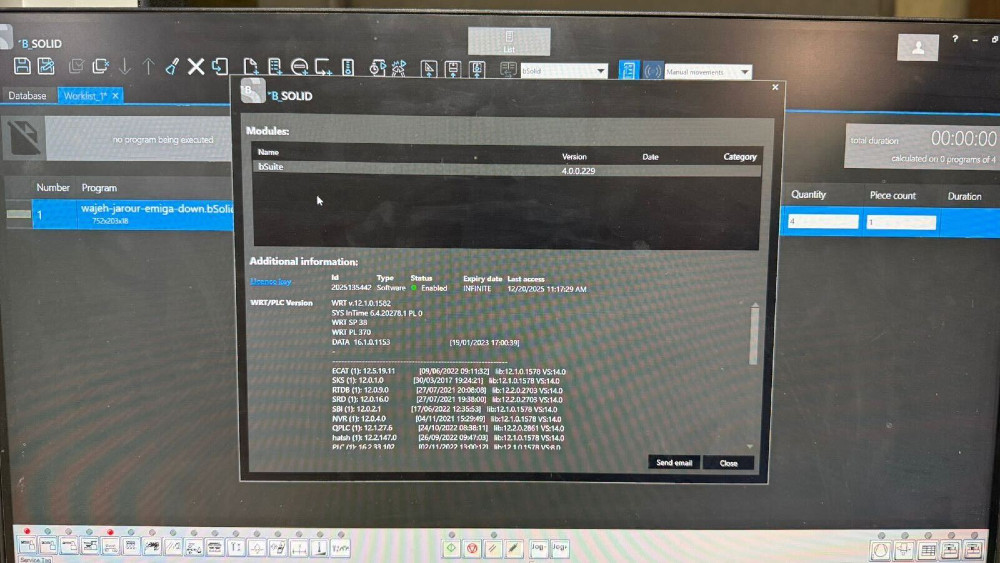

bSolid 3D CAD/CAM software

3D simulation & collision checking

4-axis & 5-axis positioning

Multi-piece machining

Worklist & cycle-time estimation

Wired remote control pendant included

Industry 4.0 / OPC-UA ready

SOPHIA IoT ready (remote diagnostics & monitoring)

Electrical & Safety

Power supply: 380–415 V / 50–60 Hz

Air-conditioned electrical cabinet

UPS for CNC PC

Front & rear safety bumpers

Full CE compliance

Suitable Applications

High-end cabinet & kitchen production

Furniture components

Solid wood, MDF, plywood & composite panels

Complex 5-axis machining & drilling
