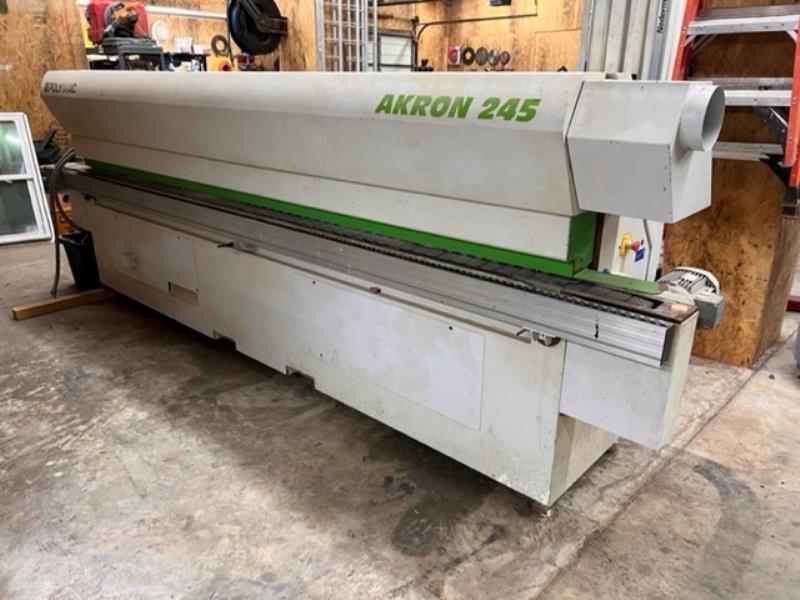

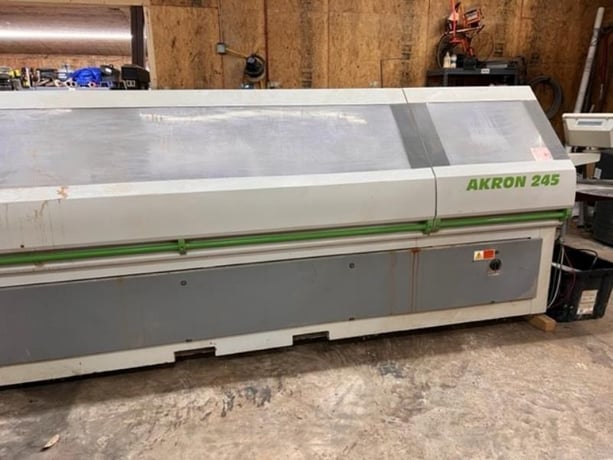

BIESSE AKRON 245 Edgebander with Corner Rounding: Left-hand material infeed for strips & coiled edge material like PVC, ABS, veneer, and solid wood.Specifications: -- 0.4 - 8 mm (5/16") Cap. Edgebanding thickness, min. panel width 85 mm & min. length 140 mm, panel thickness 10 - 50 mm.Equipped with: -- Adjustable top pressure beam positioning. -- Automatic strip & coil feed magazine with robust shear type 3 mm PVC guillotine. -- Hot-Melt glue system (12 min. heat up time) with Teflon coated gluepot, digital thermostats with automatic kick-down when machine is in idle mode; 1" dia. glue applicator roller. -- Pressure section with (1) large dia. "non-stick" coated drive roller & (2) chrome plated idle rollers with pneumatic positioning.Workstations: -- Front & Rear End Trims (0.33 HP - 12,000 RPM motors), motors travel on (2) straight slides and pneumatic tilt 0 - 25 on horizontal plane. -- Top & Bottom Flush Trims with "Quick Change" motors (1.0 HP - 12,000 RPM motors), digital readouts for easy setup. -- 2-Motor (0.3 HP - 12,000 RPM motors) Corner rounding unit for trimming leading & trailing upper & lower edge/corners with "Fast Position" and can be used as a second Top & Bottom fine trimmer as well. -- Top & bottom Scrapers for 3 mm thick PVC banding, digitals for horizontal adjustments. -- Top & bottom Buffing (0.5 HP - 2,800 RPM motors), units tilt 0 - 30. -- Top & bottom (2,000 Watt) Hot Air Blowers with temperature adjustment. -- Feed Speed 39 FPM, 3 HP feed drive.Complete with: -- Microprocessor for workstations & feed speed. -- Insulated sound enclosure over all trim stations with triple split dust hood, industrial lights and viewing windows. -- Extendable side panel support rail, 12 KVA - 240 Hz digital frequency inverters. - Includes: Used tooling on all workstations.
Biesse Akron 245 Edgebander, System is still under power until approx mid-October 2024., Touch PLC will need to be replaced. Everything else is working good on the machine. Owner has had it serviced by Biesse.
