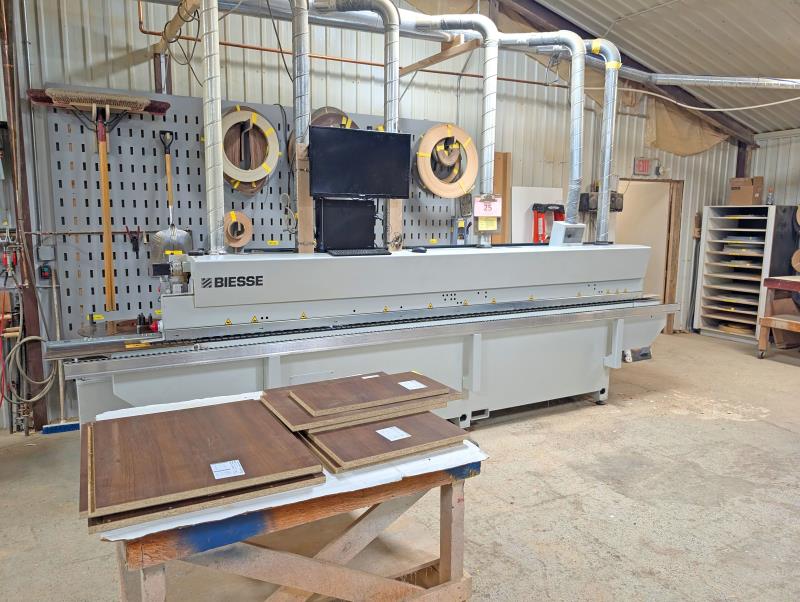

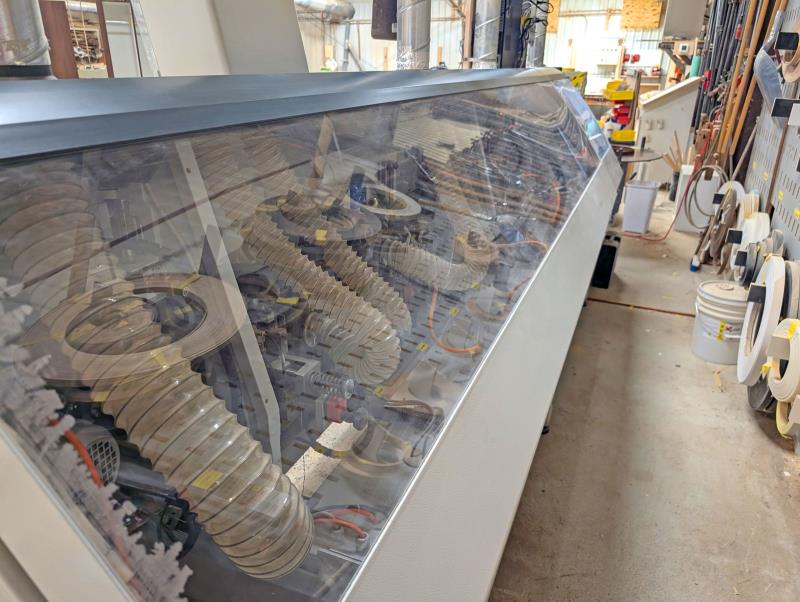

Biesse #Akron-1330, pre-mill & corner rounding edgebander, 2015

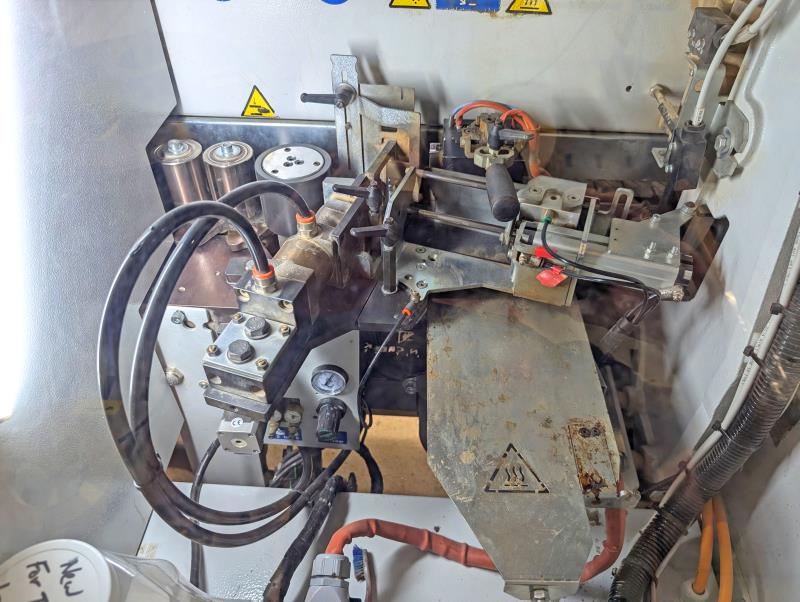

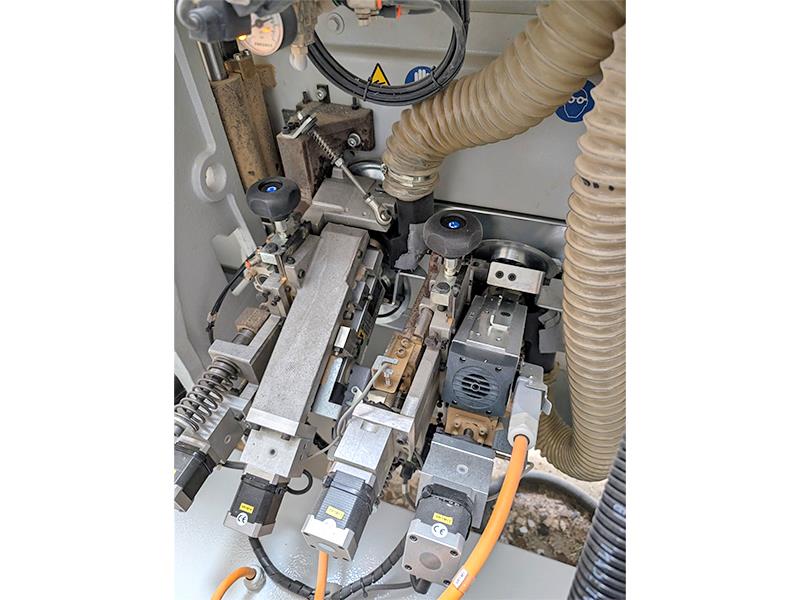

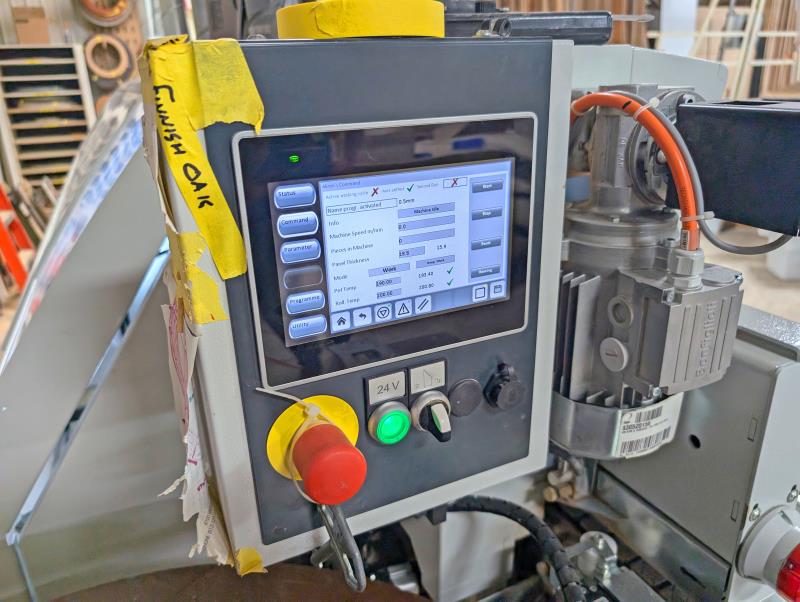

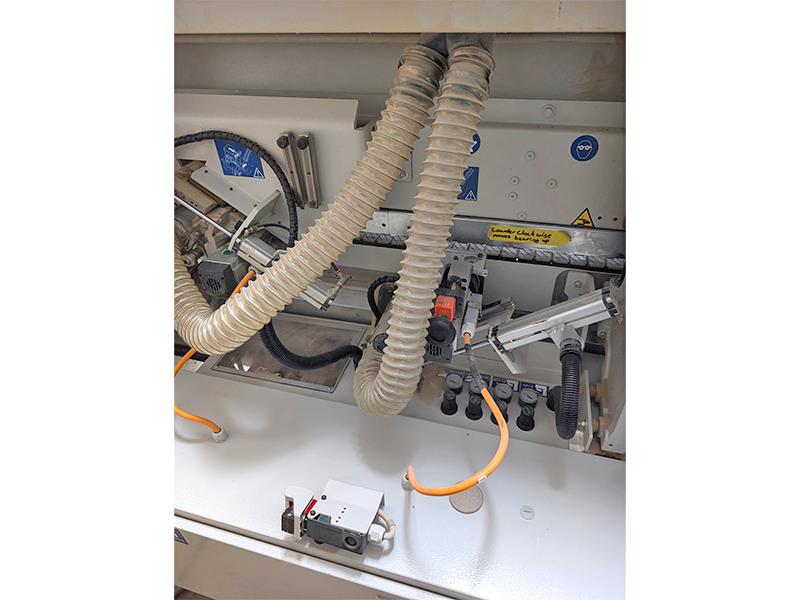

BIESSE AKRON 1330 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications: Computer controlled interface for workstations with servos and pneumatic positioning devices. Programmable selections for 1-touch changeover between edgebanding types and thicknesses.Top Pressure Beam with automatic adjustment from the machine control. -- Working Capacity: Edgebanding thickness, 0.4 - 5 mm capacity. Min. panel width 85 mm (3.3"); min. panel length 140 mm (5.5"); panel thickness 10 - 50 mm (0.39" - 1.96").3 HP (2.2 kW) Variable Feed Speed from 10 - 20 MPM (32 - 65 FPM).Front-End Equipped With: -- Pre-milling Unit with "Auto-set" automatic intervention, Strip & Coil Edge magazine, automatic shear type guillotine. -- Hot-Melt Glue System: Teflon coated glue pot, digital thermostats with automatic kick-down when machine is in idle mode.Pressure Section with (1) large dia. "non-stick" coated drive roller & (5) Teflon plated idle rollers with servo positioning NC controlled material thickness adjustment.Workstations: -- End Trimming Unit:NC controlled end trimming unit, 0.33 HP (0.24 kW) - 12,000 RPM motors.Motors travel on (2) straight slides and pneumatic tilt 0 - 15 on horizontal. plane -- Top & Bottom Multi- Function Flush/Bevel/Radius Trimming Unit: NC Controlled 2-motor Top & Bottom Multi- Function Flush/Bevel/Radius Trimming Unit, 0.3 HP (0.24 kW) - 12,000 RPM.Servo driven positioning of motors for different edge trimming profiles & positions. -- Corner Rounding Unit:2-motor 0.3 HP (0.24 kW) - 12,000 RPM motors for trimming leading & trailing upper & lower edge/corners with "Fast Position",Unit can be used as a second top & bottom fine trimmer as well. -- Profile Scraping Unit:Top & bottom 2 mm or 3 mm thick PVC banding, digitals for horiz. adjustments. -- Flat Scraping Unit:Top & bottom glue scraping unit. -- Buffing Unit: Top & bottom Buffing Unit, 0.5 HP (0.37 kW) - 2,800 RPM motors), units tilt 0 - 30Operator & Machine Control: -- Biesse SMART TOUCH 7" + Windows operating system, user friendly touchscreen control panel for workstations, rotating operator control panel w/keypad and LCD readout.Graphic 7" display touch screen. High-resolution screen for defined and intuitive images and text. Integrated 4GB hard disk for filing media files and the programs back up.USB port for managing in a simple and efficient way multimedia files, programs and updates. Ethernet port for connecting the machine to the net.Complete With: -- Insulated sound enclosure over all trim stations with split dust hood, viewing windows. Universal Transformer for any 3phase voltage from 200-600 V, 50/60 Cy (currently connected to 460V, 3Phase, 60 Cy) -- Actual Model is BIESSE AKRON 1330 A
