Bardac DC Drive PLX145/330

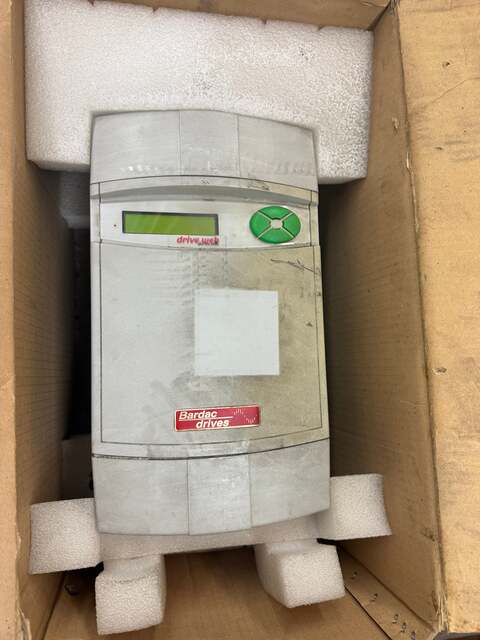

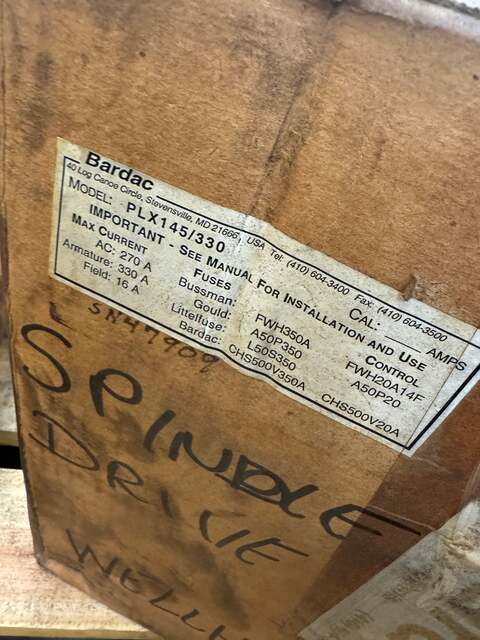

The Bardac PLX145/330 is a 3-phase digital DC drive rated for 100HP at 240VDC and 200HP at 480VAC input. Part of the PLX Series, it is a 4-quadrant regenerative reversing drive capable of operating from a supply voltage range of 230V to 460VAC 3-phase. The unit carries a maximum AC input current of 270A, an armature output current of 330A, and a field current rating of 16A, as confirmed by the nameplate label. The drive features the drive.web integrated Ethernet automation controller platform, visible via the LCD display and navigation interface on the front panel. Fuse compatibility per the nameplate includes Bussman FWH350A, Gould A50P350, Littelfuse L50S350, and Bardac CHS500V350A for main power, with separate control fuse ratings also specified. The PLX series employs a fully digital control architecture with built-in programmable application blocks for PID, winder, and orientation functions. This drive is suited for heavy industrial DC motor applications including spindle drives, extruders, winders, and similar high-current variable speed processes requiring regenerative braking capability. The unit ships with foam corner blocking and is packed in a corrugated outer carton as shown. Serial number SN47909 is visible on the shipping carton. Dimensions per manufacturer published data: 16.2 in. H x 8.5 in. W x 8.6 in. D. Published weight: 28 lb.

Stock # 0326-834
