Description
Product Specifications
- Manufacturer: Banner Engineering
- MPN / Model: SLLCE23-350-S
- Banner Part Number: 808923
- Product Type: EZ-SCREEN LS Cascade Safety Light Curtain Emitter
- Component: Emitter only
- Resolution: 23 mm
- Defined Area: 350 mm (13.8 in)
- Range: 0.1 to 12 m
- Supply Voltage: 24V DC +/- 15%
- Serial Number: M34546148089232120
- Enclosure Rating: IP65 / IP67
- Temperature Rating: -20 to 55 degrees C
- Safety Rating: Type 4 per IEC 61496, EN ISO 13849-1, Cat. 4 PL e, SIL 3 per IEC 61508
- Connection: Removable Disconnect (RD)
- Effective Aperture Angle: 2.5 degrees or less at 3 m
- Housing: Yellow aluminum
Product Description

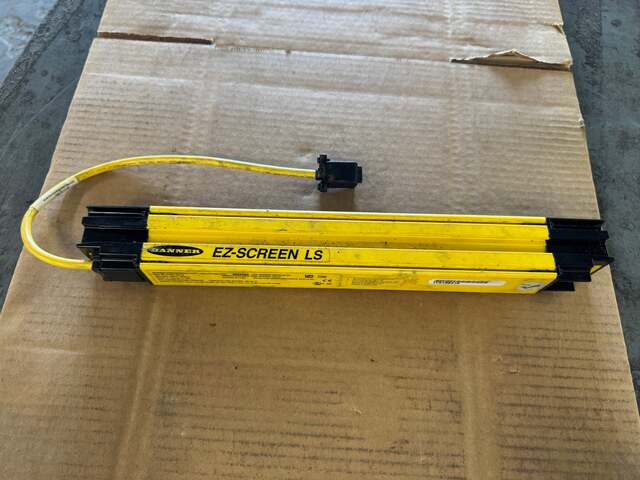

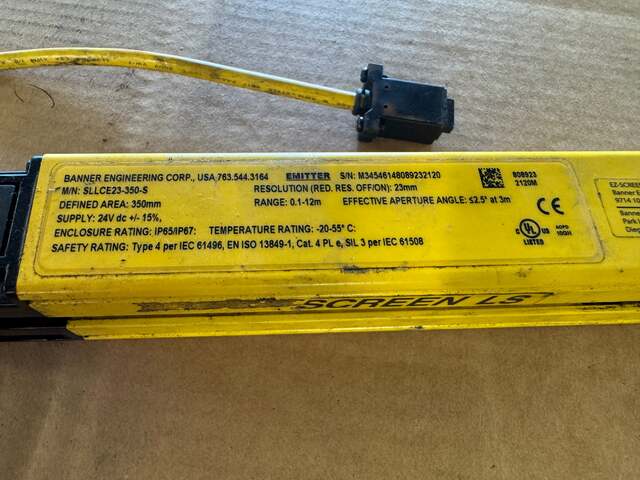

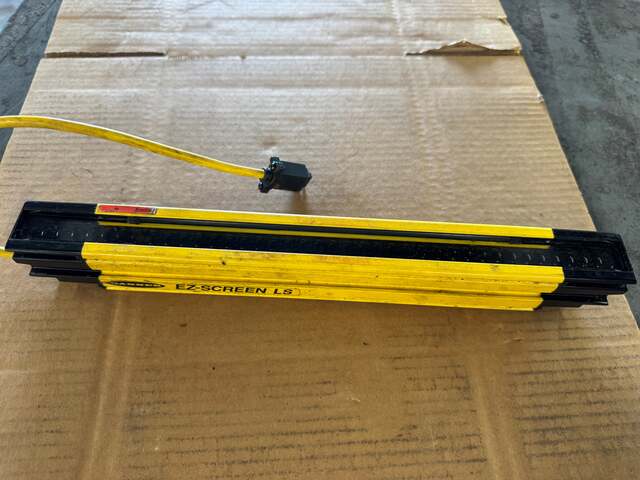

The Banner Engineering SLLCE23-350-S is an EZ-SCREEN LS Cascade safety light curtain emitter with a 350 mm defined area and 23 mm resolution, identified by MPN SLLCE23-350-S and Banner catalog number 808923. The nameplate confirms supply voltage of 24V DC +/- 15%, a sensing range of 0.1 to 12 m, and IP65/IP67 enclosure protection rated for ambient temperatures from -20 to 55 degrees C. Safety certification is Type 4 per IEC 61496, Category 4 PL e per EN ISO 13849-1, and SIL 3 per IEC 61508. The Removable Disconnect (RD) connection type is integral to the unit; mounting hardware and M12 pigtail cable are ordered separately. Serial number M34546148089232120 is visible on the nameplate. The housing shows cosmetic surface wear consistent with prior installation. This listing is for the emitter component only; a matching cascade receiver is required for a complete system.
Inquire Further with MRO Exchange!
