B & R Automation Servo Motor 8JSA33.E9045D200-0 - Variable 4000 RPM

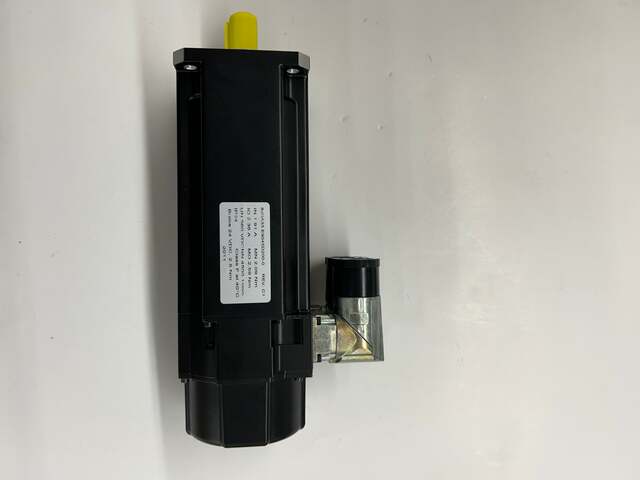

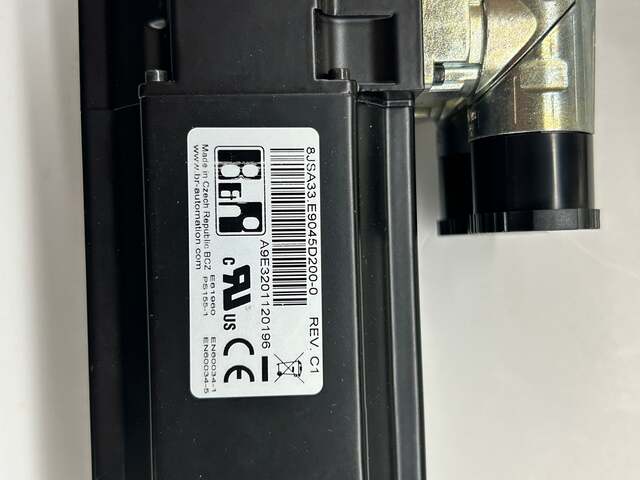

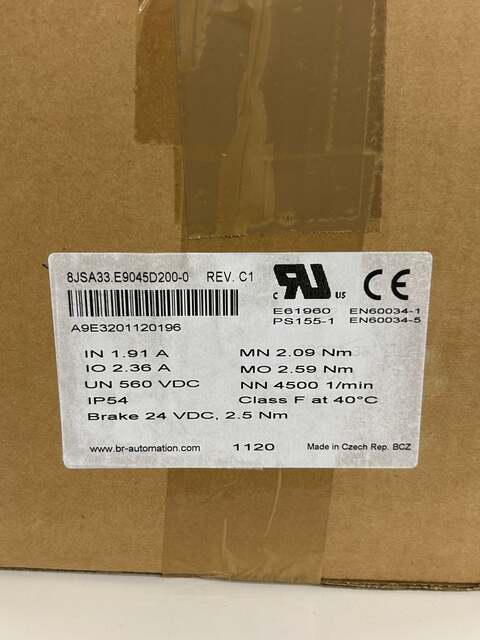

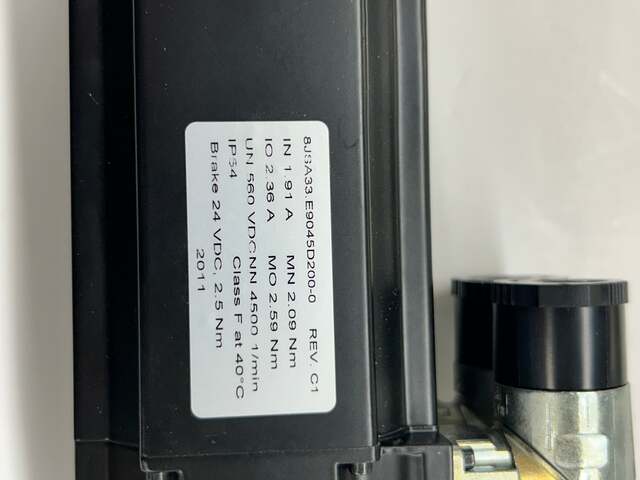

The B&R Automation 8JSA33.E9045D200-0 is a compact brushless AC servo motor from B&R's 8JS series, manufactured in the Czech Republic and carrying UL, cUL, and CE certifications. The nameplate confirms a nominal supply voltage of 560 VDC, nominal current of 1.91 A, peak current of 2.36 A, nominal torque of 2.09 Nm, peak torque of 2.59 Nm, and a rated speed of 4500 RPM. Insulation is Class F, rated at 40 degrees C ambient. The unit includes an integrated 24 VDC electromagnetic brake rated at 2.5 Nm, suitable for holding or safety stop applications. IP54 environmental protection is confirmed on the nameplate. Serial number A9E3201120196 and manufacture date code 2011 are visible. Revision C1 is noted. The motor is equipped with a right-angle feedback connector and a yellow shaft protection cap is present on the output shaft. B&R's 8JS series servo motors are designed for use with B&R ACOPOS servo drives in precision motion control, robotics, and multi-axis automation applications. Standards compliance includes EN60034-1 and EN60034-5.

Stock # 0326-1062
