B & R Automation Digital Input Module X20DI9371 24 VDC

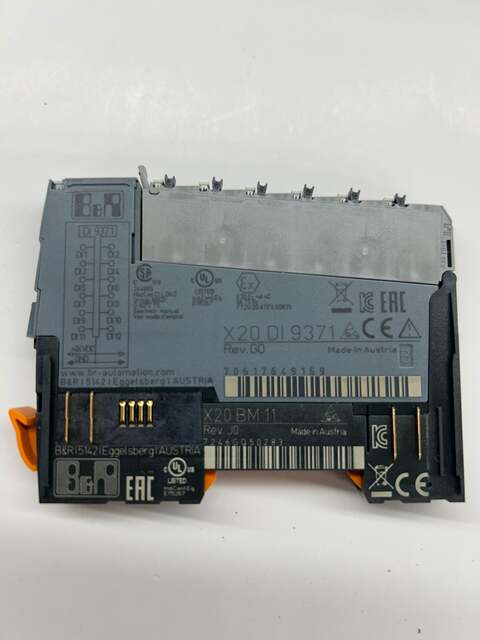

The B&R Automation X20DI9371 is a 12-channel digital input module from the X20 series of modular I/O systems, designed for integration into B&R X20 PLC automation platforms. The module operates at 24 VDC and accepts sinking digital inputs across all 12 channels, with individual channel status indicated by LEDs visible from the front face. This unit carries revision G0 as confirmed on the nameplate and was manufactured in Austria. Serial number 70617645155 is visible on the rear label. The assembly includes the X20 BM 11 bus module (revision J0, serial 7246G050283), which provides the 24 VDC keyed internal I/O supply interface required for installation into an X20 backplane. The X20BM11 is rated for continuous internal I/O supply at 10A and operates across a temperature range of minus 25 to plus 50 degrees C, IP20 enclosure. Both the X20DI9371 and X20BM11 carry UL and CE markings. The X20DI9371 also carries ATEX certification (PT20/09.ATEX.0083X) as noted on the housing label, indicating suitability for use in potentially explosive atmospheres under applicable conditions per the manufacturer documentation. Part number for the primary module is X20DI9371; the included bus module part number is X20BM11. Made in Austria by B&R Automation, headquartered in Eggelsberg, Austria.

Stock # 0326-1028
