For Sale by Savona Equipment
Surplus Record Dealer Since 2026
Location: Savona, BC Canada
Contact Sales Dept.
Phone Number: 250...> Show Phone Number 250-800-9179
Let the seller know you found their listing on Surplus Record!
Description
Specifications

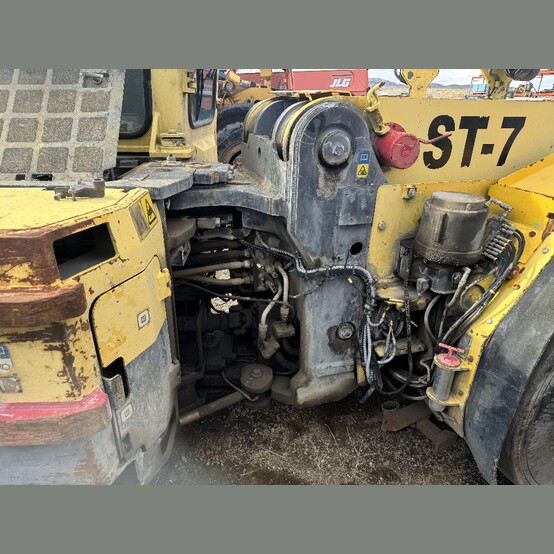

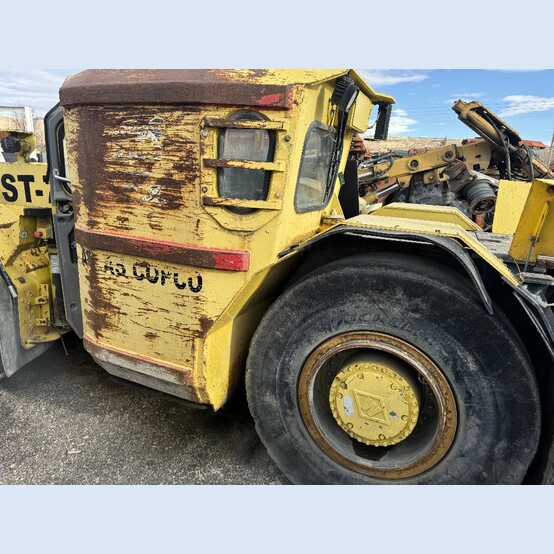

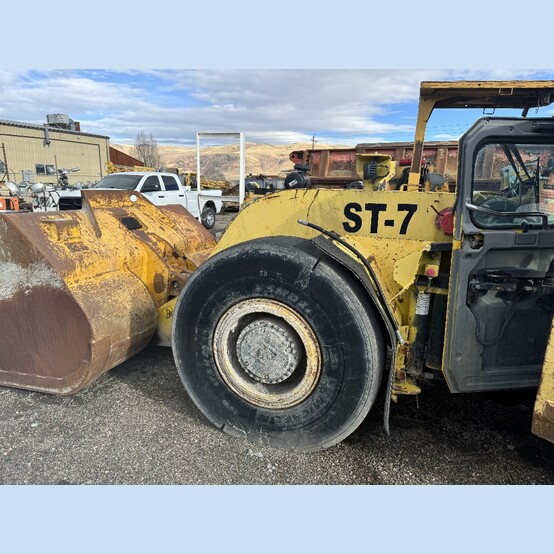

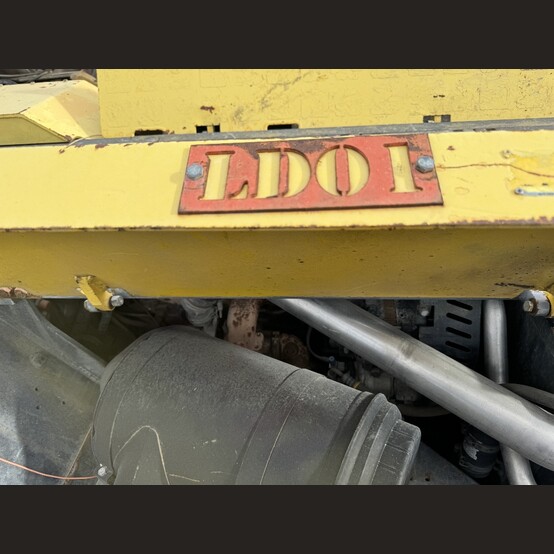

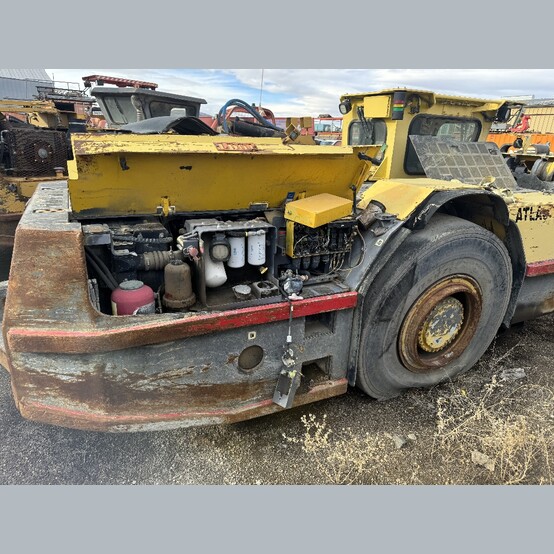

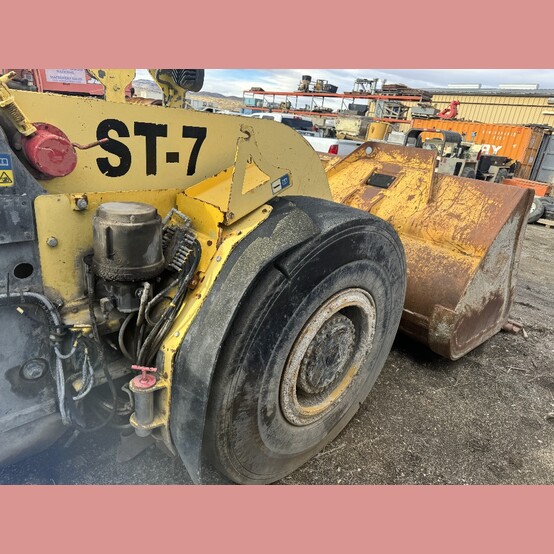

2013 Atlas Copco ST7 4-Yard Scooptram
- Make: Atlas Copco
- Model: ST7
- Type: Scooptram (LHD)
- Year: 2013
- Hours: 5,184 Hours
- Condition: Used Condition
- Bucket Size: 4yd³ (3.1m³)
- General Model Specifications:
- Tramming Capacity: 6,800 Kgs
- Breakout Force:
- Hydraulic: 13,350 Kgs
- Mechanical: 11,750 Kgs

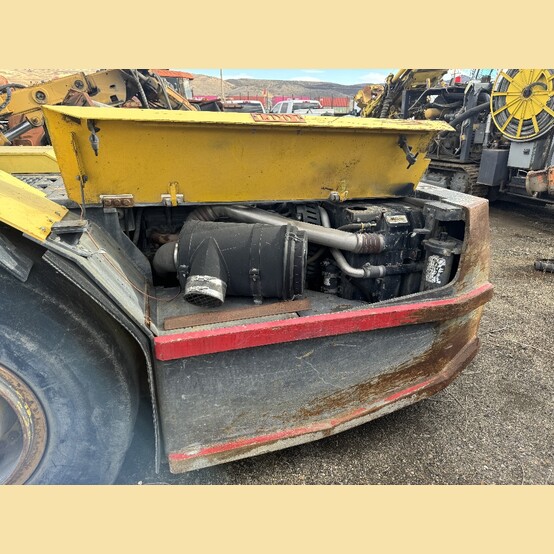

- Engine: Cummins QSB6.7 EPA Tier 3 (193HP@2200RPM)
- Transmission/Torque Converter: Funk DF150 Transmission/Torque Converter
- Axles: Okubo Rock Tough 406
- Differentials:
- Front: No-Spin
- Rear: Open, 14° Oscillation (7° Per Side)
- Brakes: SAHR Wet Multi-Disc
- Tires: 17.5 x 25 20 Ply L5S

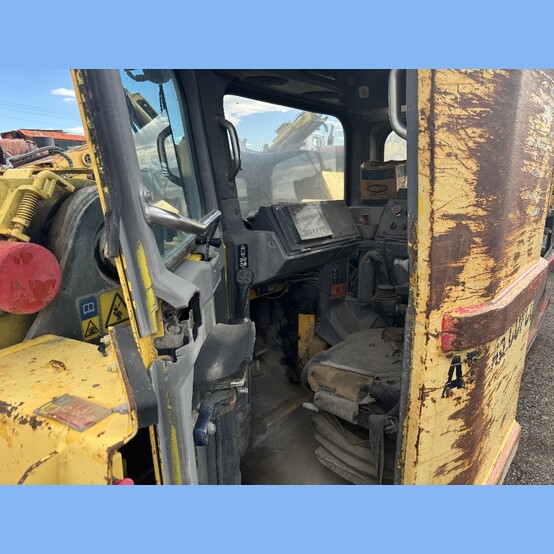

- Canopy: ROPS/FOPS
- Bucket Motion Times
- Boom Raising: 5.3 Sec
- Boom Lowering: 3.5 Sec
- Dumping: 2.1 Sec
- View Spec Sheet Below
- Overall Dimensions:
- Length: 8,705mm
- Width: 2,230mm
- Height: 2,160mm
- Weight: 42,550 Lbs. (19,300 Kgs)
- Location: Western USA
