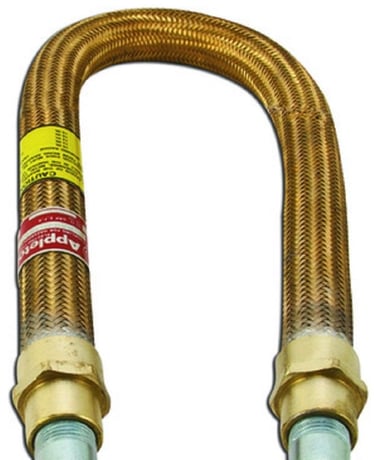

Appleton EXGJH-112 Explosionproof Flexible Coupling, Dust-Ignitionproof, 12" L

$329 USD

Request Formal Quote

Appleton EXGJH-112 Explosionproof Flexible Coupling, Dust-Ignitionproof, 12" L - EXGJH Series. Explosionproof, Dust-Ignitionproof. UNILETS for Use with Threaded Rigid Metal Conduit and IMC. Suitable For Wet Locations, Two Removal Male Nipples. Flex Length: 36 Inches. Diameter Size: 1/2 Inch. APPLICATIONS: Used in areas where vibration and/or movement is a problem. Also used in place of rigid conduit in difficult-bend situations. FEATURES: Explosionproof, dust-ignitionproof,watertight. Smooth, rounded integral bushing in each hub protects conductor insulation. Accurately tapped, tapered threads for tight, rigid joints and ground continuity. Heavy duty design resists mechanical abuse. Electrical conductivity equal to rigid conduit on a similar length basis"no bonding jumper required. Interior insulating liner protects conductors from abrasion under vibrating conditions. EXGJH: both end fittings are female, each furnished with a removable male nipple. EXLK: female end fitting with union at one end and a female end fitting with a removable male nipple at the other end. STANDARD MATERIALS: 1/2 thru 2: outer bronze braid, inner brass core with insulating liner. 2-1/2 thru 4: outer stainless steel braid, inner stainless steel core with insulating liner. End Fittings: 1/2 thru 2" brass; 2-1/2 thru 4" stainless. steel. Unions: 1/2 thru 1 zinc plated steel; 1-1/4 thru 2 ductile iron. Close nipples: zinc plated steel. STANDARD FINISHES: Natural finish. NEC/CEC Certifications and Compliances: UL Standard: 886 (1203). UL Listed: E10444. CSA Standard: C22.2 No. 25, C22.2 No. 30. CSA Certified: 065181. ATEX Certifications and Compliances: Certfication Type FLEXCO (Excludes Nipples and Unions), Gas, Zones 1 and 2: Conforming to ATEX 94/9/EC: II 2G, Type of Protection: Ex d IIC Gb, Dusts, Zones 21 and 22:, Conforming to ATEX: II 2D, Type of Protection: Ex t IIIC Db, Ambient Temperatures: -40 C to + 150 C, (40 F to + 302 F), Ex Standards: EN 60079-0, 60079-1, EN 60079-31, ATEX Certificate : LCIE 11 ATEX 3006U, Index of Protection according EN/IEC 60529: IP66. - Appleton - Emerson - EXGJH-112 - EXGJH-112
