For Sale by Machine Tool Technologies
Description
AMTEK APC 1200 Beam Coping System
Plasma / Oxy-Fuel / Fiber Layout
Full Material Handling Package Included
Machine Overview
The Amtek APC 1200 is a 5-axis CNC beam coping system designed for structural steel fabrication. Capable of cutting and coping on 3–4 sides of a profile, it processes beams, channels, angles, tubes, plates, and T-sections with plasma or oxy-fuel technology.
Machine Specifications
Working Envelope
Max Material Depth: 42" (1066 mm)
Max Material Height: 22" (558 mm)
Max Thickness:
6" (150 mm) with Oxy-Fuel
0.75" (20 mm) with Plasma
Axis Configuration (5 Axis)
X: 38"
Y: 72"
Z: 24"
W: 360° Rotation
V: -90° to +60° Bevel
Cutting Systems

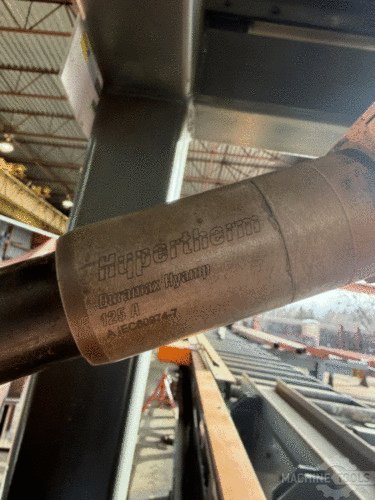

Plasma
Hypertherm Powermax 125
Mini Machine Torch
1" max pierce mild steel
5/8" bevel @ 45°
Approx. 5x faster than oxy-fuel
Oxy-Fuel
Koike 2.5" torch
Propane / Propylene / Acetylene compatible
Gas or liquid oxygen
Fiber Optic Layout System
Raycus 50W Fiber Head
8" focal length
Ideal for part marking and layout
Requires MD-60 Measurement System

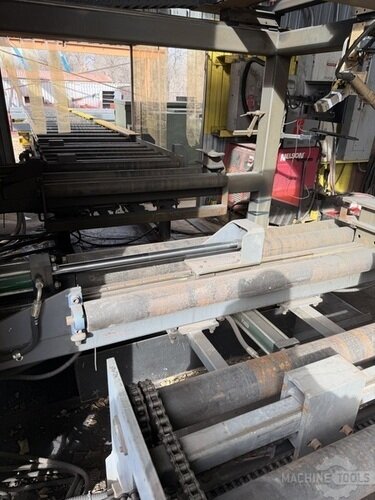

Clamping & Material Handling
Hydraulic Clamps
Full stroke clamps
Max depth: 47"
1000 PSI
Manual or automatic operation
Hydraulic Lift Rollers
47" max depth
1000 PSI
Automatic lift during material advance

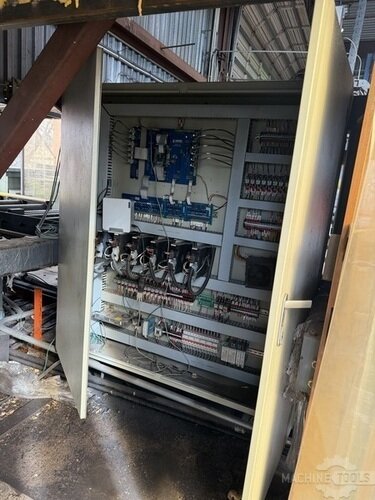

Controller & Software
Windows 10 Operating System
DSTV file import included
Manual programming included
Wi-Fi + RJ45 networking
Wired remote with start/stop/pause/retrace
Probing system for flange and web detection
Automatic zero start detection
Measuring System
MD-60 Integrated Measuring System
Measures up to 60' length
20 IPS feed capability
AC servo with brake
Entry-side measurement
Power Requirements
220 VAC
3 Phase
30 Amps
Hydraulic Unit: 5 HP
Yaskawa Servo Drives (400W, 3000 RPM, 10:1 gearbox)

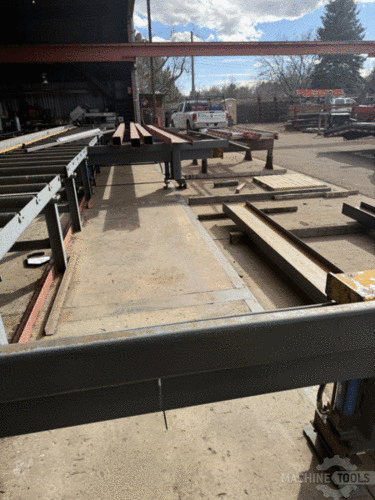

Included Material Handling (60’ In / 40’ Out System)

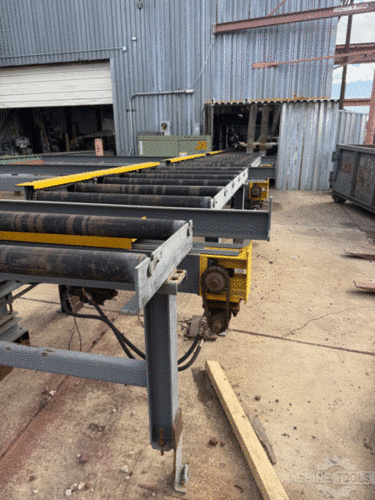

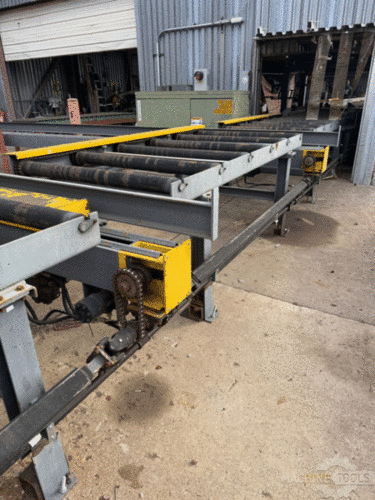

(10) 100" Heavy Duty Powered Roller Conveyors (44" wide)
1,000 lbs per foot capacity
Double 44" wide conveyor section
(3) Infeed Cross Transfers
(3) Outfeed Cross Transfers
20 HP Hydraulic Power Unit
Heavy Duty Beam Rotator (8,000 lbs per unit / 16,000 per set)
Wireless control cabinet

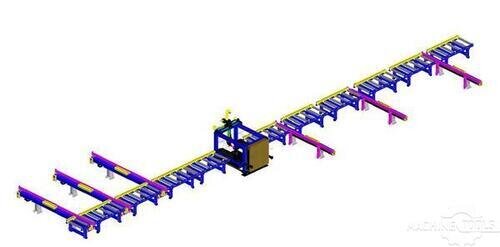

System Layout
Configured Right-to-Left Flow
Approximate Overall Footprint:
~112’ total system length (including APC machine and conveyors)
