Ametek Gemco Mill Duty Linear Displacement Transducer 950MD14.0A0B0CXX 24 VDC

Used in steel mills, hydraulic cylinder retrofits, and heavy industrial automation systems, the Ametek Gemco 950MD14.0A0B0CXX is a mill-duty linear displacement transducer assembly with a 14.0 inch active stroke. The 950MD series features a 304 stainless steel protective housing designed to shield the internal rod-style LDT from temperature extremes, corrosives, shock, vibration, dust, and debris. The two-point mounting scheme allows for lateral and horizontal movement compensation during operation, making it suitable for demanding process environments without requiring cylinder gun drilling or tear-down.

Per published Ametek Gemco specifications, the 950MD series accepts input power of 24 VDC at 85 mA maximum, with analog output options of 0 to 10 VDC or 4 to 20 mA. Linearity is rated at 0.01 inch. The housing is rated for operation up to 3,000 PSI operational pressure. The guide tube is rated for operating temperatures from negative 40 to 185 degrees F.

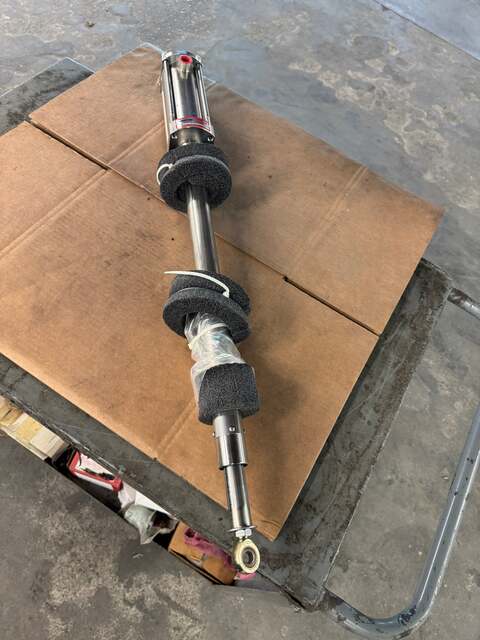

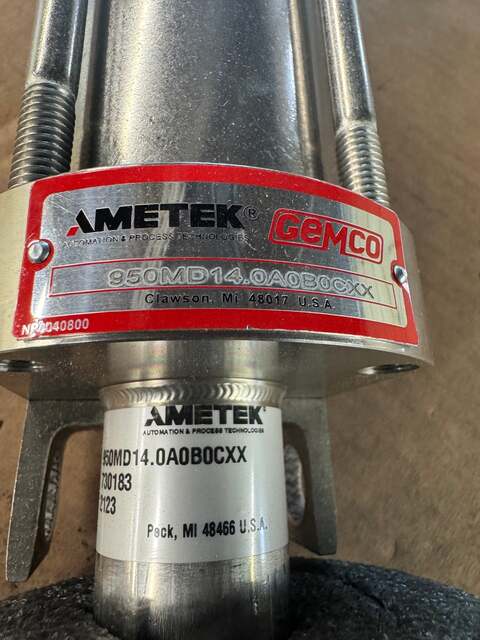

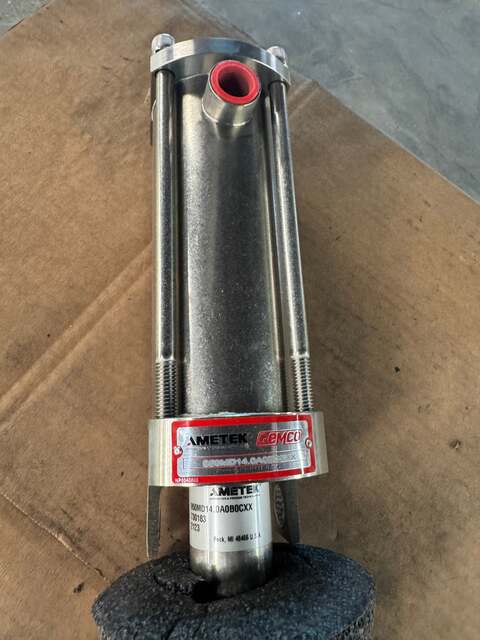

The nameplate identifies the manufacturer as Ametek Automation and Process Technologies operating under the Gemco brand, with the model number 950MD14.0A0B0CXX confirmed on both the stamped nameplate and the secondary Ametek label. Additional identifiers visible on the secondary label include serial number 730183 and date code 2123, indicating manufacture in the first quarter of 2023. The item was manufactured in Peck, MI, USA. Foam protection and a clevis rod-end mount are present.

Stock # 0526-02509
