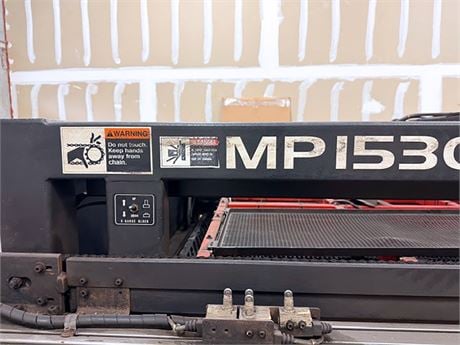

Amada #MP1530, load / unload system, 5' x 10' max sheet, 27.5" x 11.8" min sheet, 24 gauge - 1/4" thickness, 5,500 lb stack, 34 sec. cycle, 2010

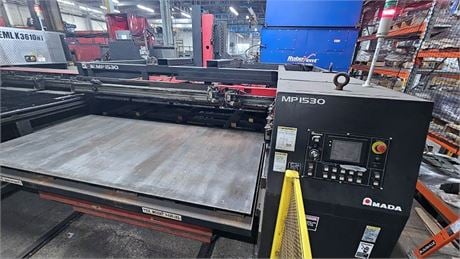

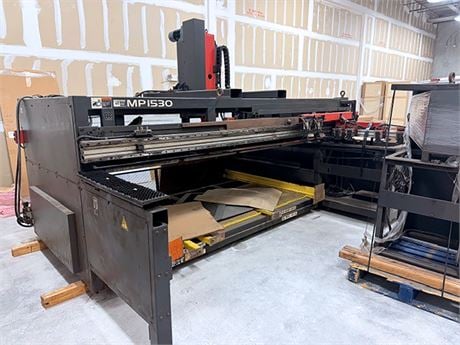

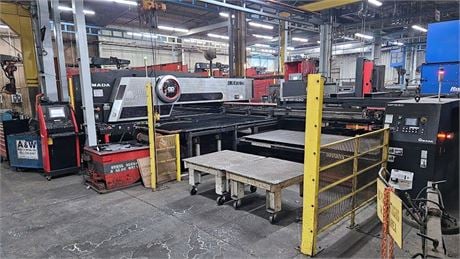

Amada MP1530 Load/Unload Machine (2010)

Description

Maximum Sheet Size: 5 feet x 10 feet (60" x 120")
Minimum Sheet Size: 27.5" x 11.8"
Thickness Range: 24 gauge up to 1/4" thick (0.6mm to 6.3mm)
Compatible Materials: Mild steel, stainless steel, and aluminum
Maximum Stack Capacity: 5,500 lbs (Material cart weight capacity)
Maximum Stack Height: 10.25" total (including a standard 4" wood shipping skid)
Cycle Time: Average of 34 seconds to complete a full load/unload cycle

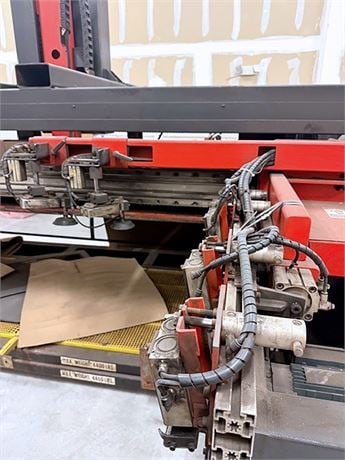

Separation Methods: Combines an edge lifter, a magnetic separator, and an air knife to prevent lifting double sheets
Overall Length: 201 inches
Overall Width: 163 inches
Overall Height: 105 inches

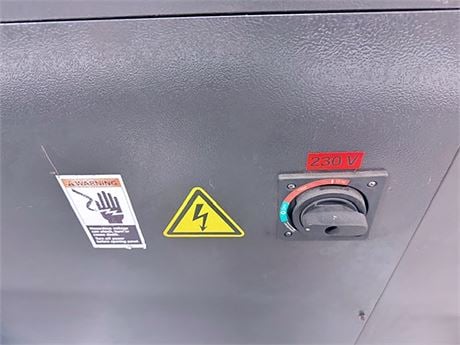

Electrical Supply: 230V / 460V (3-Phase)
Power Capacity: 10 kVA minimum
Air Supply Needed: 75 PSI minimum at a flow rate of 31.8 CFM

Equipped With

Loader/Unloader Only
