Allen-Bradley Variable Speed Drive 160-BA02NSF1 380-460V 3-Phase

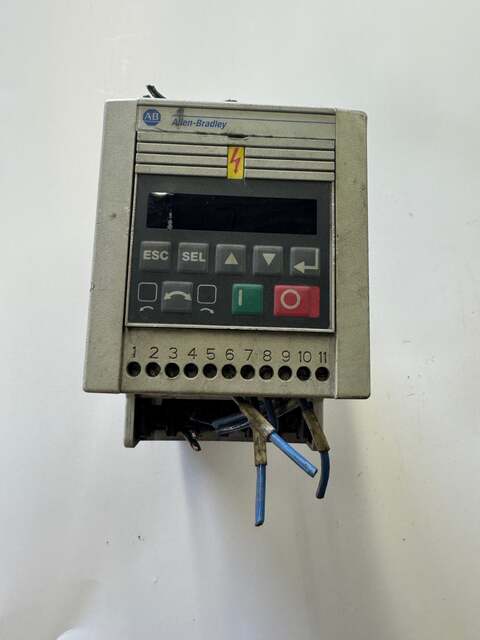

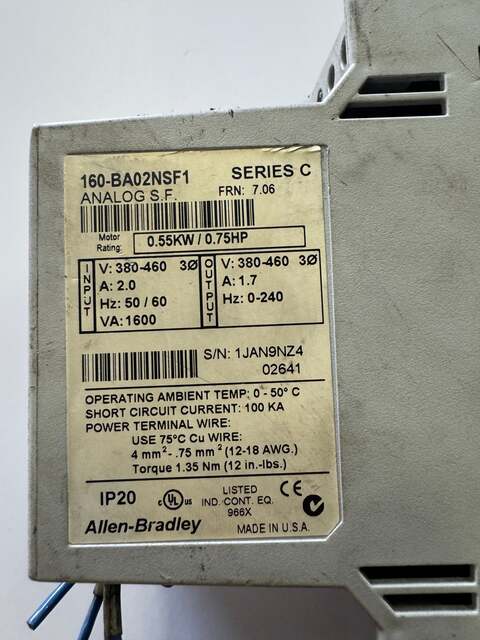

The Allen-Bradley 160-BA02NSF1 is a compact 160 Series Smart Speed Controller (SSC) designed to control three-phase AC induction motors through variable frequency output. The nameplate confirms Series C, FRN 7.06, with an input rating of 380-460V, 3-phase, 2.0A, 50/60 Hz, 1600 VA and an output rating of 380-460V, 3-phase, 1.7A, 0-240 Hz. Motor rating is 0.55 kW / 0.75 HP. The analog signal follower (S.F.) configuration enables speed control via an external analog reference signal. Serial number 1JAN9NZ4 02641 is visible on the nameplate. Enclosure is IP20 open style. Operating ambient temperature range is 0 to 50 degrees C. Short circuit current rating is 100 KA. Power terminal wiring requires 75 degree C copper wire, 4 mm2 to 0.75 mm2 (12-18 AWG), torqued to 1.35 Nm (12 in.-lbs.). The unit carries UL listing (IND. CONT. EQ. 966X) and CE marking, and is made in the USA. Rockwell Automation has discontinued the 160 SSC series; this unit represents surplus removed-from-service stock. The 160-BA02NSF1 is commonly sourced as a replacement or spare for legacy machine control systems where Allen-Bradley 160 Series drives remain in service.

Stock # 0426-02106
