Allen-Bradley Toggle Switch 800T-T4T8 AAXX 600V Allis-Chalmers

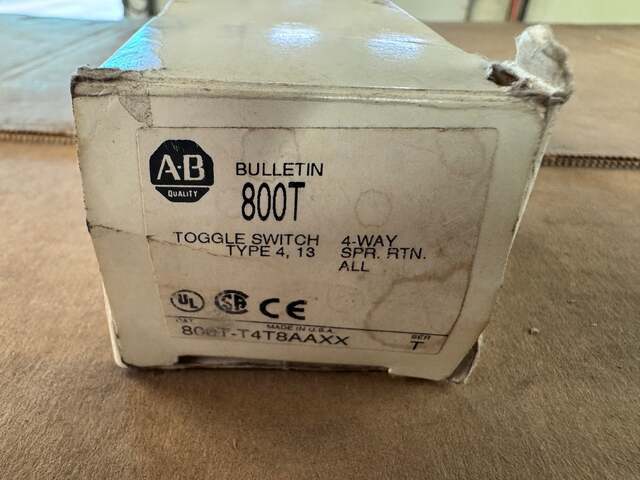

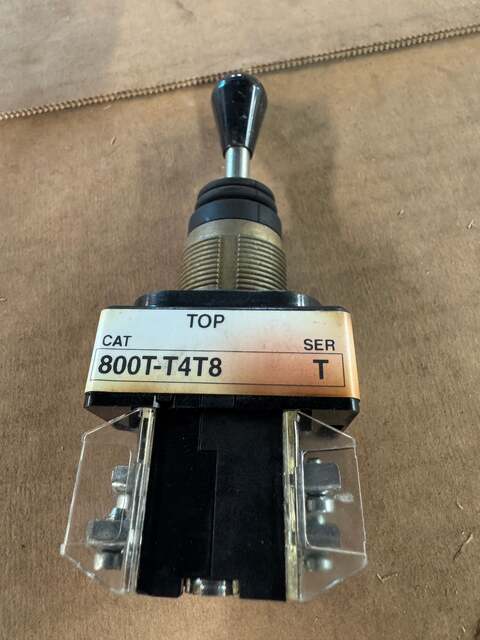

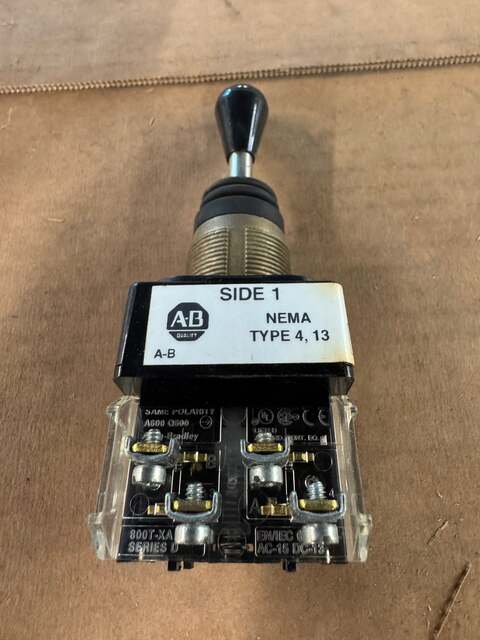

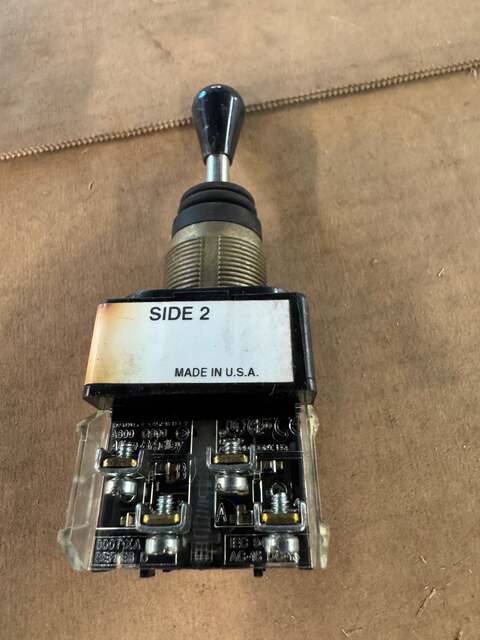

The Allen-Bradley 800T-T4T8AAXX is a 30.5 mm four-way toggle switch rated for NEMA Type 4 and 13 enclosures. It operates at up to 600V AC and 10 amps, with a spring-return-to-center action in all four positions: up, down, left, and right. The contact configuration is 2 NO / 2 NC, with dual contact blocks visible on the unit, one per side, each labeled Series D. CAT number 800T-T4T8 is confirmed on the top nameplate label, Series T. The box label confirms the full catalog number as 800T-T4T8AAXX, also Series T, Made in U.S.A. UL and CSA listed with CE marking. The contact blocks are stamped 800T-XA and conform to IEC ratings for AC-15 and DC-13 duty. A600 / Q600 contact ratings are visible on the contact block label. Wiring accommodates 18 to 14 AWG conductors. The toggle operator features a black lever-style handle with a metal mounting bushing, compatible with standard 30 mm panel cutouts. The original box is present but shows wear and corner damage. The unit itself shows no visible signs of use or installation.

Stock # 0526-02454

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
