Allen-Bradley Power Supply 1606-XLP30E

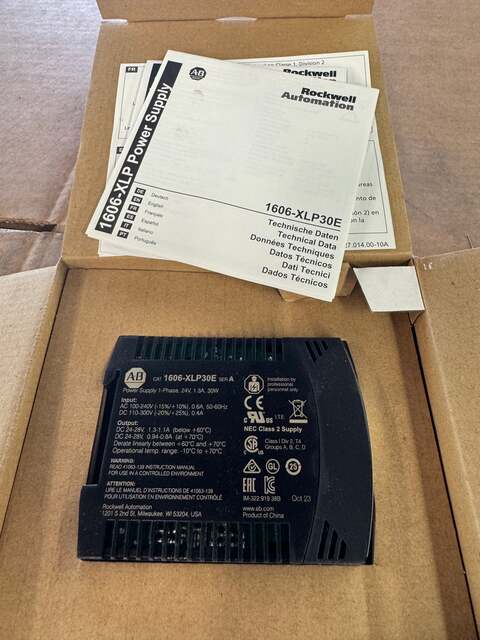

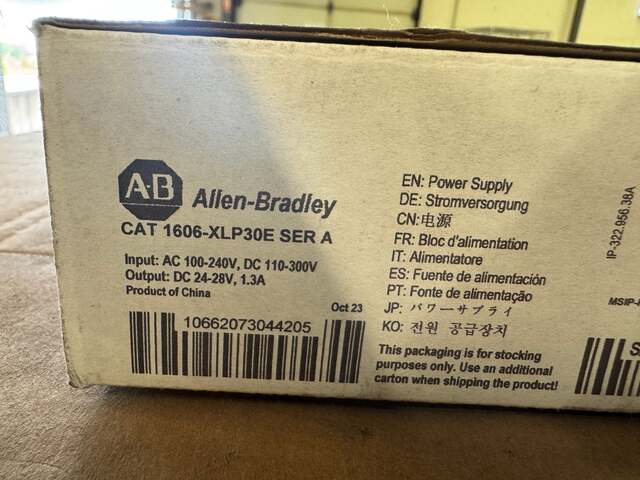

The Allen-Bradley 1606-XLP30E is a compact single phase switched mode power supply from the Bulletin 1606-XLP Series, designed for DIN rail mounting in control panels with limited installation space. This Series A unit carries the catalog number 1606-XLP30E and ships in the original Rockwell Automation packaging with the multilingual technical data sheet included. Date code Oct 23 is printed on the nameplate.

Rated input accepts AC 100 to 240V at 50 to 60Hz drawing 0.6A, or DC 110 to 300V drawing 0.4A. Output is DC 24 to 28V at 1.3 to 1.1A below 60 degrees C, and 0.94 to 0.8A at 70 degrees C, with linear derating between those temperature points. Total rated output is 30W. Operational temperature range spans negative 10 degrees C to positive 70 degrees C.

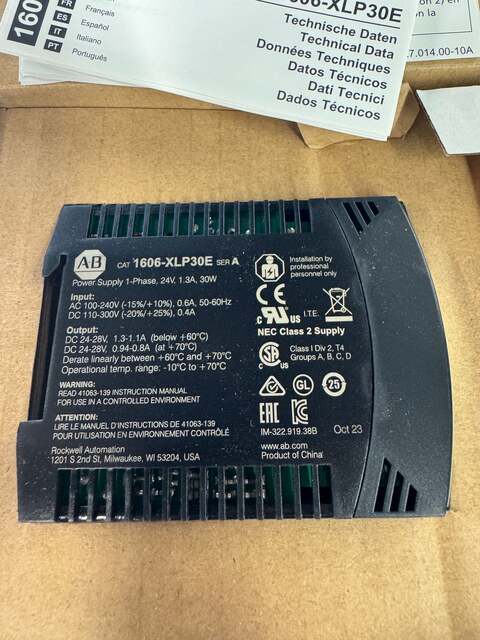

Approvals visible on the nameplate include UL recognized for Information Technology Equipment, cUL, NEC Class 2 Supply, CSA Class I Division 2 Groups A, B, C, D with T4 temperature code, CE, EAC, KC, GL, and RCM. Suitable for use in hazardous location panels meeting Class I Division 2 requirements.

Typical applications include 24V DC control circuits, PLC and HMI auxiliary power, sensor and instrumentation power, and machine control panels where compact form factor and global input voltage compatibility are required. Manufacturer published dimensions are 45 x 75 x 91 mm and lifecycle status remains Active per Rockwell Automation. Part number 1606-XLP30E, manufactured by Rockwell Automation, 1201 S 2nd St, Milwaukee, WI 53204, USA.

Stock # 0526-02403

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
