Allen-Bradley Input Module 1771-IBD/B 10 to 30 VDC

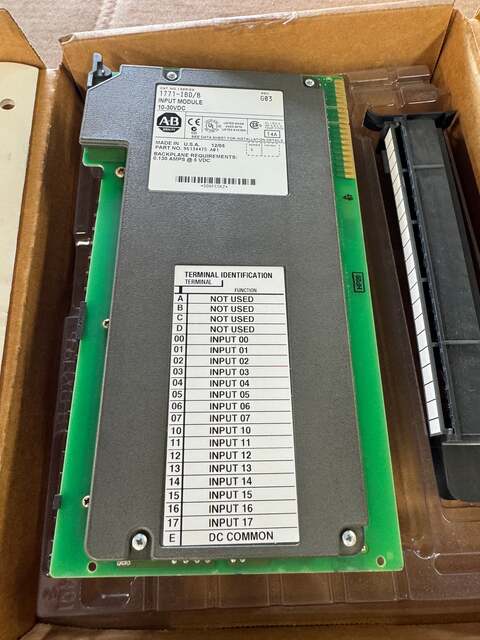

The Allen-Bradley 1771-IBD/B is a 16 point digital DC input module designed for use with the PLC-5 programmable controller family in 1771 I/O chassis. This Series B module accepts input voltages from 10 to 30 VDC and provides sinking input configuration for interfacing source switching field devices such as proximity sensors, photoelectric sensors, pushbuttons, selector switches, and limit switches. The module is part number 96134475, revision A01, with catalog revision G03 and date code 12/05, manufactured in the U.S.A. at the Dublin facility. Backplane current requirement is 0.130 amps at 5 VDC, drawn from the chassis power supply. The 16 input channels are addressed 00 through 07 and 10 through 17, with a dedicated DC Common terminal. Field wiring is terminated via the 1771-WH wiring arm, accommodating 14 gauge stranded conductors. Minimum on state voltage is 10 VDC and maximum off state voltage is 5 VDC. Input signal delay is 1 millisecond low to high, with selectable 1 or 6 millisecond high to low filtering. The unit carries UL listing, CSA certification including Class I Division 2 Groups A, B, C, D for hazardous locations with T4A temperature code, and CE marking. Compatible with all 1771 I/O chassis except 1771-A1, 1771-A2, and 1771-A4. Includes 18 LED status indicators for module power and individual channel state visibility. Item is packaged with original Rockwell Automation literature and factory shipping materials.
