Allen-Bradley I/O Option Module 20-750-2262C-2R 24 VDC

The Allen-Bradley 20 750 2262C 2R is a 24V DC I/O option module designed for use with PowerFlex 753 and PowerFlex 755 variable frequency drives. Catalog number 20 750 2262C 2R, Series A, ships factory sealed with firmware version 1.008 as labeled. Part number PN 102577, UPC 884951062535, serial number 25328747, manufactured 2013/04/18 in the USA.

This 22 Series option module provides 6 digital inputs, 2 analog inputs, 2 analog outputs, and 2 relay outputs within a single expansion card that mounts into a PowerFlex 750 Series drive option port. Device power rating is +12V DC at 300 mA and 12V DC at 150 mA. The relay outputs support general purpose switching for auxiliary control circuits, while the analog channels accommodate process feedback and command signals commonly used in motor control applications. Digital inputs are opto isolated and rated for 24V DC logic.

Certifications shown on the label include UL Listed (Industrial Control Equipment, file 966X), cUL, CE, C Tick (N223), and KC (KCC REM RAA 20 750). The module is intended for integration into industrial automation systems for motor speed regulation, conveyor control, pump and fan control, and other PowerFlex 750 Series drive applications. The PowerFlex 753 platform supports applications up to 400 HP and 270 kW, with the 755 platform extending to higher horsepower ratings.

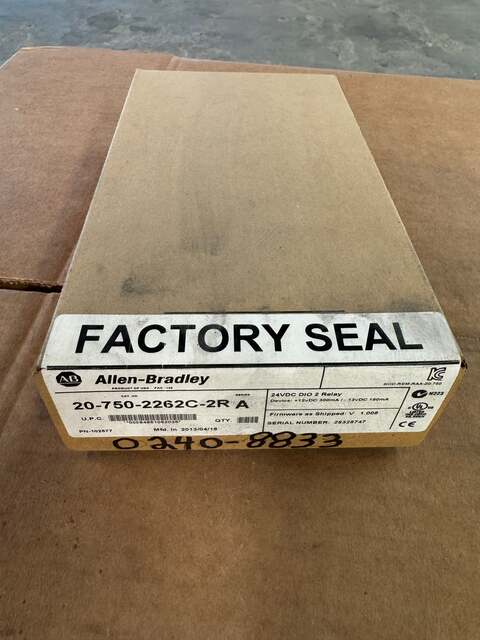

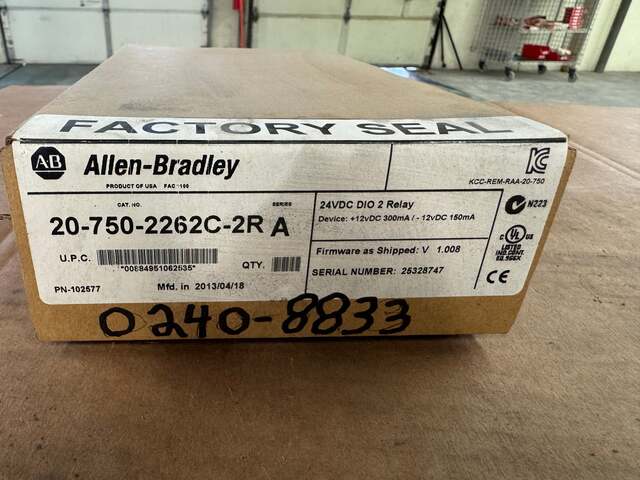

Original Allen-Bradley factory carton with Factory Seal label intact. Catalog number, series designation, firmware revision, and serial number remain readable on the carton label.

Stock # 0526-02337
