Allen-Bradley AC Drive Allen-Bradley 480V 3-Phase

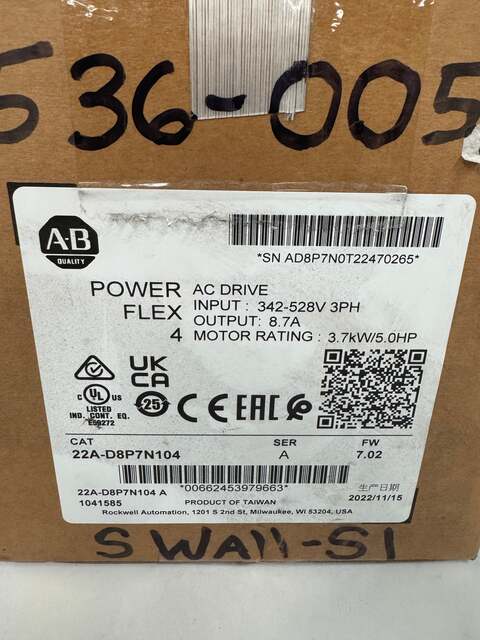

The Allen-Bradley PowerFlex 4 AC Drive, catalog number 22A-D8P7N104, is a compact variable frequency drive rated at 3.7 kW (5.0 HP) for use with three-phase AC motors. Nameplate data confirms input voltage of 342 to 528V AC, three-phase, with an output current of 8.7A. The unit carries a motor rating of 3.7 kW / 5.0 HP and operates across a frequency range consistent with the PowerFlex 4 series platform. Series A, firmware version 7.02, manufactured November 2022. Serial number AD8P7N0T22470265. Product of Taiwan, manufactured by Rockwell Automation.

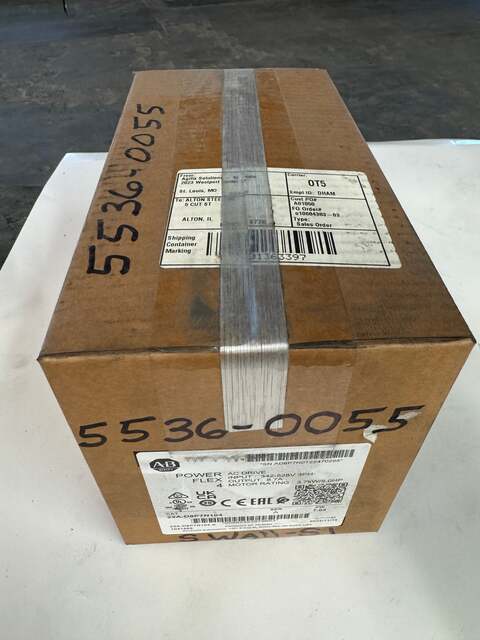

The PowerFlex 4 series is a general-purpose component-class AC drive widely used in pumping, conveying, fan, and general machinery applications requiring basic V/Hz speed control. This unit ships in its original factory-sealed carton with all original packaging intact. The PowerFlex 4 is UL Listed (file E59272) and carries CE, EAC, and UKCA marks as visible on the label. Compatible with standard three-phase motor installations in the 480V class. Cross-references to Rockwell Automation catalog 22A-D8P7N104, also referenced in documentation as 22A D8P7N104 and 22AD8P7N104.

Stock # 0526-02222
