Description
Product Specs
- Manufacturer: Allen-Bradley
- MPN / Model: 20AD5P0A3AYNNNC0
- Product Type: PowerFlex 70 AC Drive (VFD)
- Series: A
- Voltage Class: 480V AC
- Phase: 3 Phase
- Input Frequency: 47 to 63 Hz
- Input Voltage Range: 342 to 528 VAC
- Output Frequency: 0 to 400 Hz
- Output Voltage Range: 0 to 480 VAC
- Output Current: 5 A continuous
- Normal Duty Power: 2.2 kW / 3 HP
- Heavy Duty Power: 1.5 kW / 2 HP
- Frame Size: B
- Enclosure: Panel Mount, IP20 / NEMA / UL Type 1
- Control: Enhanced Control

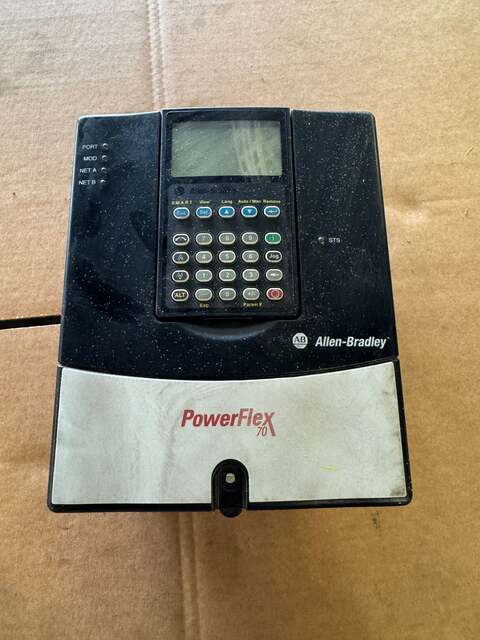

- Display: Full Numeric LCD Keypad
- Brake: Brake IGBT installed, no internal brake resistor
- Communication Module: None
- Feedback: None
- Date of Manufacture: January 28, 2011
Product Description
Allen-Bradley 20AD5P0A3AYNNNC0 is a PowerFlex 70 adjustable frequency AC drive rated for 480V AC, 3 phase input, with a 5 A continuous output current and a normal duty rating of 2.2 kW (3 HP). Heavy duty rating is 1.5 kW (2 HP). This is a Series A unit in a Frame B panel mount enclosure with an IP20 / NEMA / UL Type 1 rating.

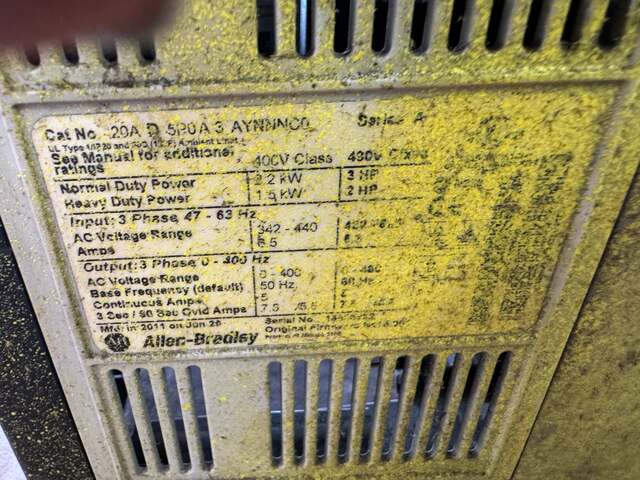

The drive features Enhanced Control, a full numeric LCD keypad for local programming, and a built in brake IGBT. No communication adapter, encoder feedback module, or internal brake resistor is installed in this configuration. Input voltage range covers 342 to 528 VAC at 47 to 63 Hz, and output frequency spans 0 to 400 Hz. The nameplate shows a manufacture date of January 28, 2011.
PowerFlex 70 drives are commonly used for general purpose motor speed control on conveyors, pumps, fans, mixers, and similar 3 phase industrial applications. Buyers searching for a 480V, 3 HP Allen-Bradley VFD with enhanced control and the standard NEMA Type 1 panel mount enclosure can identify this unit by the full catalog string 20AD5P0A3AYNNNC0.
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
