ALC Automated Logic Corporation LGE Ethernet Router Module Gateway

$1,096 USD

Request Formal Quote

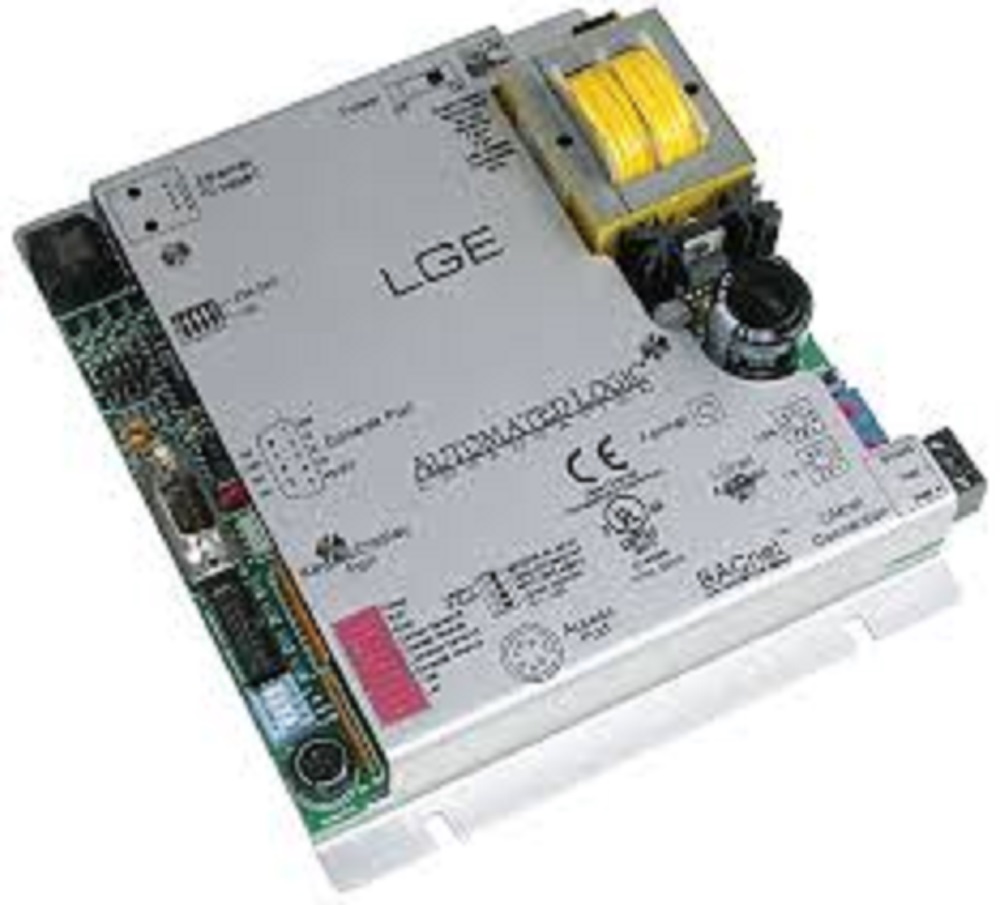

ALC Automated Logic Corporation LGE Ethernet Router Module Gateway - ALC Automated Logic Corporation LGE Ethernet Router Module Gateway - The LGE is a gateway module that provides communication between a workstation and a control module network (CMnet) consisting of fewer than 100 modules. Up to 199 gateways can be networked together on an LGnet, allowing the LGEs to route global information between CMnets. Note that versions of SuperVision earlier than 3.01 do not support more than 60 gateways. The LGE provides an Ethernet 10base-T port for 10Mbps communication with the LGnet, one console port that can be connected to a workstation or portable computer, and an Access Port. The console port has a 9-pin connector that can be used to connect to a workstation, portable computer, or modem. TCP/IP (Transmission Control Protocol/Internet Protocol) is a family of protocols used for computer communications. The LGE uses the UDP/IP (User Datagram Protocol/Internet Protocol) of the TCP/IP family. The workstation must be configured to communicate with the LGE over TCP/IP as discussed in the document TCP/IP Setup for SuperVision. The LGE uses the CEM module driver; for more information, see the CEM Module Driver document. - Automated Logic - Automated Logic Corporation - LGE - LGE
