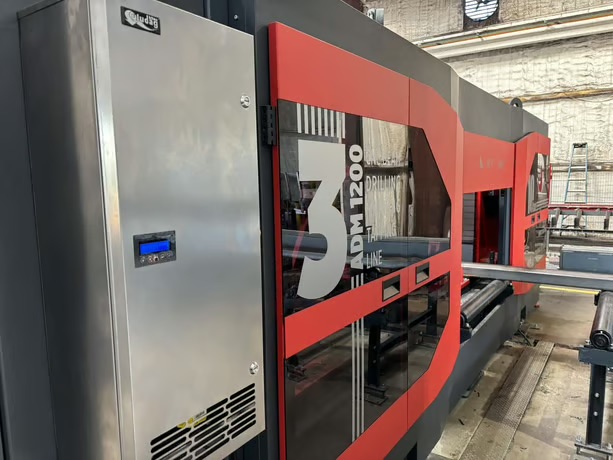

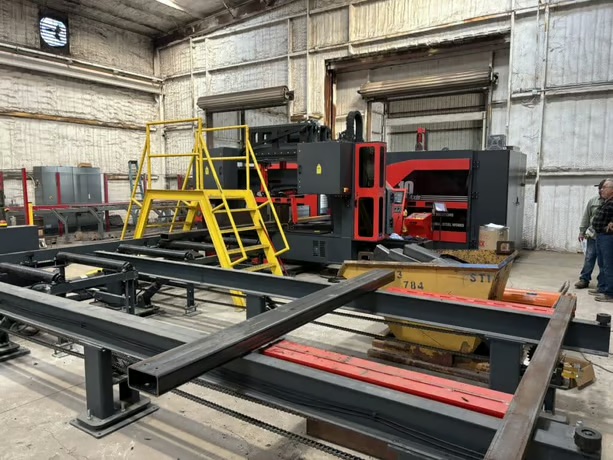

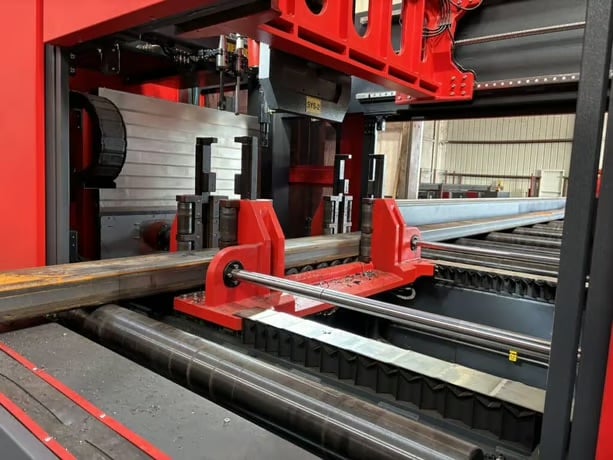

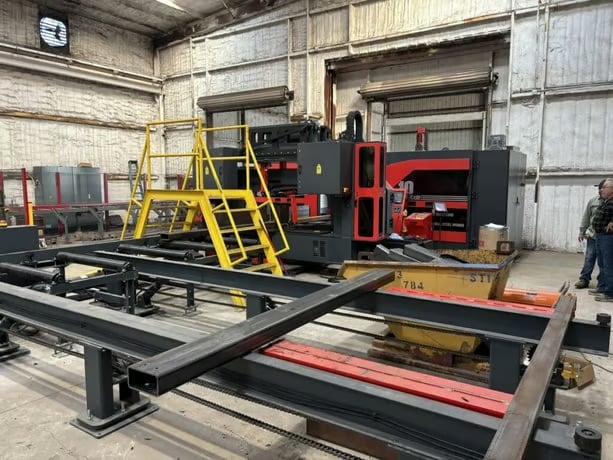

Akyapak #3ADM-1200, CNC Drilling Line, 2025 - 51" X 23" Ast1300 Double Miter Bandsaw, 3-spindle 10-axis, Chip Conveyor, Transfer Tables

Capabilities: Drilling, Milling, Tapping, Countersinking, Layout Marking
Material: Beam, Channel, Tube, Angle, Plate
Min Beam Size: 8″ x 3.15″
Max Beam Size: 48″ x 20″
Number of Drill Heads: 3
ATC Capacity: 4 Tools per Spindle, Total 12 tools (3 spindle x 4 tools), 17.64 lbs for Each Station
Drill Diameter: 3/8″ – 1-1/2″
Thread Tapping: M10 – M24
Drilling Thickness: 0.2″ – 3.94″
Tool Holder: BT40
Spindle Speed: 50 – 3,000 RPM (Stepless)
Vertical Spindle Strokes (X, Y, Z): 57″, 20″, 36″
Horizontal Spindle Strokes (X, Y, Z): 20″, 21″, 28″

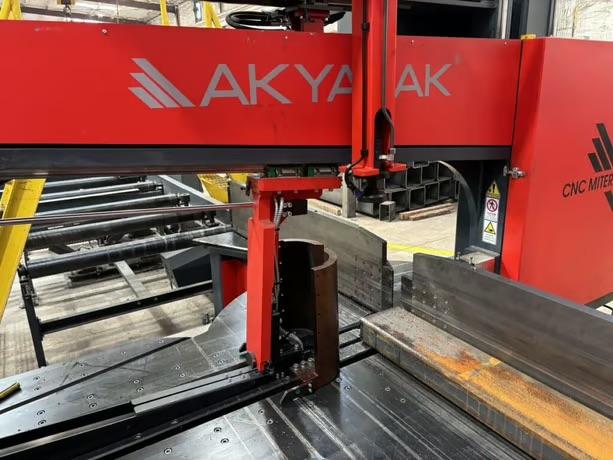

AST 1300 Saw Specifications
Main Saw Motor: 20 HP
Mitering Servo Motor: 2.0 HP
Chip Brush Motor: 0.16 HP
Hydraulic Pump Motor: 7.4 HP
Blade Length: 32.8’
Cutting Speed: 65 – 328’ / Min
Working Height: 31.5”
Mitering Angle: +60° / -60°
Sawing Capacity Max: 51” X 23”
Sawing Capacity Min: 2.56” X 1.77”
Upper Pressure Cylinders for Batch Cutting: Yes

Equipped With:
Siemens Touch-Screen Control

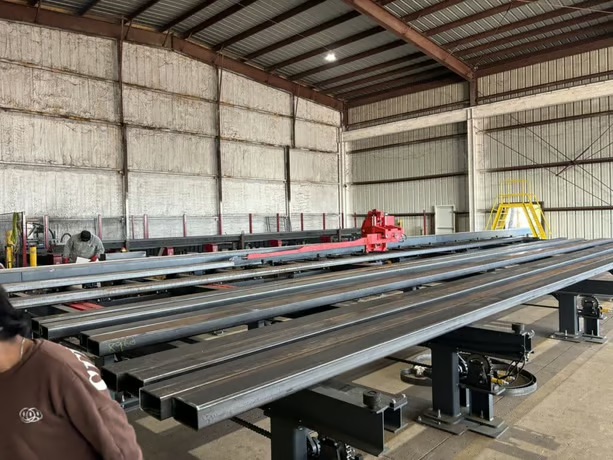

60’ Infeed & Outfeed

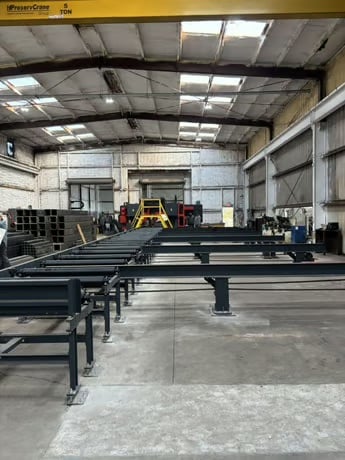

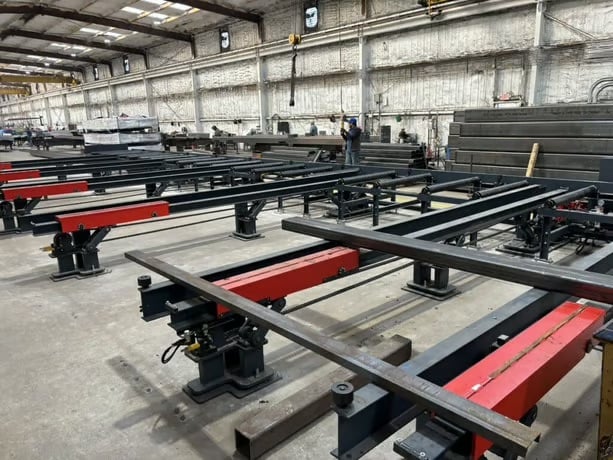

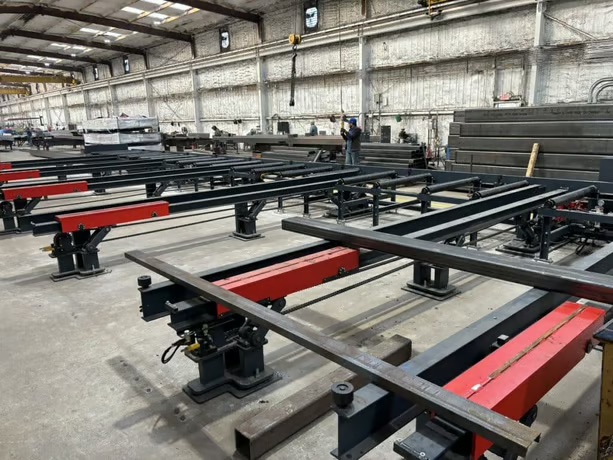

Transfer Tables
Underscribe Scribing Station
Automatic Tool & Material Measurement
Chip Conveyor
Oil Cooler

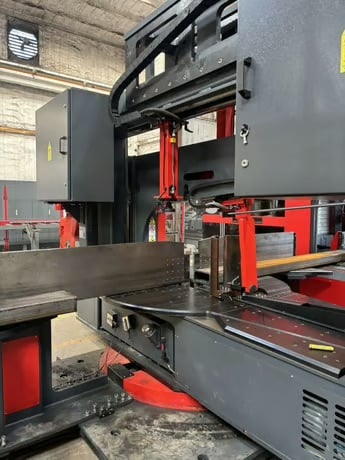

Akyapak AST 1300 Horizontal Bandsaw
