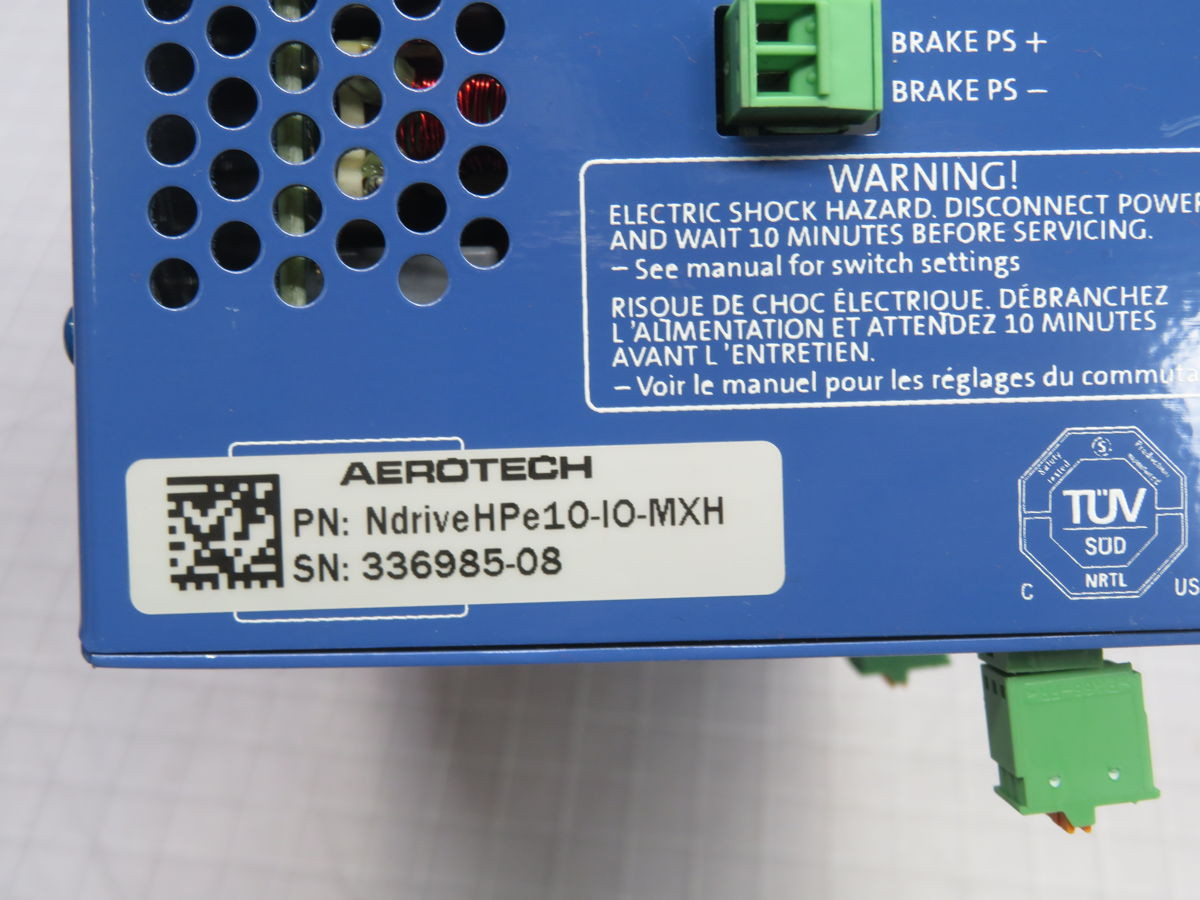

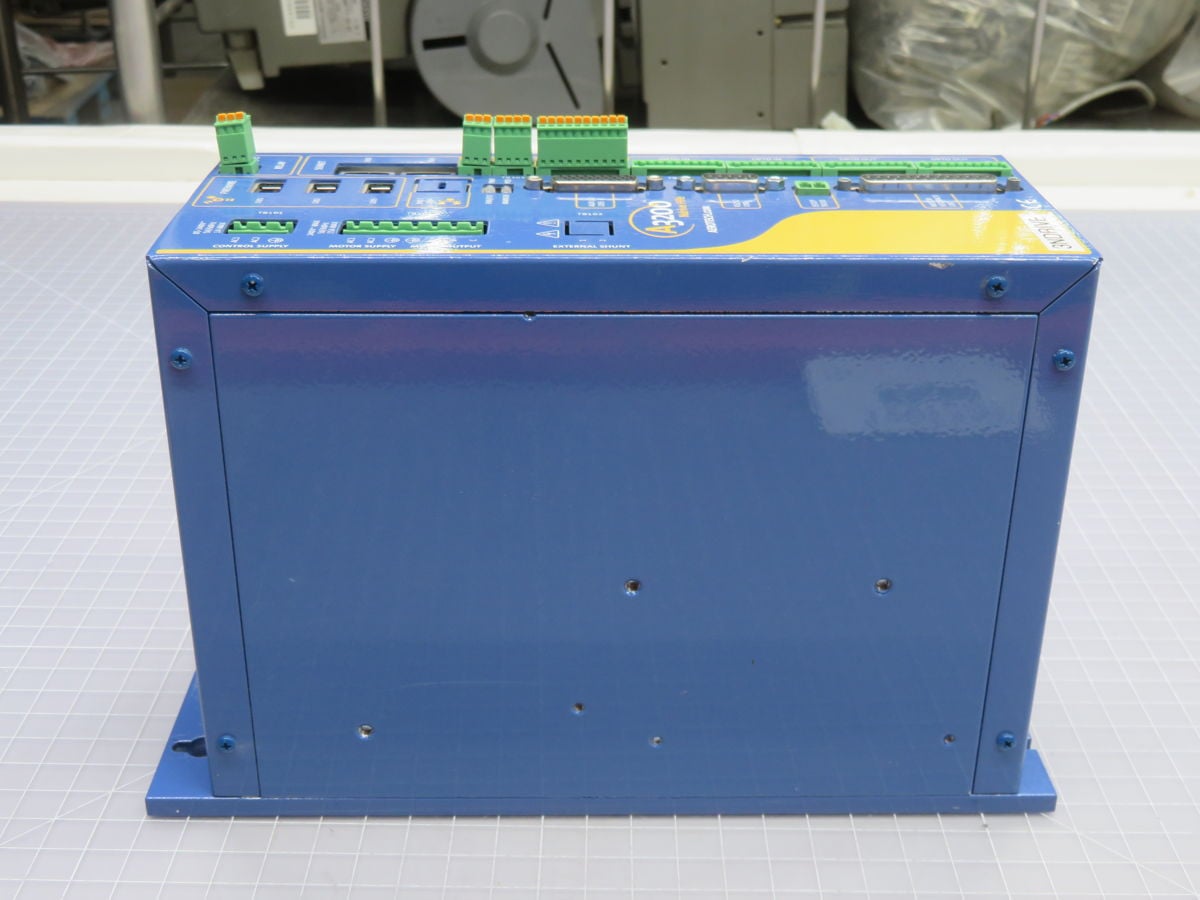

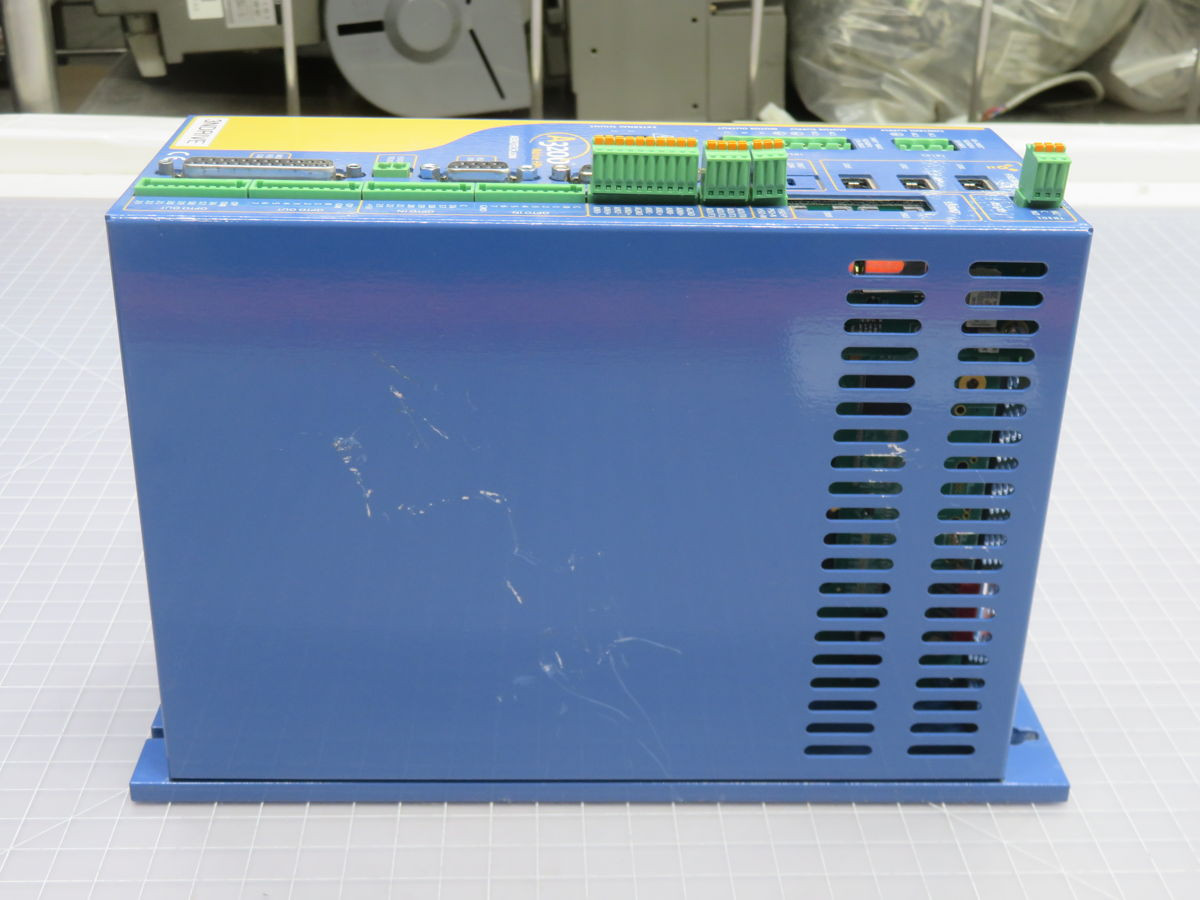

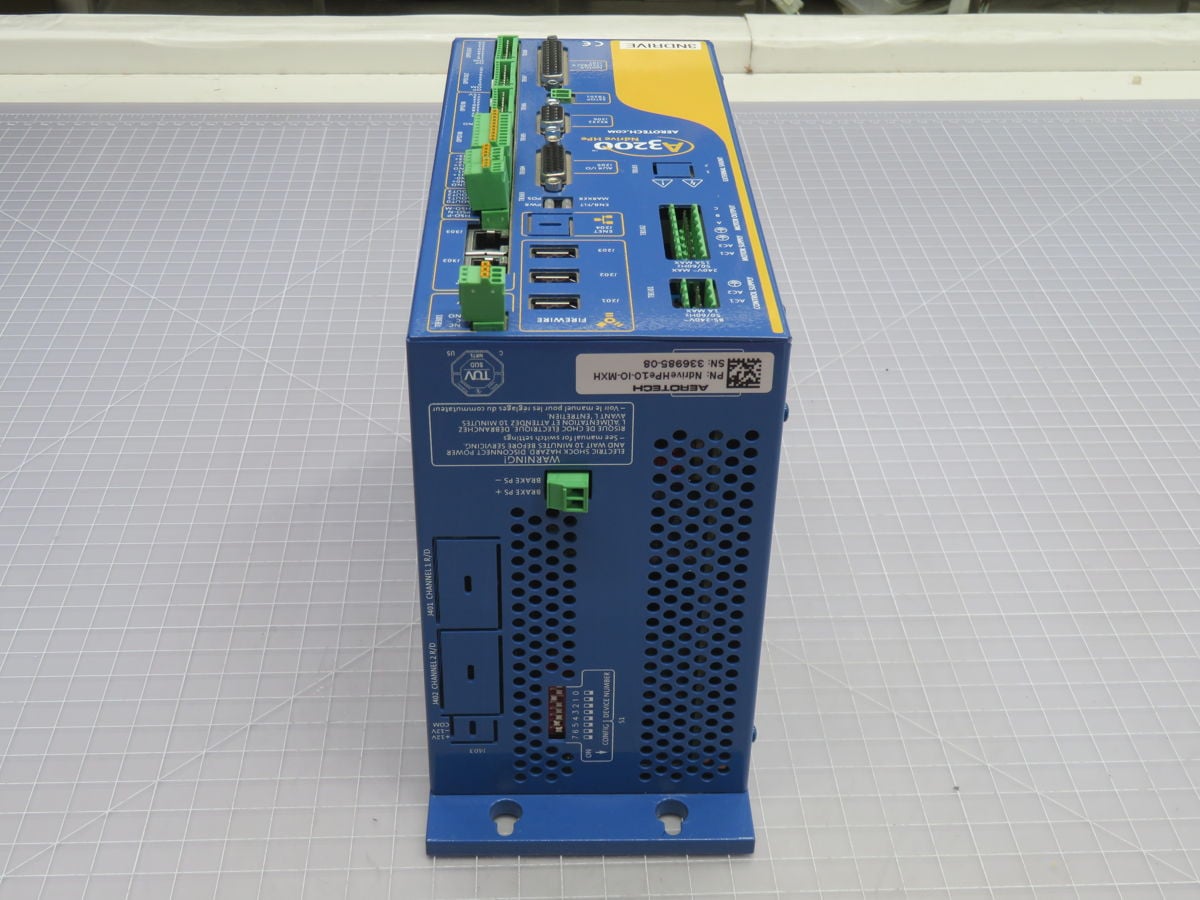

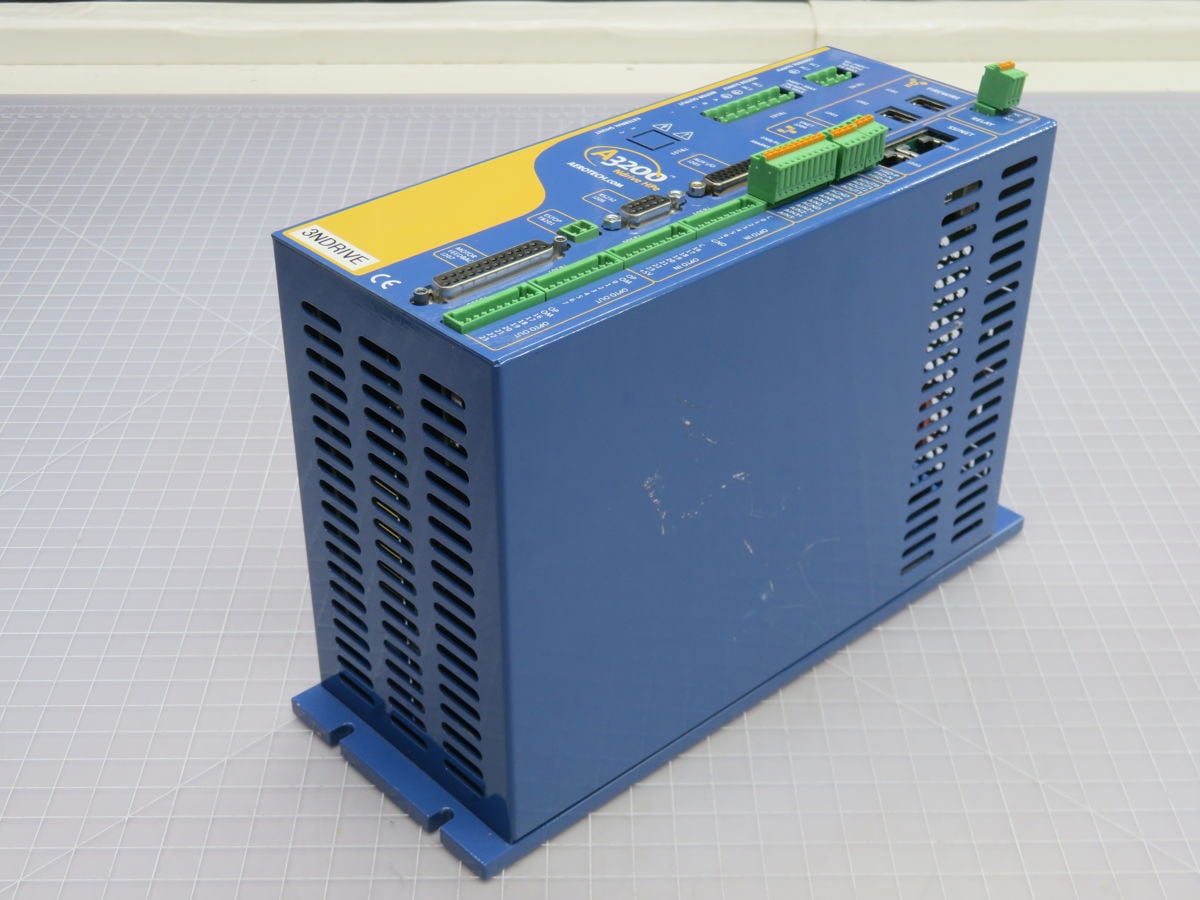

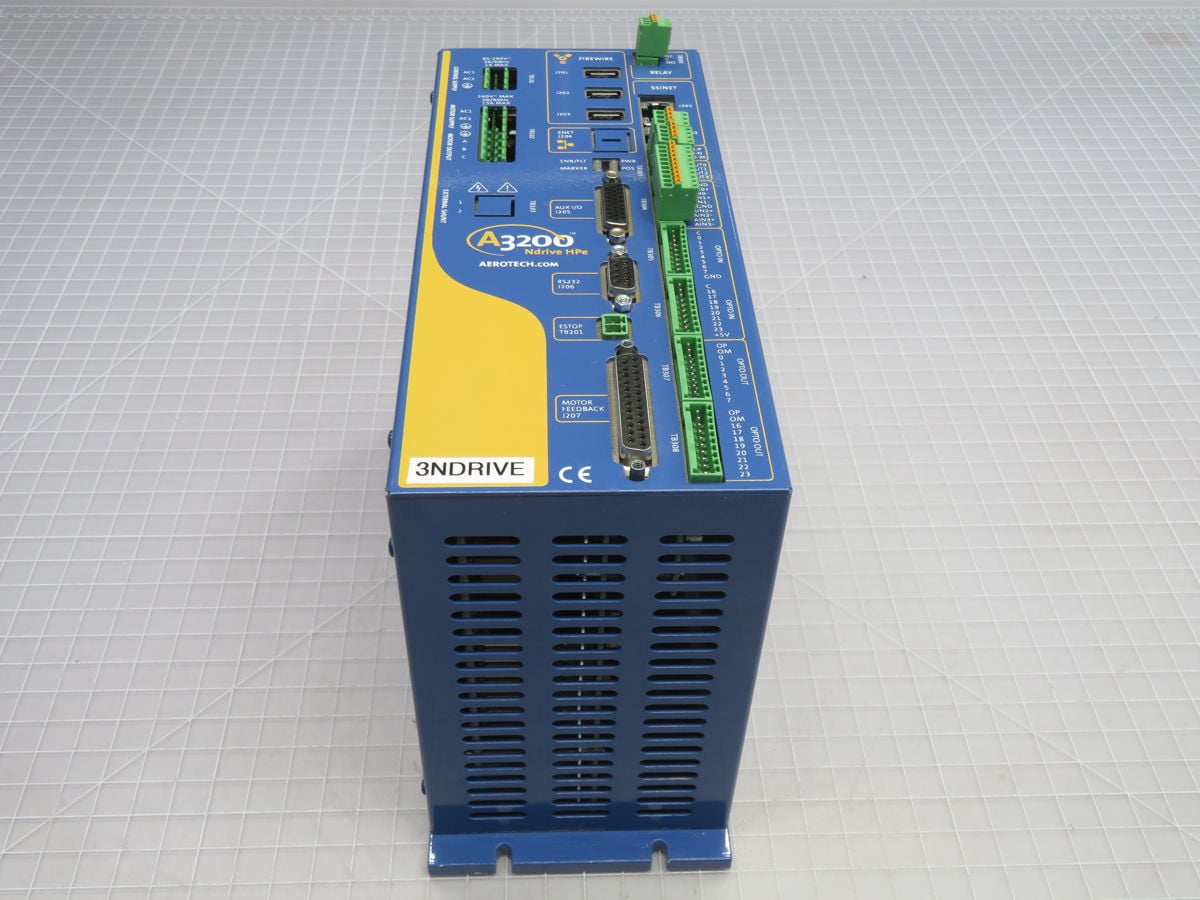

Aerotech #NDRIVEHPE10-IO-MXH, Servo Drive, 5 Amps, 115/230 VAC Input

$1,499 USD

Request Formal Quote

The Aerotech NDRIVEHPE10-IO-MXH is a digital servo amplifier from the NDRIVE HPE series, designed for precision motion control and compatible with the A3200 motion control platform. It accepts 115/230 VAC (1- or 3-phase) input, generating an internal bus voltage of 160 VDC or 320 VDC, respectively. The unit delivers a continuous output current of 5 A (RMS) and a peak output current of 10 A. It supports a variety of motor types, including brushed, brushless, and stepper motors. Advanced digital control loops manage current, velocity, and position. Feedback capabilities include quadrature, sinusoidal, resolver, and absolute encoders (EnDat, Hiperface, BiSS, SSI), leveraging an MXH encoder multiplier for enhanced resolution. Integrated I/O expansion provides 8 digital inputs, 4 digital outputs (TTL), 2 analog inputs, and 2 analog outputs.
