Adco #15DBC105SS, Automatic Horizontal Glue Cartoner, 120 cartoner/min., 9-1/2" x 4" W x 12" D Carton Capacity

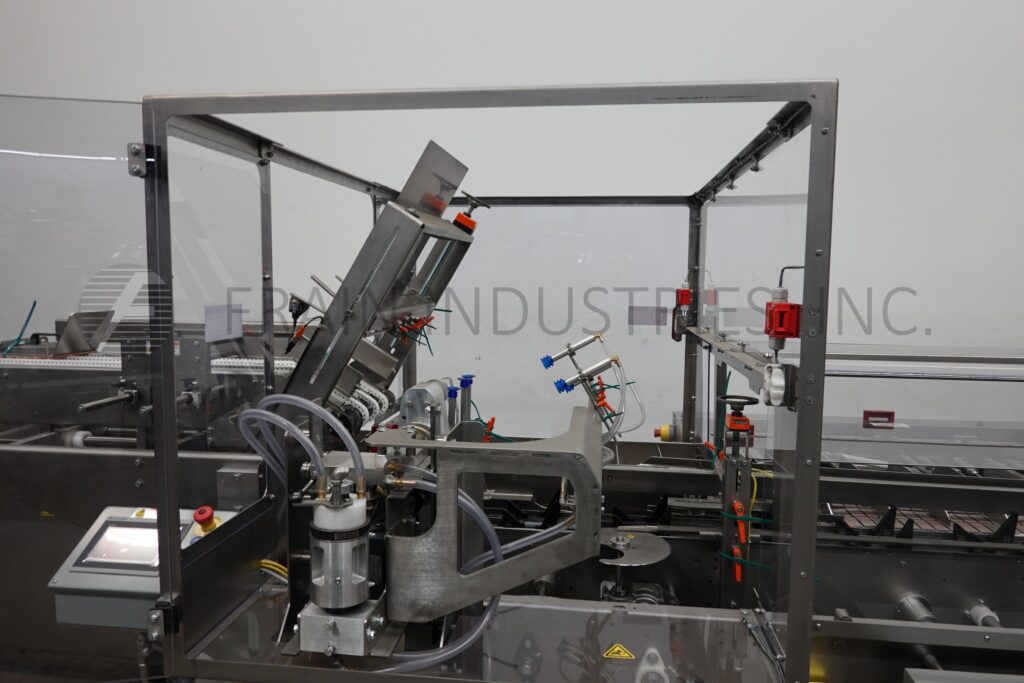

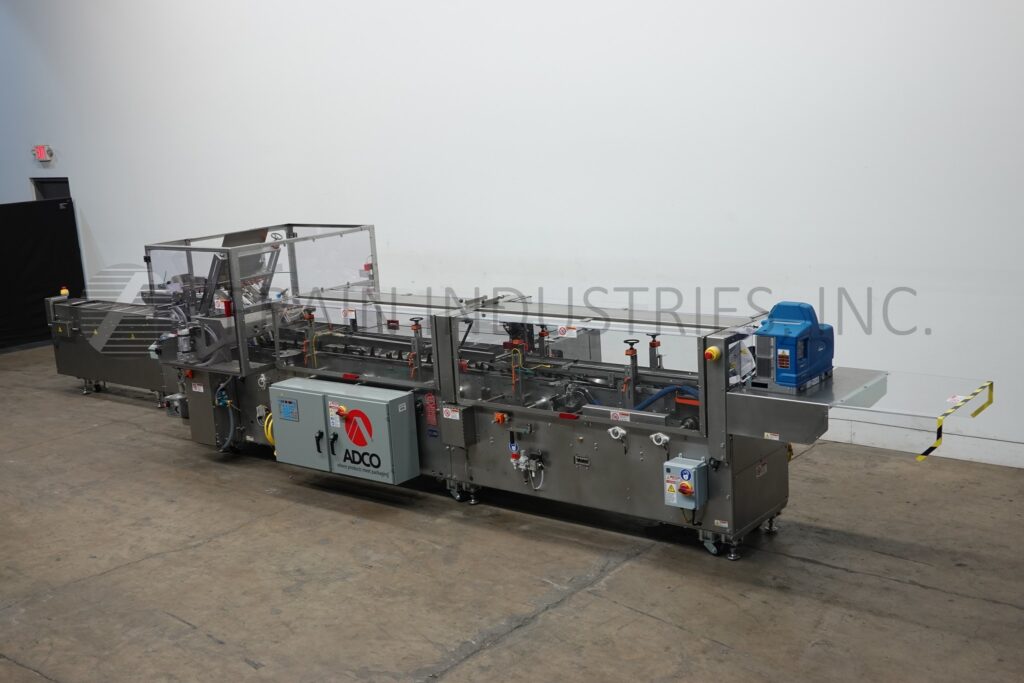

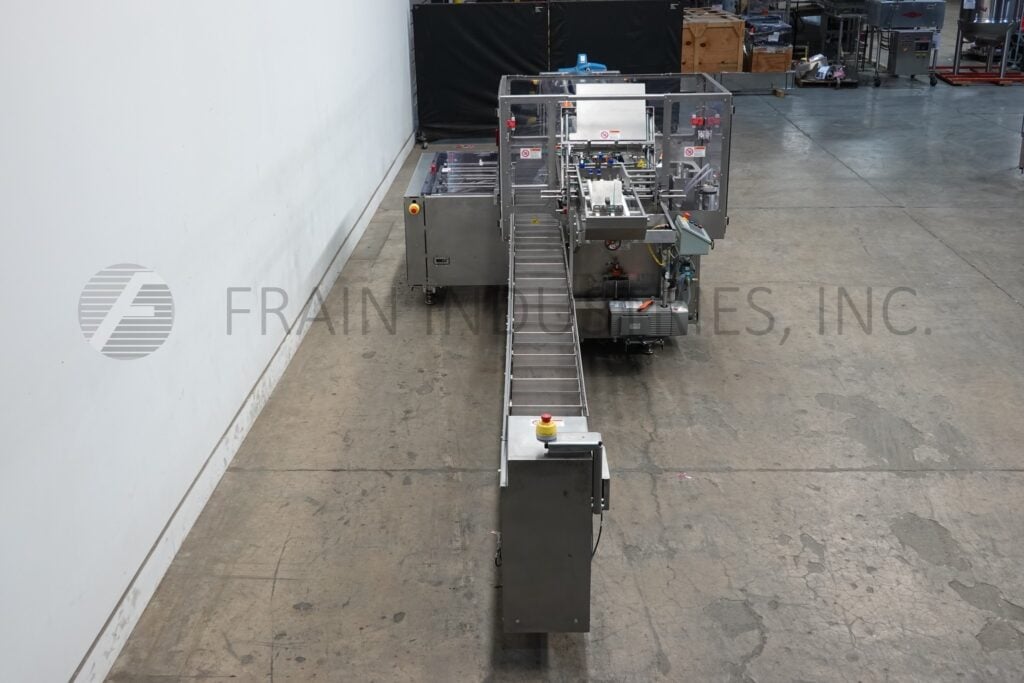

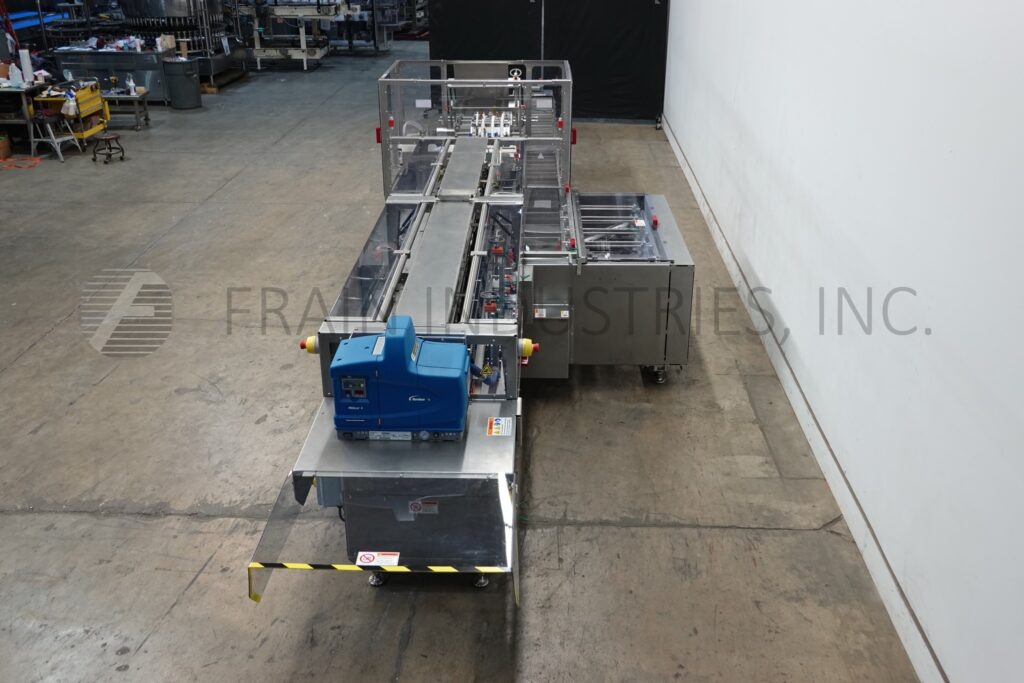

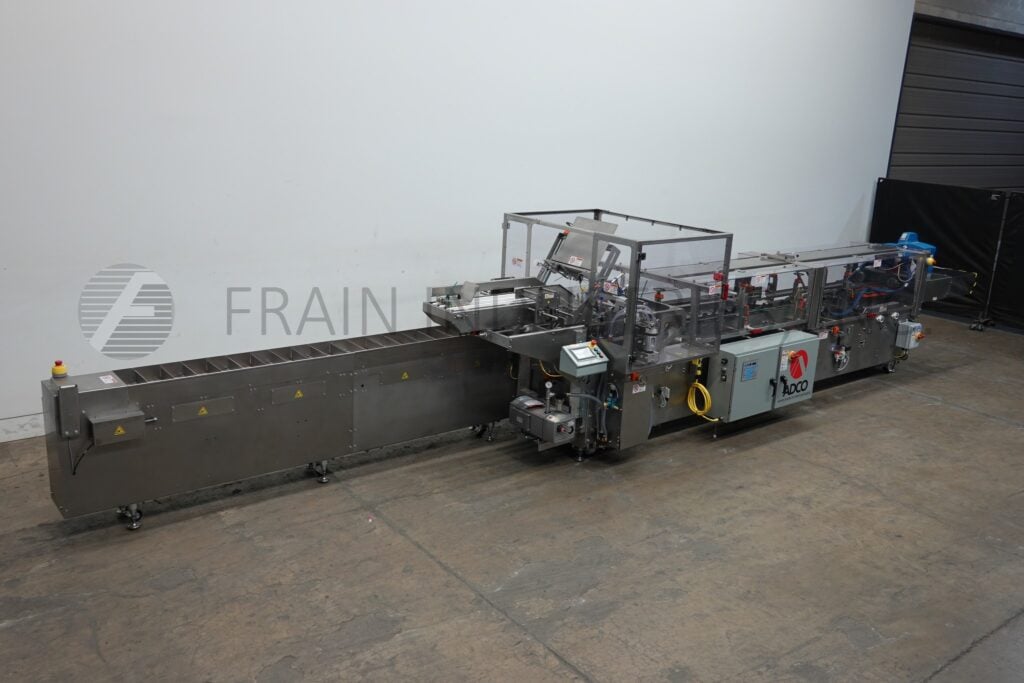

Adco, Model 15DBC105-SS, Automatic, horizontal, continuous motion, stainless steel, hot melt glue cartoner. Rated from 25 to 120 cartons per minute – depending on materials and application. Carton size range: 1" to 9½" in Length; ¾" to 4" in Width, 4½" to 12" in Depth. Equipped with adjustable bucket product in feed conveyor with 117" long load area, 46" long automatic blank carton magazine, (2) head rotary pic-n-place with pre-break and has (4) chains adjustable set on 12" centers with 3½" high lugs, top carton squaring device, barrel cam product loader, Nordson Problue hot melt glue system, major and minor flap closers, vacuum system with Siko adjustment gauges, statis light bar and 28" long dual side belt discharge conveyor. Control panel has A/B PLC controller with A/B Panelview touch screen HMI and multiple e-stops. Mounted on stainless steel frame with interlock safety guarding and leveling legs.

OAD: 384"L x 93"W x 73"H
