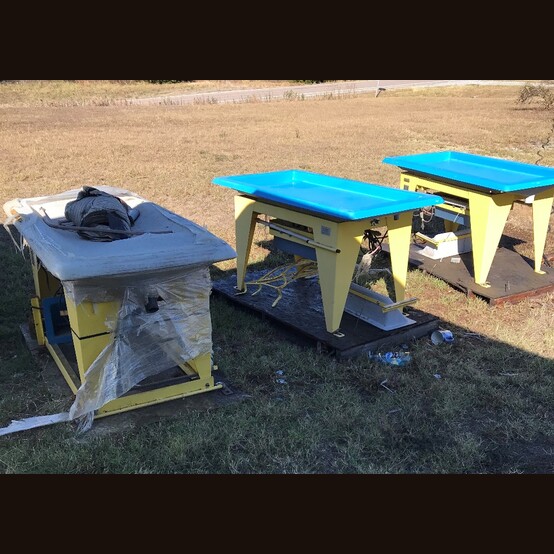

Action Instruments Mining #M7, 1,500 to 2,500 lb/hr Wave Table, Gold Concentrating Table, Never Used (3 available)

Action Mining M7 Wave Tables

Quantity: 3 Units

• Make: Action Mining
• Model: M7
• Type: Micron Mill Wave Table
• Year: 2013
• Condition: 3 Unused - Still on Original Pallet

• General Model Specifications:
  • Capacity: 1,500-2,500 Lbs. of Head Ore Material Per Hour
    • Recovery of Gold Particles: Between 10 Mesh and Microscopic
      • 80-99% of Gold Recovery from Classified Black Sands
      • 92-99% Gold Recovery From Small Batches of Classified Black Sands
  • Water Requirements: 5-12 GPM
    • 2 Adjustable Water Spray Bars
  • Table Top and Hopper Constructed of Fiberglass
    • Vacuum-Sealed and Gel-Coated in Blue Finish
    • Adjustable Table Top
  • Drive: 0.5HP Electric Motor Drive
  • Voltage: 110VAC
  • Frequency: 60 Hz
  • Steel Frame with Yellow Powder Coated Epoxy Paint

• Shipping Information:
  • Dimensions:
    • Length: 61in (1.55m)
    • Width: 32in (0.81m)
    • Height: 39in (0.99m)
    • Weight: 409 lbs. (186 kg)

• Location: South Central USA
